PROGRAMMING

B–63004EN/02

4. INTERPOLATION FUNCTIONS

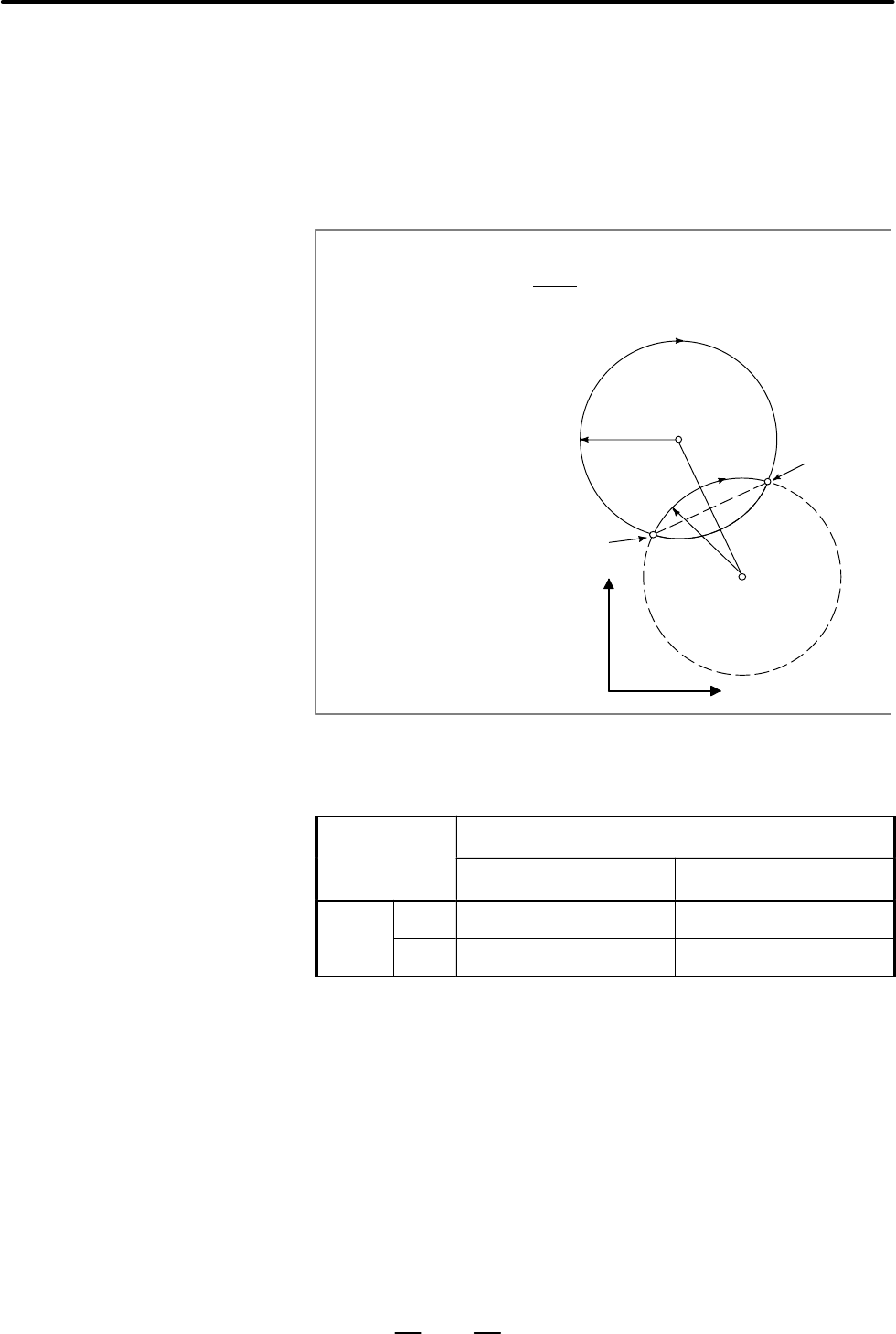

The distance between an arc and the center of a circle that contains the arc

can be specified using the radius, R, of the circle instead of I, J, and K.

In this case, one arc is less than 180

°, and the other is more than 180° are

considered. An arc with a sector angle of 180

° or wider cannot be

specified. If Xp, Yp, and Zp are all omitted, if the end point is located at

the same position as the start point and when R is used, an arc of 0

° is

programmed

G02R ; (The cutter does not move.)

r=50mm

End point

Start point

r=50mm

For arc (1) (less than 180°)

G02 W60.0 U10.0 R50.0

F300.0 ;

For arc (2) (greater than 180°)

An arc with a sector angle of 180°

or wider cannot be specified

within a single block.

(2)

(1)

When the option for specifying arc radius R with nine digits is selected,

the valid radius range for circular interpolation is expanded as follows:

Input increments

Metric input Inch input

Incre- IS–B 0.001 to 999999.999 mm 0.0001 to 99999.9999 inch

ment

system

IS–C 0.0001 to 99999.9999 mm 0.00001 to 9999.99999 inch

D Arc radius

D Expanded valid range of

arc radius
