According to the machine type, set the values listed in the following
table:

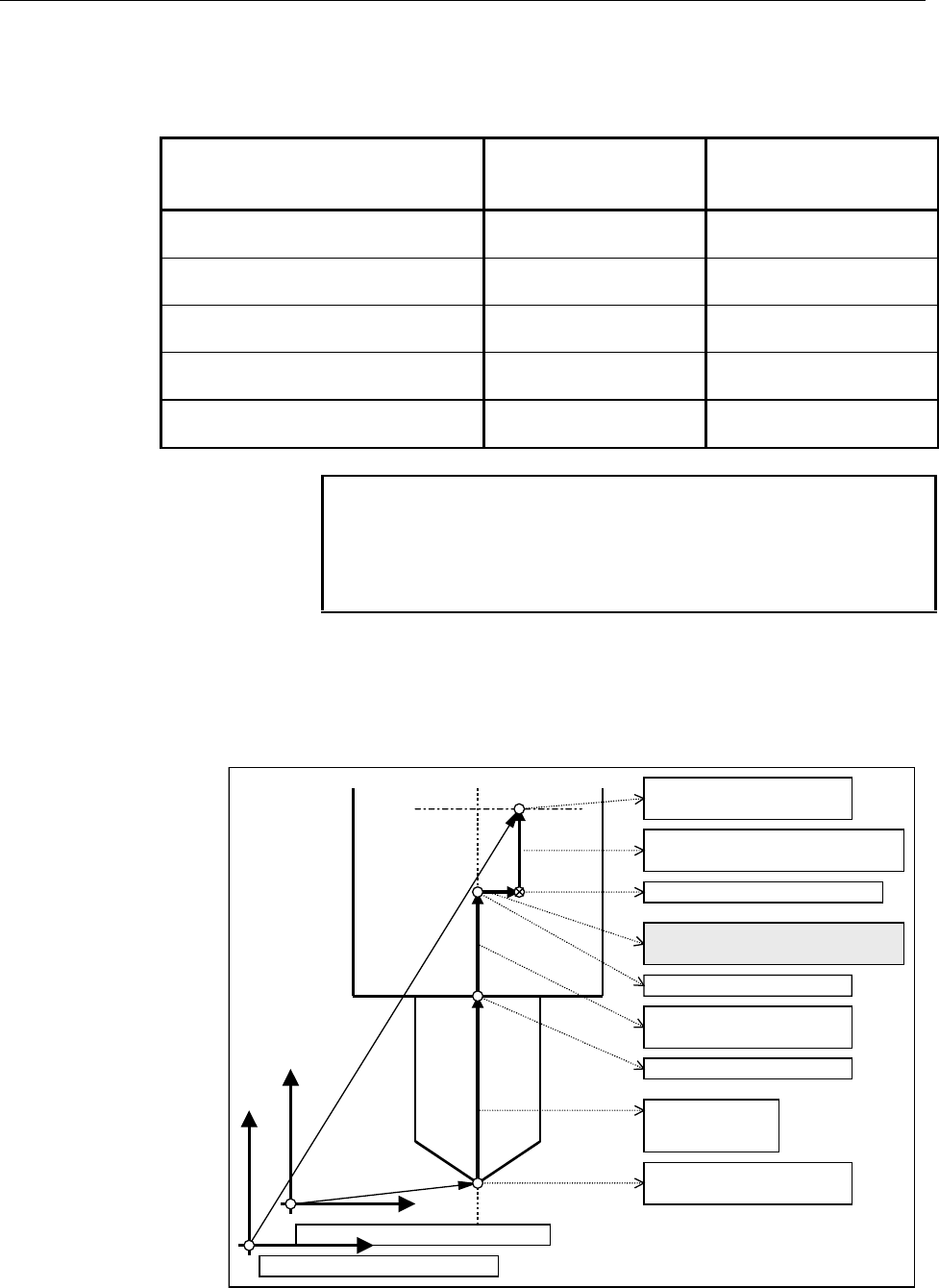

Table 14.17 (a) Setting the Tool Holder Offset and Rotation Center
Compensation Vector
Machine type Tool holder offset
Parameter No. 7548
Rotation center
compensation vector
Parameter No. 7519
(1) A- and C- axes. Tool axis is Z-axis. Length from tool mounting
position to A-axis center
Vector from A-axis center
to C-axis center
(2) B- and C-axes. Tool axis is Z-axis. Length from tool mounting
position to B-axis center
Vector from B-axis center
to C-axis center
(3) A- and B-axes. Tool axis is X-axis. Length from tool mounting
position to B-axis center
Vector from B-axis center
to A-axis center
(4) A- and B-axes. Tool axis is Z-axis.
B-axis is master.
Length from tool mounting
position to A-axis center
Vector from A-axis center
to B-axis center
(5) A- and B-axes. Tool axis is Z-axis.
A-axis is master.
Length from tool mounting
position to B-axis center
Vector from B-axis center
to A-axis center
NOTE
When using the spindle center compensation
described below, set the length from the tool
mounting position to the spindle center as the tool
holder offset.
- Spindle center compensation
Compensation of the spindle center is performed.
The amount of spindle center compensation is set in parameter No.
7520. Since parameter No. 7520 is an axis type parameter, the
compensation amount for three axes (X, Y, and Z) can be set in this
parameter.
Tool tip
Tool length
compensation
Second rotation axis
Rotation center compensation
i
No. 7519
j
First rotation axis center
Tool holder offset
j
Spindle center
Spindle center compensation
vector parameter (No. 7520
j
Machine coordinate origin
Workpiece coordinate origin
Fig. 14.17 (b) Spindle Center Compensation
