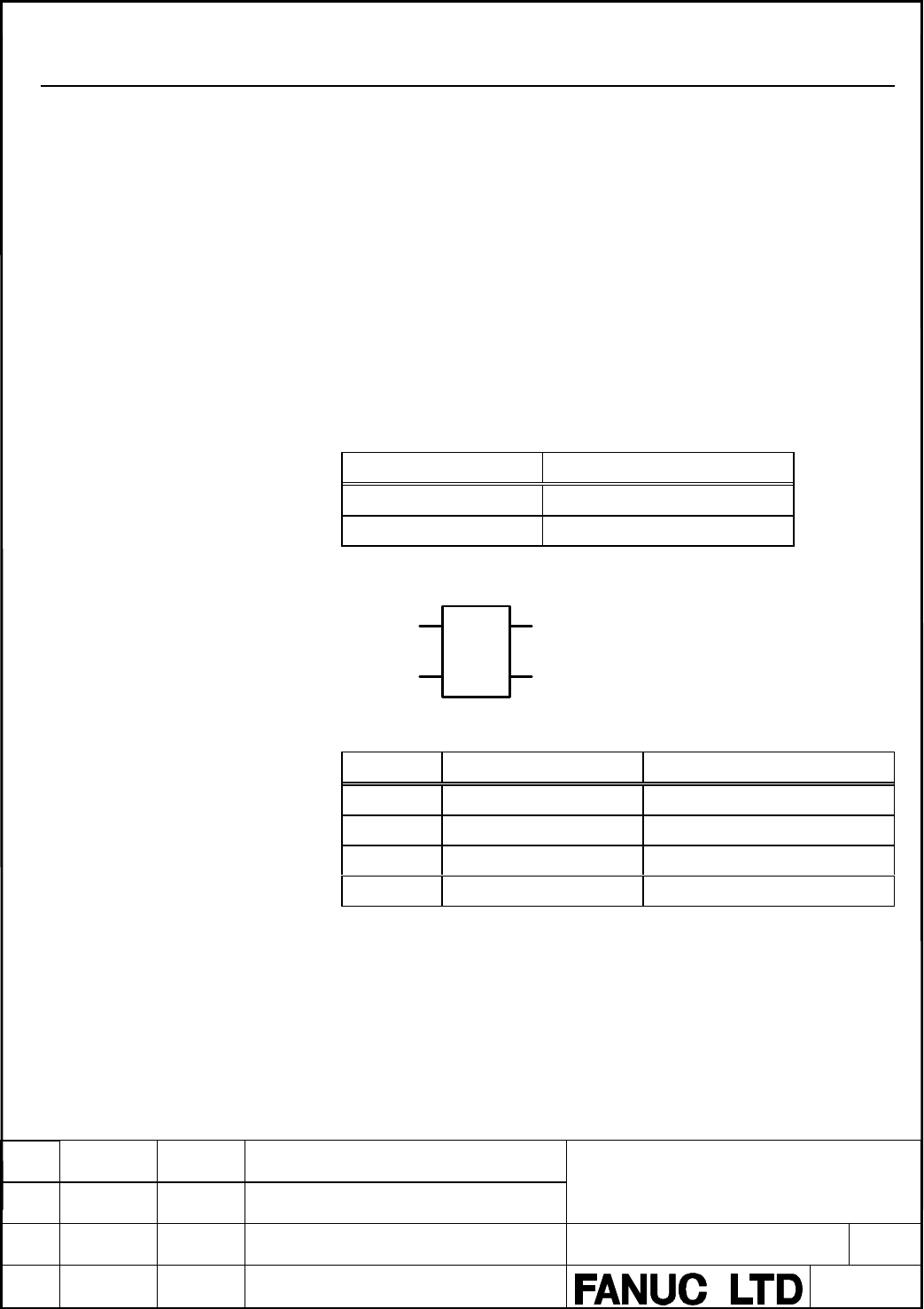

3.8.4 (type)_TO_UINT

Function

When EN is set to ON and is receiving the power flow,

(type)_TO_UINT converts the data of input parameter IN to UINT data

and outputs the result to output parameter Q.

If the conversion results in an overflow, the maximum value for that

data type is output to Q. In such a case, ENO is not output.

Furthermore, if the conversion results in an underflow, the minimum

value for that type is output to Q. Again, in such a case, ENO is not

output.

(type)_TO_UINT instructions

Name Explanation

INT_TO_UINT Converts from INT to UINT

DINT_TO_UINT Converts from DINT to UINT

Format

(type)

UINT

IN Q

(EN) (ENO)

??????? ???????

Parameters

Parameter Data type Meaning

EN BOOL Execution of conversion

IN INT, DINT Input data

ENO BOOL Normal end flag

Q UINT Result of conversion
