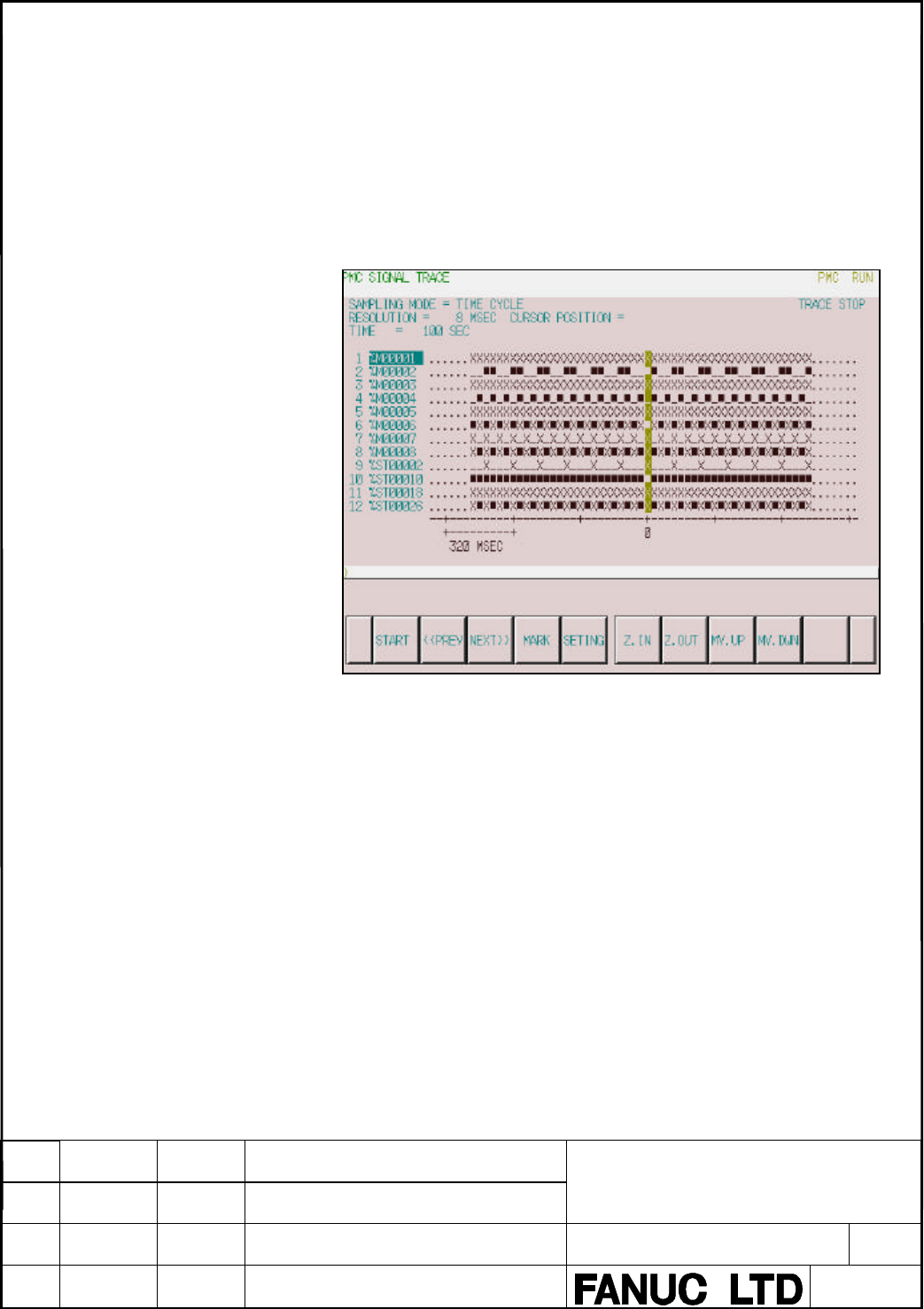

(3) ZOOM IN/ZOOM OUT OF WAVEFORM

Pushing [Z.IN] soft key magnifies the display of chart. Pushing [Z.OUT]

soft key reduces the display of chart. Pushing these soft keys also change the

scale value of the graduation on the graph. When trace is just finished, the

default zooming level was the most magnified level. In [Z.OUT] mode, gray

box is displayed as following screen example when the transitions of signal

cannot be expressed accurately enough. The limitation of [Z.OUT] displays

all of result of the trace in one page.

(4) EXCHANGE OF SAMPLING SIGNAL

Pushing [MV.UP] soft key exchanges the signal indicated by the signal

cursor for the signal one line above. Pushing [MV.DOWN] soft key

exchanges the signal indicated by the signal cursor for the signal one line

below. The result of the operation is cancelled by the execution of trace or

putting the power off. When you would like to preserve the order of

displayed signals against the executing or powering off, please change the

order on “SAMPLING ADDRESS” screen.
