5.6.5 Outputting to and Inputting from Floppy

When “FLOPPY” is selected for “DEVICE”, output to and input from a

floppy cassette or a handy file that is connected via RS-232C are

enabled.

- FUNCTION

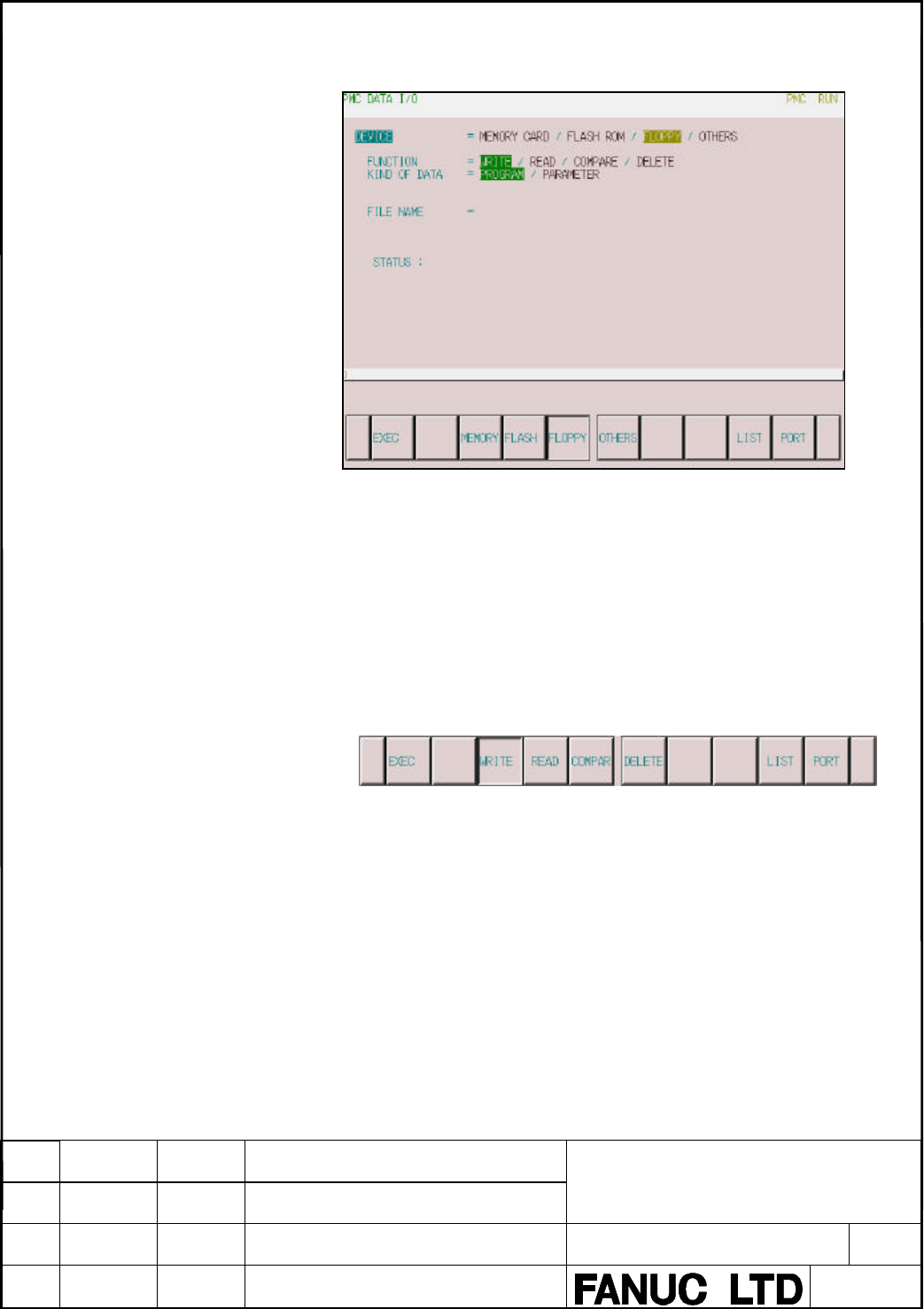

The available data input/output commands are displayed. Select the

desired command by moving the cursor horizontally to that command or

select it with the corresponding soft key.

Soft keys displayed when the question selection cursor is positioned to

“FUNCTION”

Explanation of options

WRITE: Outputs data from the PMC to a floppy disk or a

handy file.

READ: Inputs data from a floppy disk or a handy file to the

PMC.

COMPARE: Compares the sequence program on the PMC with

those on a floppy disk or a handy file.

DELETE: Deletes a file from a floppy disk or a handy file.
