B-64120EN/01 4.DESCRIPTION OF PARAMETERS

- 307 -

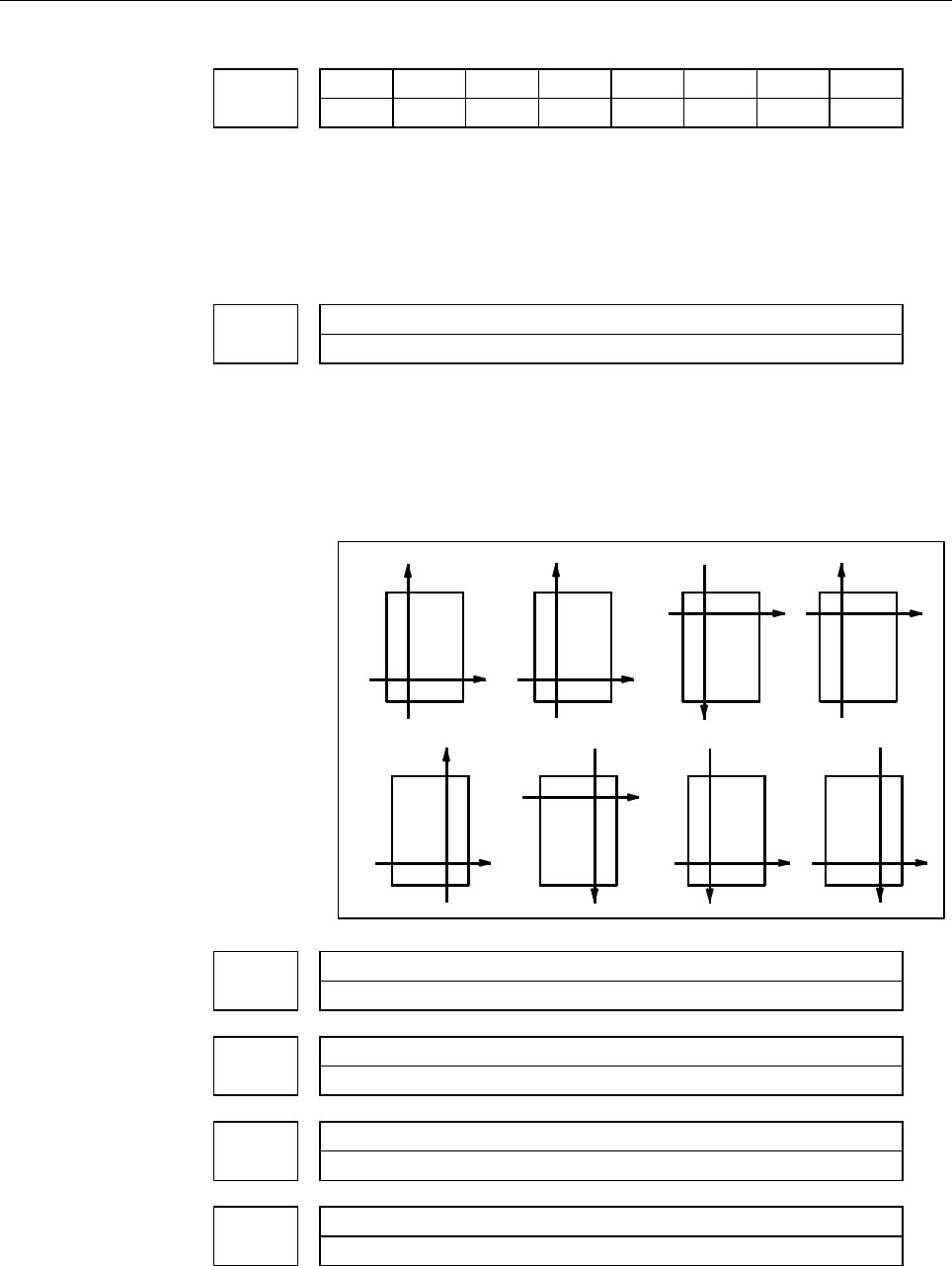

#7 #6 #5 #4 #3 #2 #1 #0

6503

MST

[Data type] Bit

MST In check drawing (animated simulation) using the dynamic graphic

display function, the M, S, and T code commands in the program are:

0 : Ignored.

1 : Output to the machine in the same way as in normal operation.

Drawing coordinate system

6510

[Data type] Byte

[Valid data range] 0 to 7

This parameter specifies the drawing coordinate system for the

graphic function.

The following show the relationship between the set values and the

drawing coordinate systems.

Setting value = 0 Setting value = 1 Setting value = 2 Setting value = 3

Setting value = 4 Setting value = 5 Setting value = 6 Setting value = 7

6511

Right margin in solid drawing

6512

Left margin in solid drawing

6513

Upper margin in solid drawing

6514

Lower margin in solid drawing

[Data type] Word

[Unit of data] Dot
