1221 Workpiece zero point offset value in workpiece coordinate system 1 (G54)

1222 Workpiece zero point offset value in workpiece coordinate system 2(G55)

1223 Workpiece zero point offset value in workpiece coordinate system 3(G56)

1224 Workpiece zero point offset value in workpiece coordinate system 4 (G57)

1225 Workpiece zero point offset value in workpiece coordinate system 5 (G58)

1226 Workpiece zero point offset value in workpiece coordinate system 6 (G59)

[Data type] 2-word axis

[Unit of data]

Input increment IS-A IS-B IS-C Unit

Linear axis (input in mm) 0.01 0.001 0.0001 mm

Linear axis (input in inches) 0.001 0.0001 0.00001 inch

Rotation axis 0.01 0.001 0.0001 deg

[Valid data range] -99999999 to 99999999

The workpiece zero point offset values in workpiece coordinate

systems 1 to 6 (G54 to G59) are set.

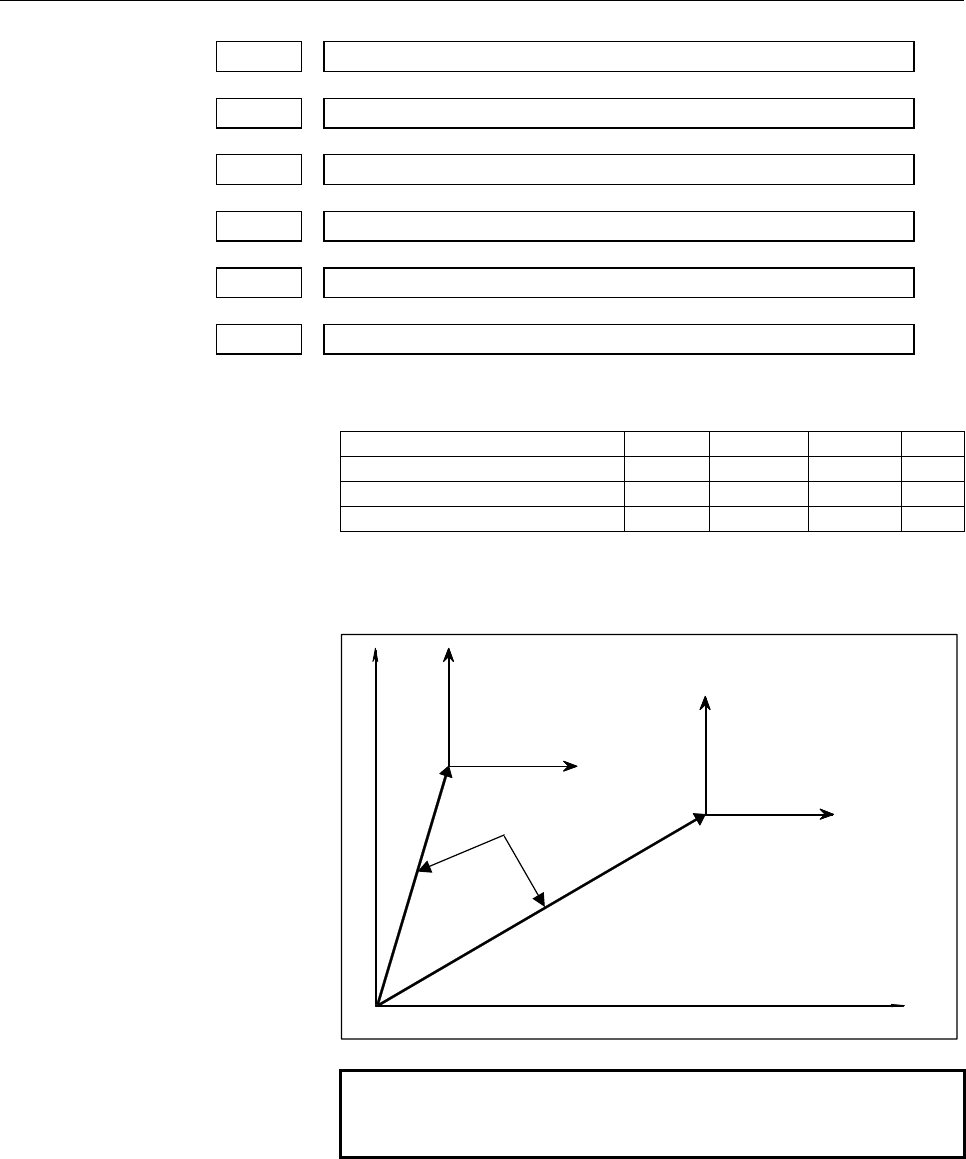

Workpiece coordinate system 1 (G54)

Workpiece zero point offset

Origin of machine coordinate system

Workpiece coordinate system 2 (G55)

NOTE

The workpiece origin offset can also be set using

the workpiece coordinate system screen.
