14. FUNCTIONS TO SIMPLIFY
PROGRAMMING
141
The pattern function means a function to punch multiple positions
conforming to a certain format by one-block command including G
function. This pattern function requires only one block command instead
of several-block commands, and thus, its program is simplified.
This control system prepares the following patterns as the standard
functions, which are used most frequently.

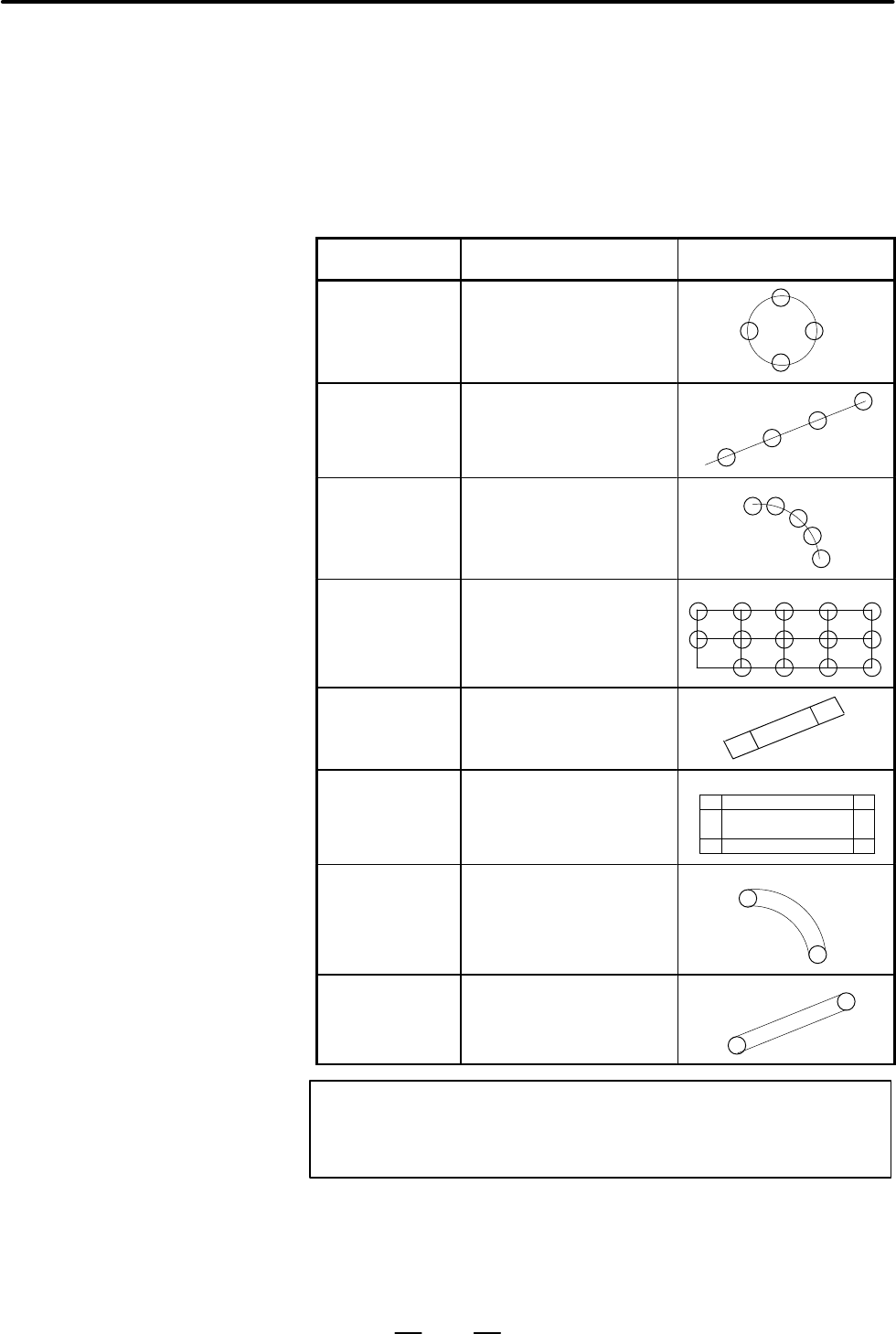

Table 14.1 Pattern functions
G code Functions Patterns
G26 Bolt hole circle
G76 Line at angle
G77 Arc
G78
G79
Grid
G86 Share proofs
G87 Square
G88 Radius
G89 Cut at angle
WARNING
G26, G76, G77, G78, G79, G86, G87, G88 and G89 are
one-shot G codes.
