14. FUNCTIONS TO SIMPLIFY

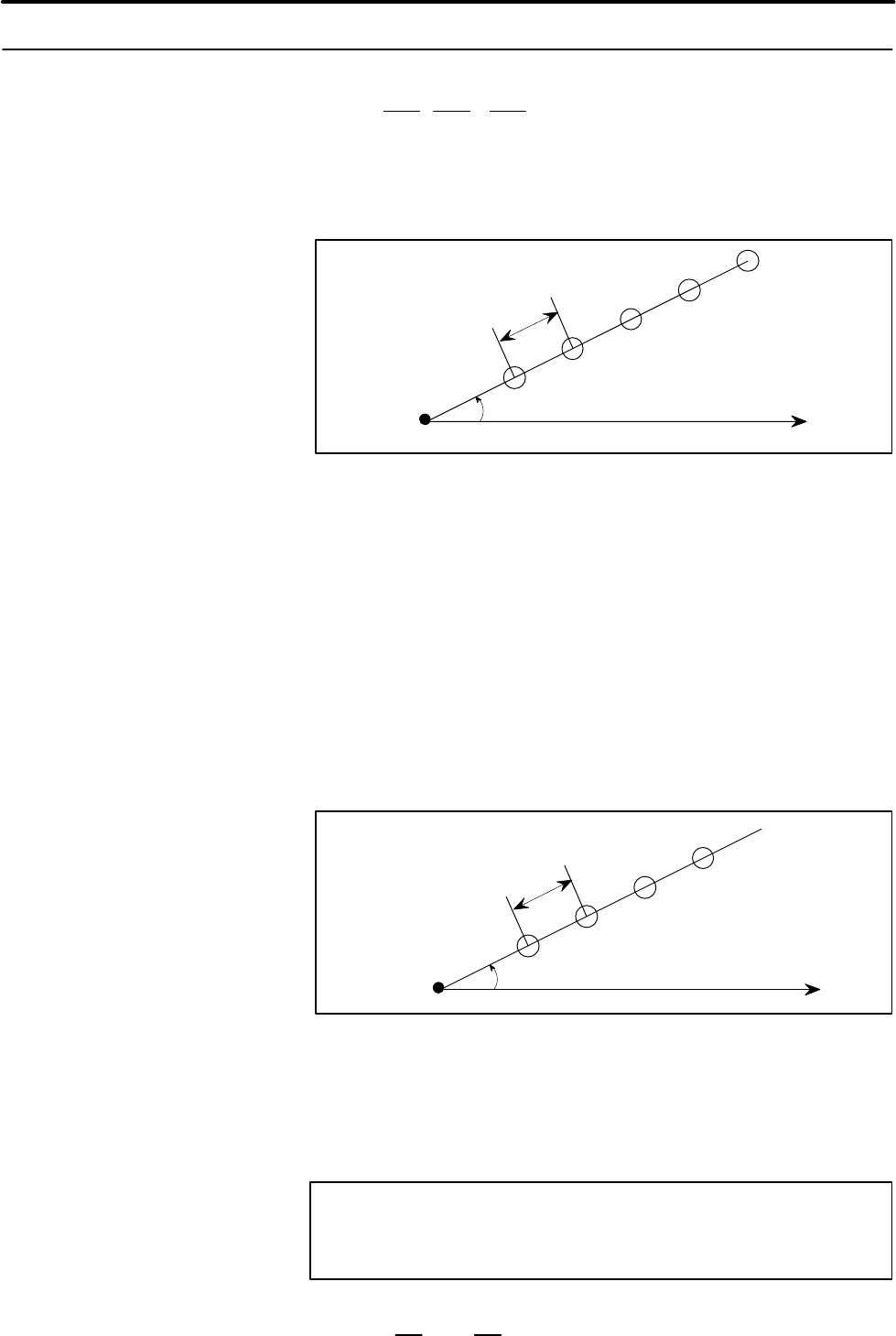

G76I d J θ K n ;
By the above command, punching is made at n pieces of points which lie
every intervals of d along the straight line which forms angle θ with
reference to the X axis, starting with the present tool position or the
position specified by G72 as the start point.
d : Punch point interval
The unit is input unit.
If this value is commanded with negative, punching is made in the
θ + 180
θ : Angle which is formed between the +X axis and the line connecting
the start point and punch points
The unit is input unit (deg), and the counterclockwise direction is
commanded by a positive number.
n : Number of punch points (1 to 9999)
N532 block may be commanded as
If it is not desired to punch the start point, command as
If the number of punch points is 0, alarm (No. 4503) is
Line at Angle (G76)
