14. FUNCTIONS TO SIMPLIFY
The hole position gap accompanied bending is compensated and the
drilling is performed.

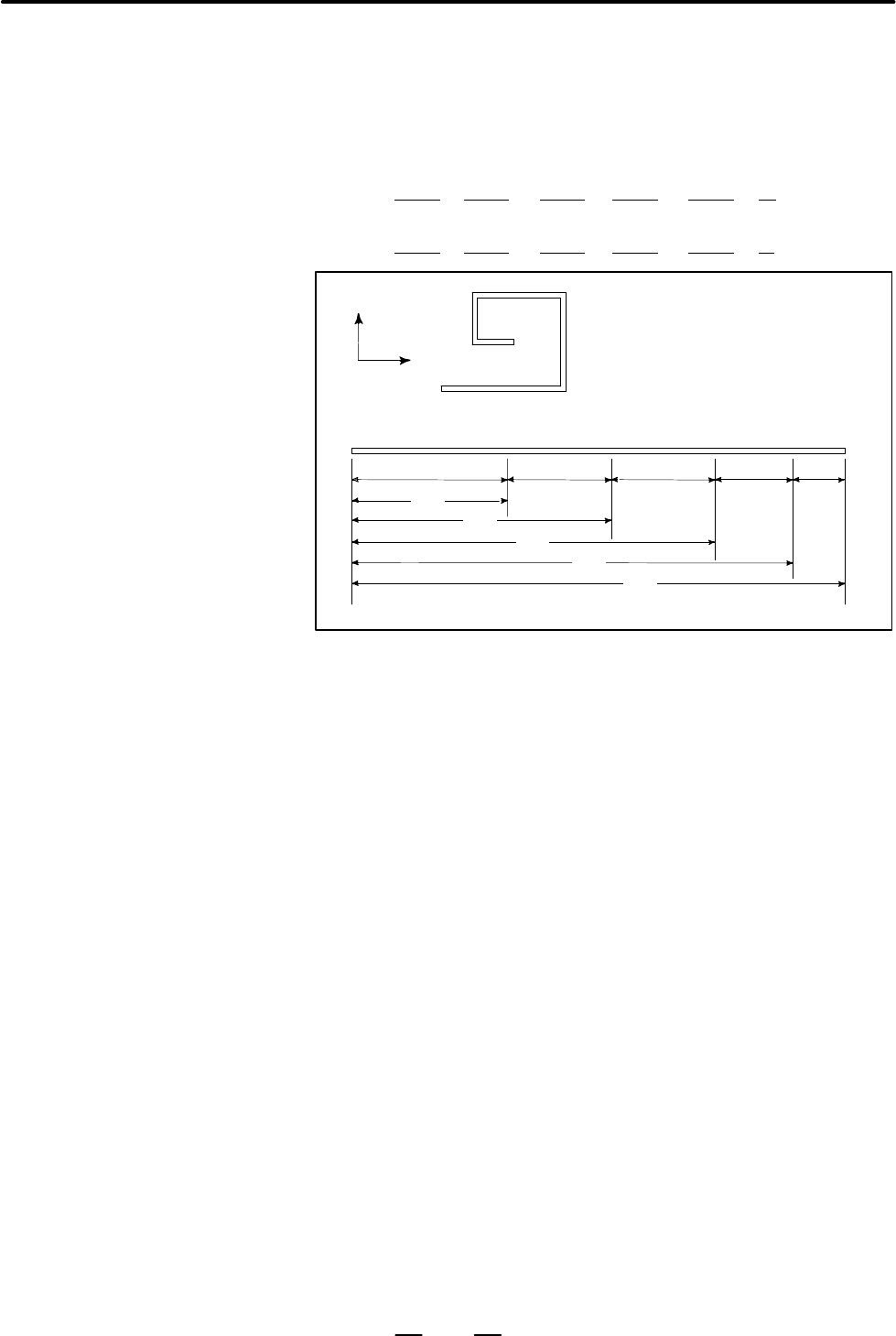

D Bending compensation for X axis direction
J X2 K X3 P X4 Q X5 R α ;
D Bending compensation for Y axis direction
J Y2 K Y3 P Y4 Q Y5 R β ;
AreaI AreaII AreaIII AreaI
α, β : These are called the bending coefficient.
The compensation amount attendant on a single bending is
Unit: input unit
X1 to X5 : The distance of X and Y axes direction from the standard
point is specified.
(Y1 to Y5) : Bending can be performed up to 4 times.
In a block after a bending command is sent, it is judged to which area
automatically designated the command value of the move command
belongs, thus allowing compensation in accordance with the bending
When bending compensation cancel is required.
1) Specify the cancel of bending compensation.
G38R0 ; ··· (Cancel of X axis direction)
G39R0 ; ··· (Cancel of Y axis direction)
2) Specify M02, M30.
It is possible to cancel even in the reset state according to reset, clear,
and emergency stop.
