PROGRAMMING
14. FUNCTIONS TO SIMPLIFY
PROGRAMMING
B–63684EN/01
180
This command specifies the punch operation from the current position or
the position specified by the G72 command to an end point at coordinates
(x, y) with a tool which is dx wide and dy long.
G45X y
Y y P dx Q dy R r D j ;
x : X coordinate of the end point
y : Y coordinate of the end point
dx : Dimension of the tool in the direction along which the punch
moves
dy : Dimension of the tool in the direction perpendicular to that in
which the punch moves
r : Direction in which a tool is shifted relative to the direction in
which the punch moves (can be omitted)
r = 0 : No shift (on the line programmed)
r < 0 : Right
r > 0 : Left
j : Width of a micro-joint (can be omitted)
j = 0 : No compensation
j < 0 : The setting reduces the dimension of the punched
portion in the direction the punch moves at both ends.
j > 0 : The setting increases the dimension of the punched
portion in the direction the punch moves at both ends.
NOTE
Enter data in the specified units.

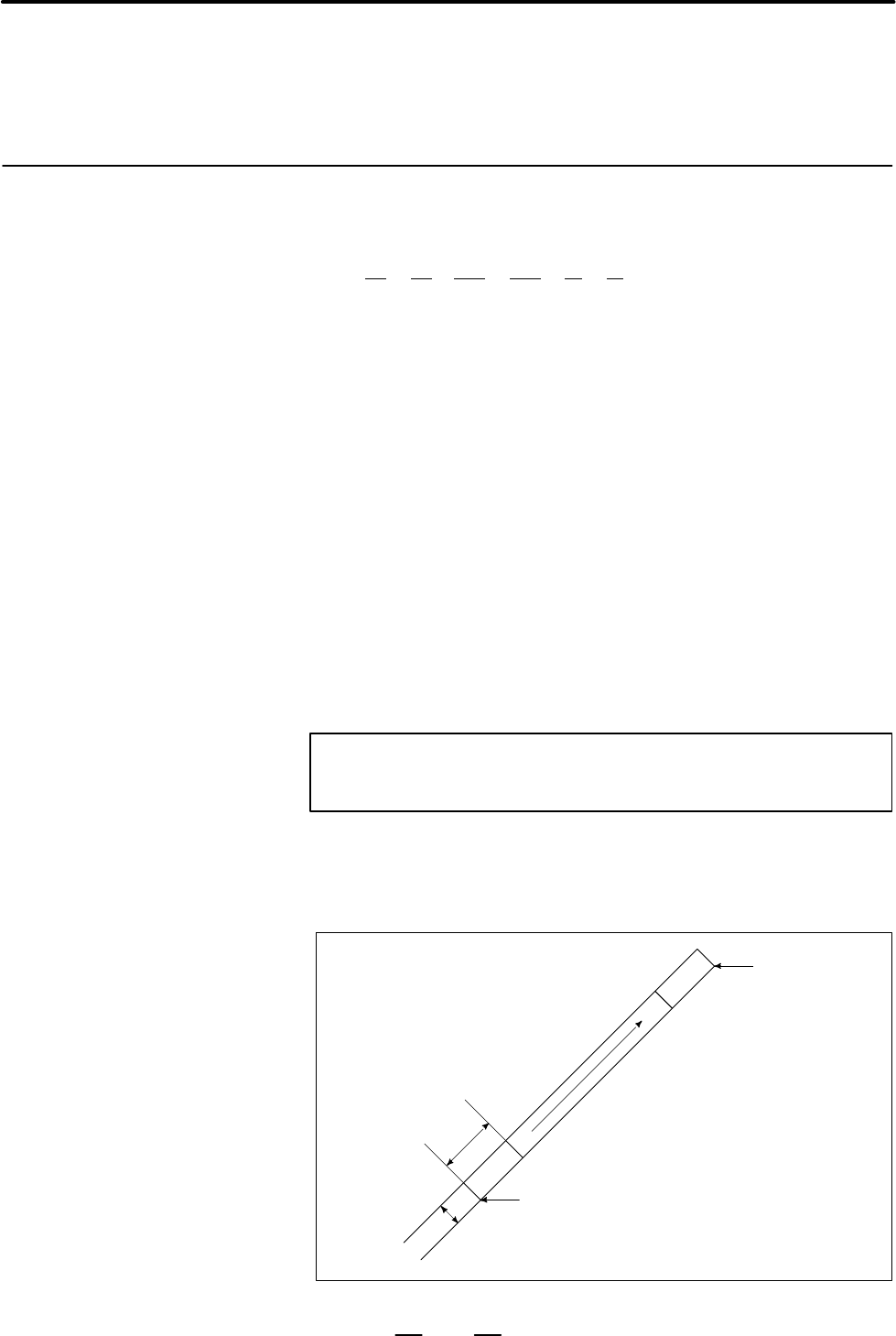

(1)G72G90X10.Y50. ;
G45X200.Y200.P20.Q10.R1 ;
(200, 200)
(10, 50)
20
10
14.7
LINEAR AND
CIRCULAR PUNCH
COMMAND
14.7.1
Linear Punch
Command (G45)
Examples
