PROGRAMMING15. COMPENSATION FUNCTION
B–63684EN/01
230
When G28, or G30.1 is specified in cutter compensation C mode, an
operation of FS15 type is performed if CCN (bit 2 of parameter No. 5003)
is set to 1.
This means that an intersection vector is generated in the previous block,
and a perpendicular vector is generated at an intermediate position. Offset
vector cancellation is performed when movement is made from the
intermediate position to the reference position. As part of restoration, an
intersection vector is generated between a block and the next block.

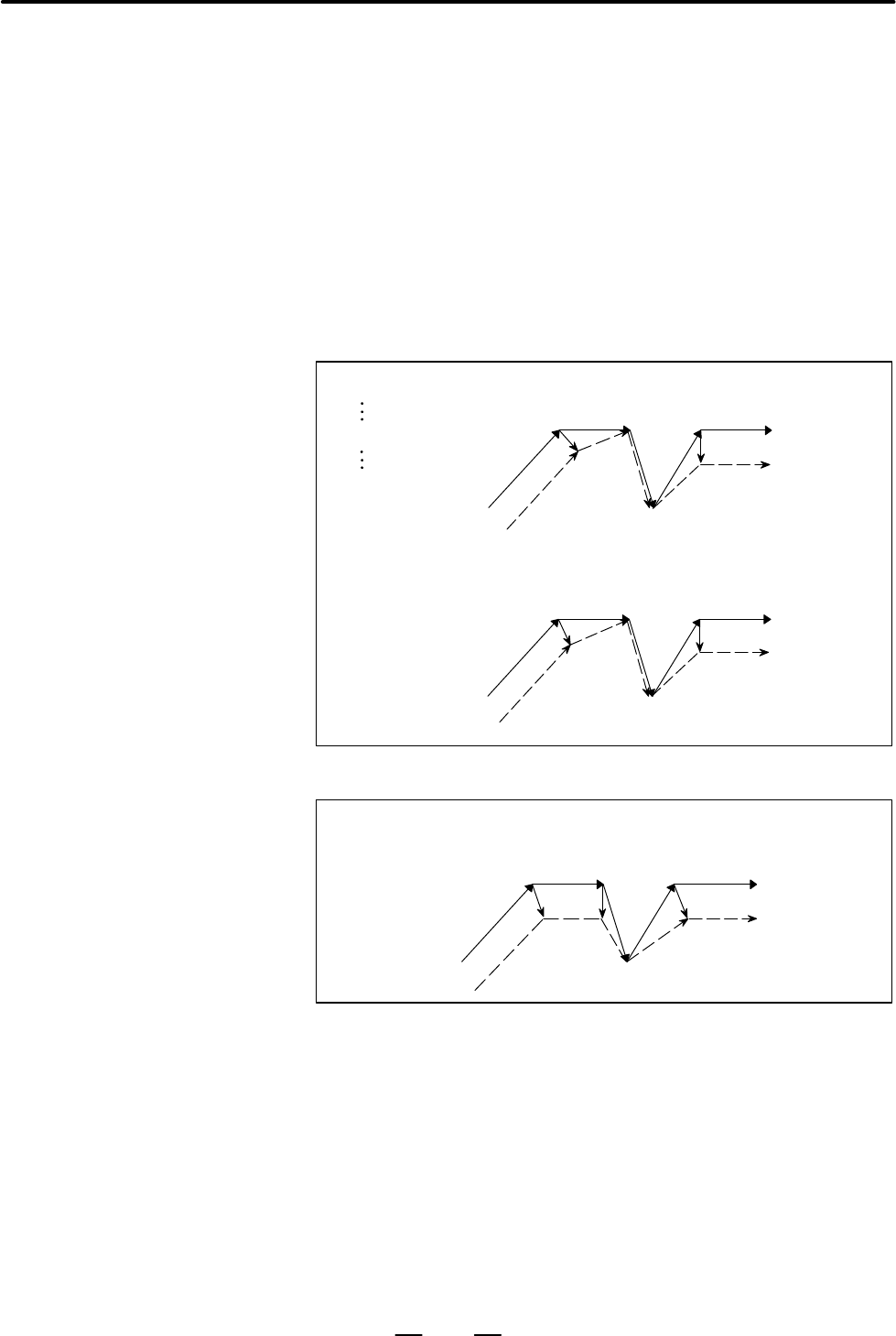

(1)G30.1 specified in offset mode (with movement to both an intermediate
position and reference position performed)
When CCN (bit 2 of parameter No. 5503) = 0
G00
[Type A]
(G42G01)
G01s
rr
s
s
Oxxxx;
G91G41_ _ _;
G30.1X40.Y0 ;
G00
[Type B]
s
(G42G01)
G01s
rr
s
s
Floating reference position
Floating reference position
s
Intermediate position
G30.1
Intermediate position
G30.1
When CCN (bit 2 of parameter No. 5503) = 1
G00
[FS15 Type]
s
(G42G01)
G01s
r
r
s
s
Floating reference position
Intermediate position
G30.1
D G28, or G30.1 command
in cutter compensation C
mode
