MAINTENANCE1. METHOD OF REPLACING BATTERY
The battery is connected in either of 2 ways as follows.
Method 1: Attach the lithium battery to the SVM.
Use the battery: A06B–6073–K001.
Method 2: Use the battery case (A06B–6050–K060).
Use the battery: A06B–6050–K061 or D–size alkaline battery.
Method Item Ordering specification
Method 1 Battery (Lithium battery) A06B–6073–K001
Method 2 Battery (4 pieces of D–size alkaline
D Attach the lithium battery to the SVM. (Method 1)
Built the lithium (A06B–6073–K001) battery in the SVM.
(1)Check the item 1 to 4 of ”Replacement procedure”.
(2)Remove a battery cover from SVM.

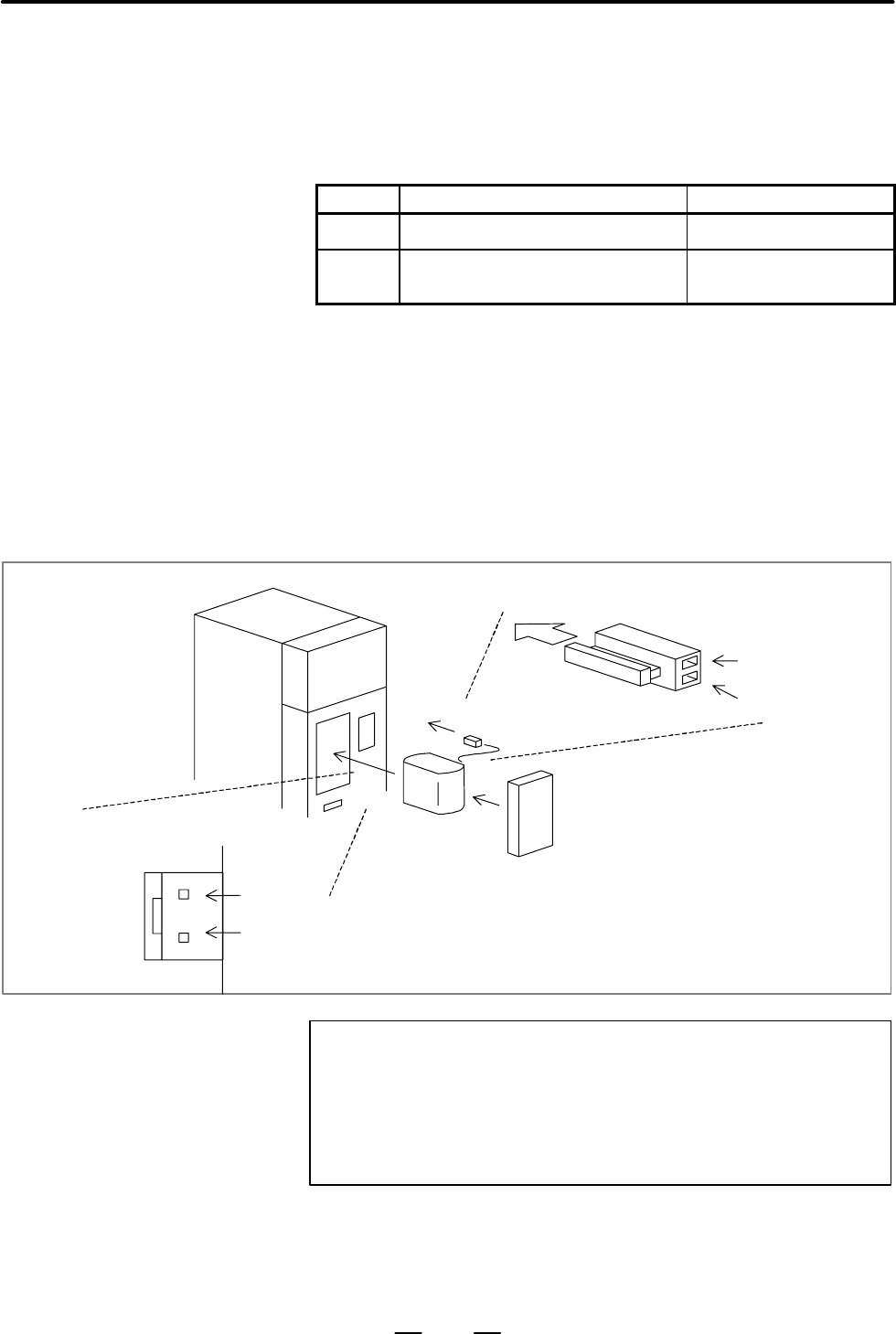

(3)Attach the battery as shown below.
(4)Re–attach the cover.
(5)Connect the connector of battery with CX5X or CX5Y of SVM.
D The connector of the battery can be connected with either
of CX5X and CX5Y.
D Pay attention that the battery cable doesn’t have a stretch
condition. If this cable is connected on a stretch condition,
a bad conductivity may be occurred.
D Replacement of batteries in the battery case. (Method 2)
Replace four D–size alkaline batteries in the battery case installed in
SERVO AMPLIFIER a
