Output Characteristics MODEL Other Page 1

Other
MODEL αiI 100/4000HV
Applicable amplifier : αiSP 100HV and αiPS 100HV
NOTE)
1. Optional speed range switching control (Y-Δ switching) is necessary.
2. Switching speed is 2000min
-1
.
3. The rated output is guaranteed at rated voltage(460-480V).
4. This is new output characteristics. If you adopt this motor, please let us know as soon as
possible, because it takes a few months to develop the spindle parameter.
0
200
400
600
800
1000
1200
1400
0 1000 2000 3000 4000
0
20
40
60
80
100
120
140
160
0 1000 2000 3000 4000
100kW
0
200
400
600
800
1000
1200
1400
0 500 1000 1500 2000 2500 3000
0
20
40
60
80
100
120
140
160
0 500 1000 1500 2000 2500 3000
60kW
100kW
[kW]
[Nm]
[kW]
[Nm]
Motor speed [min
-1
]
Continuous
operating zone
Motor speed [min
-1
]
Continuous
operating zone

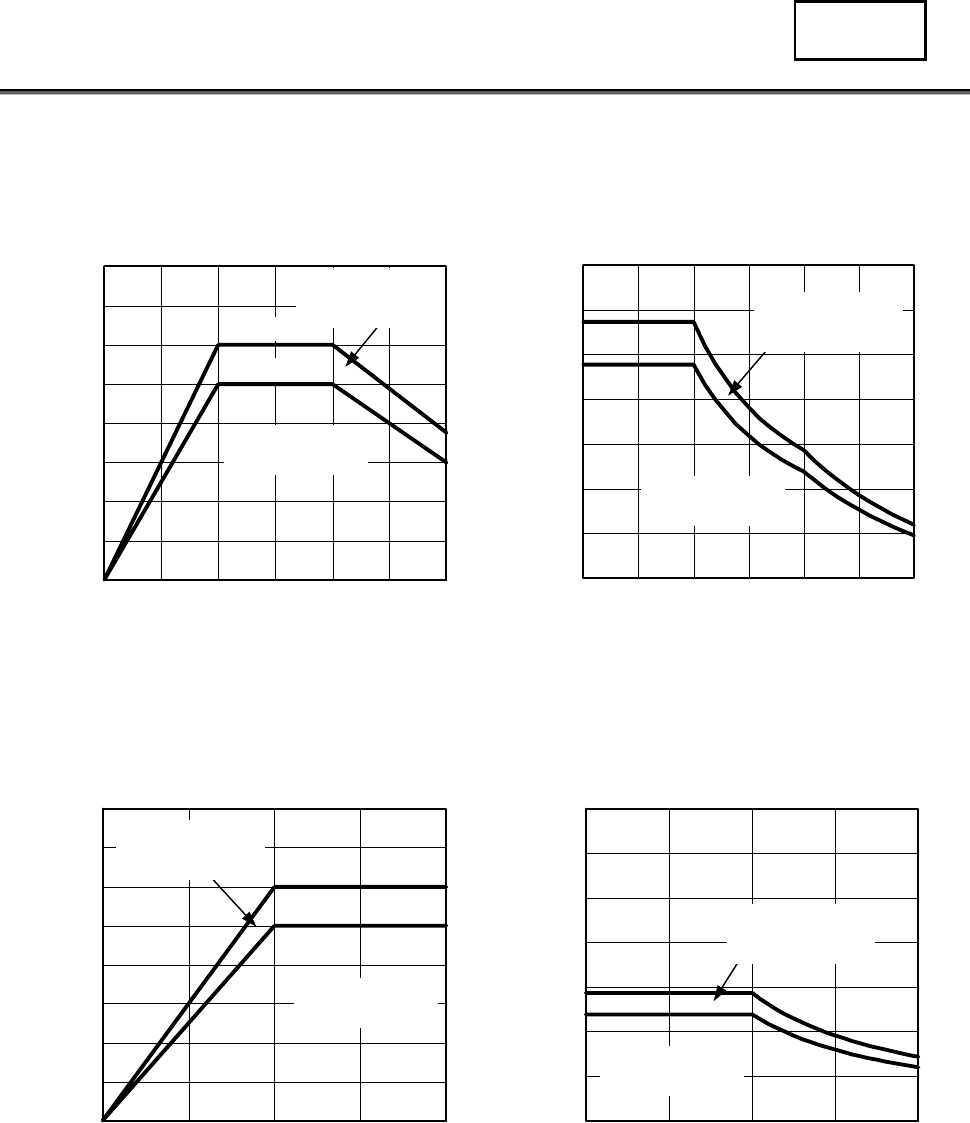

Low-speed winding output (Y connection)
Low-speed winding torque (Y connection)
Motor speed [min
-1
]
Continuous
operating zone
Motor speed [min
-1
]
Continuous
operating zone
High-speed winding output ( connection) High-speed winding output ( connection)
120kW
75kW
120kW
30min, S3 40%
Operating zone
30min, S3 40%
Operating zone
30min, S3 40%
Operating zone
30min, S3 40%
Operating zone
PLAN
A
A-221517/01
