PROGRAMMING17. AXIS CONTROL FUNCTIONS
It is possible to change the operating mode for two or more specified axes
to either synchronous operation or normal operation by an input signal
from the machine.
Synchronous control can be performed for up to four pairs of axes with
the Series 16, according to the parameter setting (parameter No. 8311).
The following operating modes are applicable to machines having two
tables driven independently by separate control axes. The following
example is of a machine with two tables driven independently by the Y
axis and V axis. If the axis names and axis sets that are actually being used
differ from those in the example, substitute the actual names for those

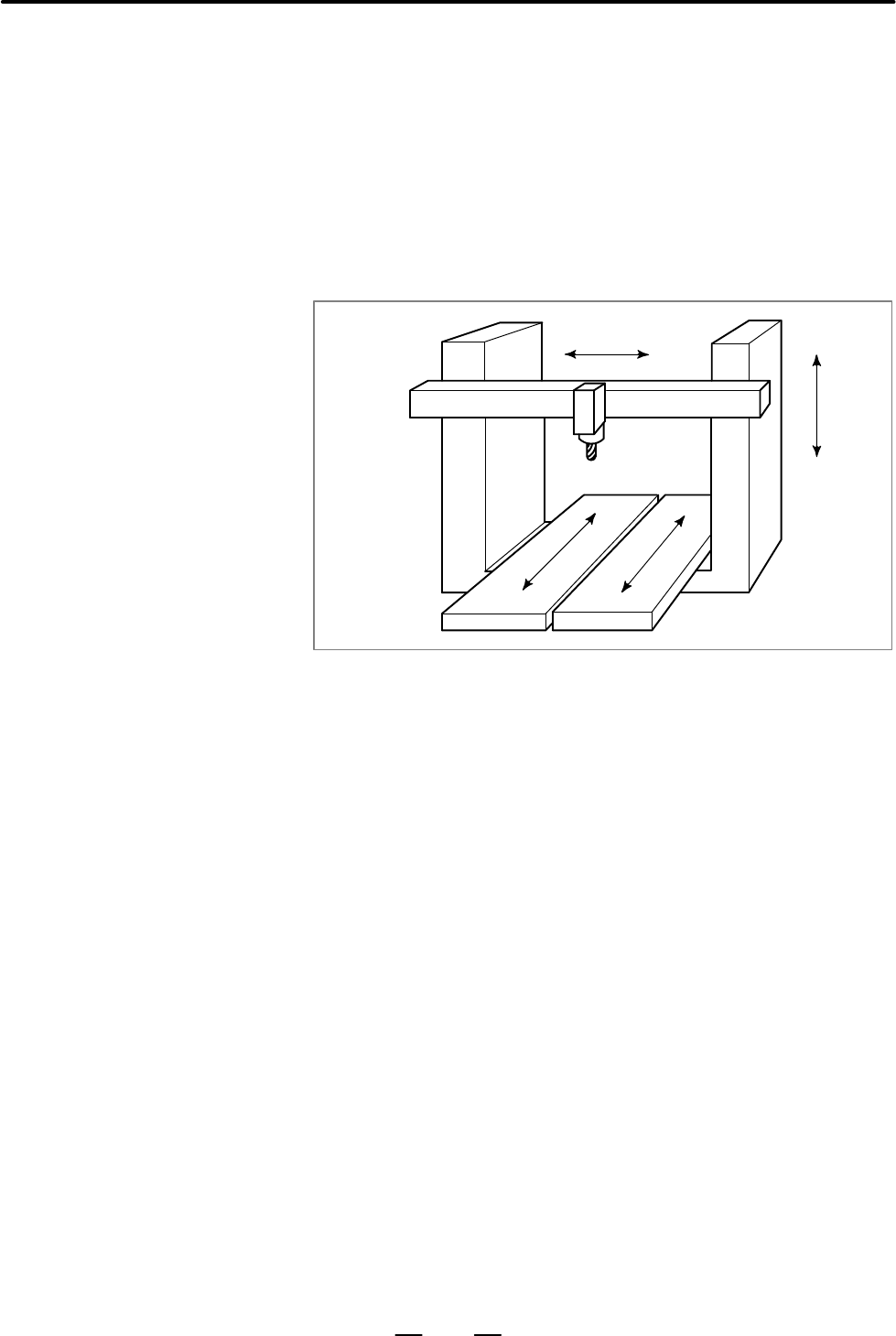

Fig.17.1 Example of axis configuration of the machine operated
by simple synchronous control
This mode is used for, for example, machining large workpieces that
extend over two tables.
While operating one axis with a move command, it is possible to
synchronously move the other axis. In the synchronous mode, the axis
to which the move command applies is called the master axis, and the axis
that moves synchronously with the master axis is called the slave axis.
In this example, it is assumed that Y axis is the master axis and V axis is
the slave axis. Here, the Y axis and the V axis move synchronously in
accordance with program command Yyyyy issued to the Y axis (master
Synchronous operation is possible during automatic operation, jog feed,
manual handle feed using the manual pulse generator, and incremental
D Synchronous operation
