OPERATION3. MANUAL OPERATION
In the jog mode, pressing a feed axis and direction selection switch on the
machine operator’s panel continuously moves the nozzle along the
selected axis in the selected direction.
The jog feedrate is specified in a parameter (No.1423)
The jog feedrate can be adjusted with the jog feedrate override dial.
Pressing the rapid traverse switch moves the nozzle at the rapid traverse
feedrate (No. 1424) regardless of the postiotion of the jog feedrate
override dial. This function is called the manual rapid traverse.
Manual operation is allowed for one axis at a time. 3 axes can be
selected at a time by parameter JAX (No.1002#0).
While a switch is held down,
the nozzle moves in the direc-
tion specified by the switch.

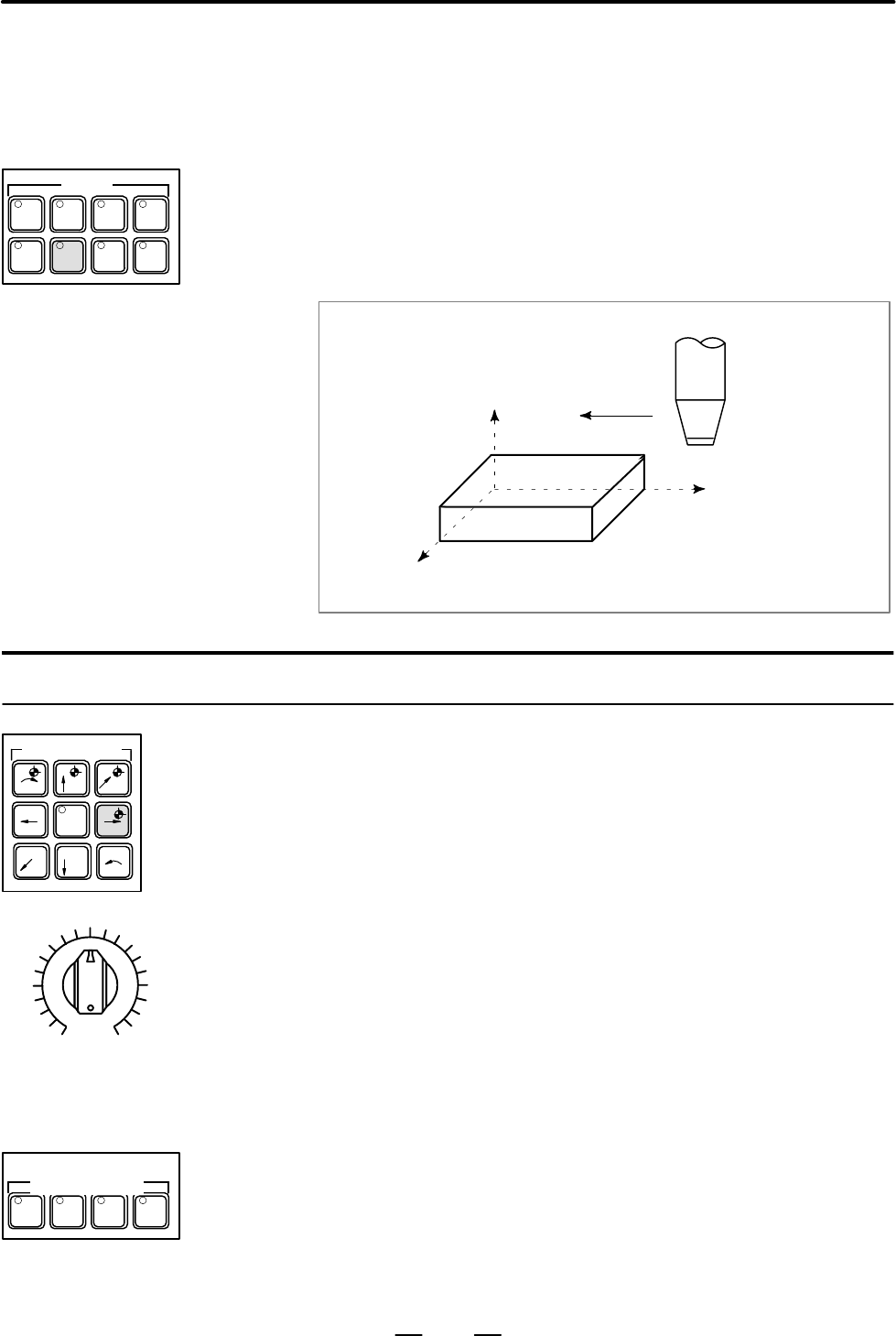

Procedure for JOG feed
1 Press the jog switch, one of the mode selection switches.
2 Press the feed axis and direction selection switch corresponding to the
axis and direction the nozzle is to be moved. While the switch is
pressed, the nozzle moves at the feedrate specified in a parameter (No.
1423). The nozzle stops when the switch is released.
3 The jog feedrate can be adjusted with the jog feedrate override dial.
4 Pressing the rapid traverse switch while pressing a feed axis and
direction selection switch moves the nozzle at the rapid traverse rate
while the rapid traverse switch is pressed. Rapid traverse override by
the rapid traverse override switches is effective during rapid traverse.
The above is an example. Refer to the appropriate manual provided
by the machine tool builder for the actual operations.
+C +Z +Y
AXIS DIRECTION Procedure
JOG FEED RATE OVERRIDE
