OPERATION

B–63664EN/02

6. SAFETY FUNCTIONS

541

When the beam tries to move beyond the stroke end set by the machine

tool limit switch, the nozzle decelerates and stops because of working the

limit switch and an OVER TRAVEL is displayed.

Deceleration

and stop

Stroke

end

Limit

switch

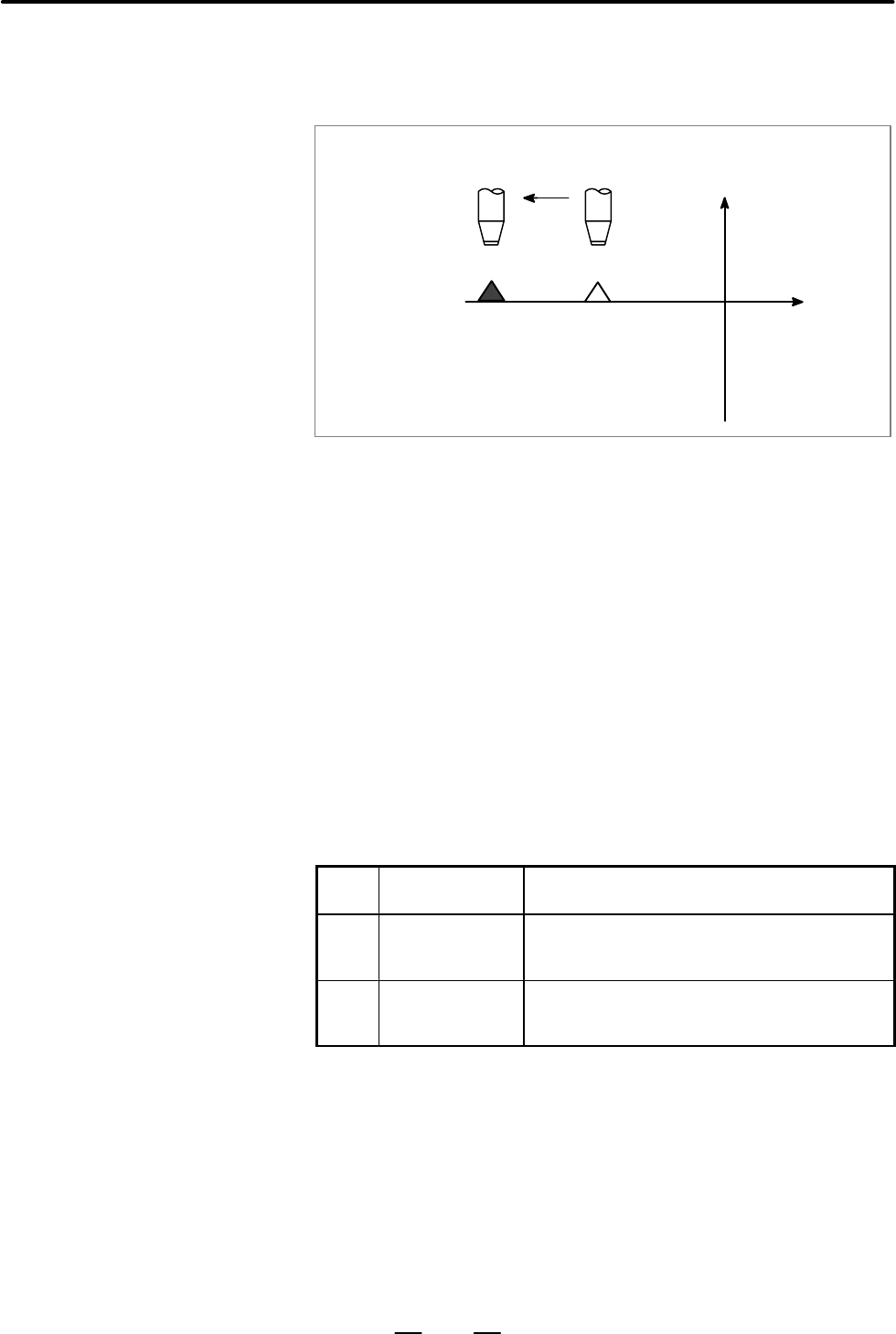

Fig.6.2 Overtravel

When the nozzle touches a limit switch along an axis during automatic

operation, the nozzle is decelerated and stopped along all axes and an

overtravel alarm is displayed.

In manual operation, the nozzle is decelerated and stopped only along the

axis for which the nozzle has touched a limit switch. The nozzle still

moves along the other axes.

Press the reset button to reset the alarm after moving the nozzle to the

safety direction by manual operation. For details on operation, refer to

the operator’s manual of the machine tool builder.

Alarm

No.

Message Description

506 Overtravel: +n

The nozzle has exceeded the hardware–speci-

fied overtravel limit along the positive nth axis

(n: 1 to 8).

507 Overtravel: –n

The nozzle has exceeded the hardware–speci-

fied overtravel limit along the negative nth axis

(n: 1 to 8).

6.2

OVERTRAVEL

Explanation

D Overtravel during

automatic operation

D Overtravel during

manual operation

D Releasing overtravel

Alarm
