PROGRAMMING

4. INTERPOLATION FUNCTIONS

B–63664EN/02

A tool offset must be specified before the G12.1 mode is set. No offset

can be changed in the G12.1 mode.

For a block in the G12.1 mode, the program cannot be restarted.

Polar coordinate interpolation converts the tool movement for a figure

programmed in a Cartesian coordinate system to the tool movement in the

rotation axis (C–axis) and the linear axis (X–axis). When the tool moves

closer to the center of the workpiece, the C–axis component of the

feedrate becomes larger and may exceed the maximum cutting feedrate

for the C–axis (set in parameter (No. 1422)), causing an alarm (see the

figure below). To prevent the C–axis component from exceeding the

maximum cutting feedrate for the C–axis, reduce the feedrate specified

with address F or create a program so that the beam (center of the beam

when cutter compensation is applied) does not move close to the center

of the workpiece.

L : Distance (in mm) between the beam center and workpiece center when the beam center is the nearest to

the workpiece center

R : Maximum cutting feedrate (deg/min) of the C axis

Then, a speed specifiable with address F in polar coordinate interpolation can be given by the formula below.

Specify a speed allowed by the formula. The formula provides a theoretical value; in practice, a value slightly

smaller than a theoretical value may need to be used due to a calculation error.

θ3

θ2

θ1

∆

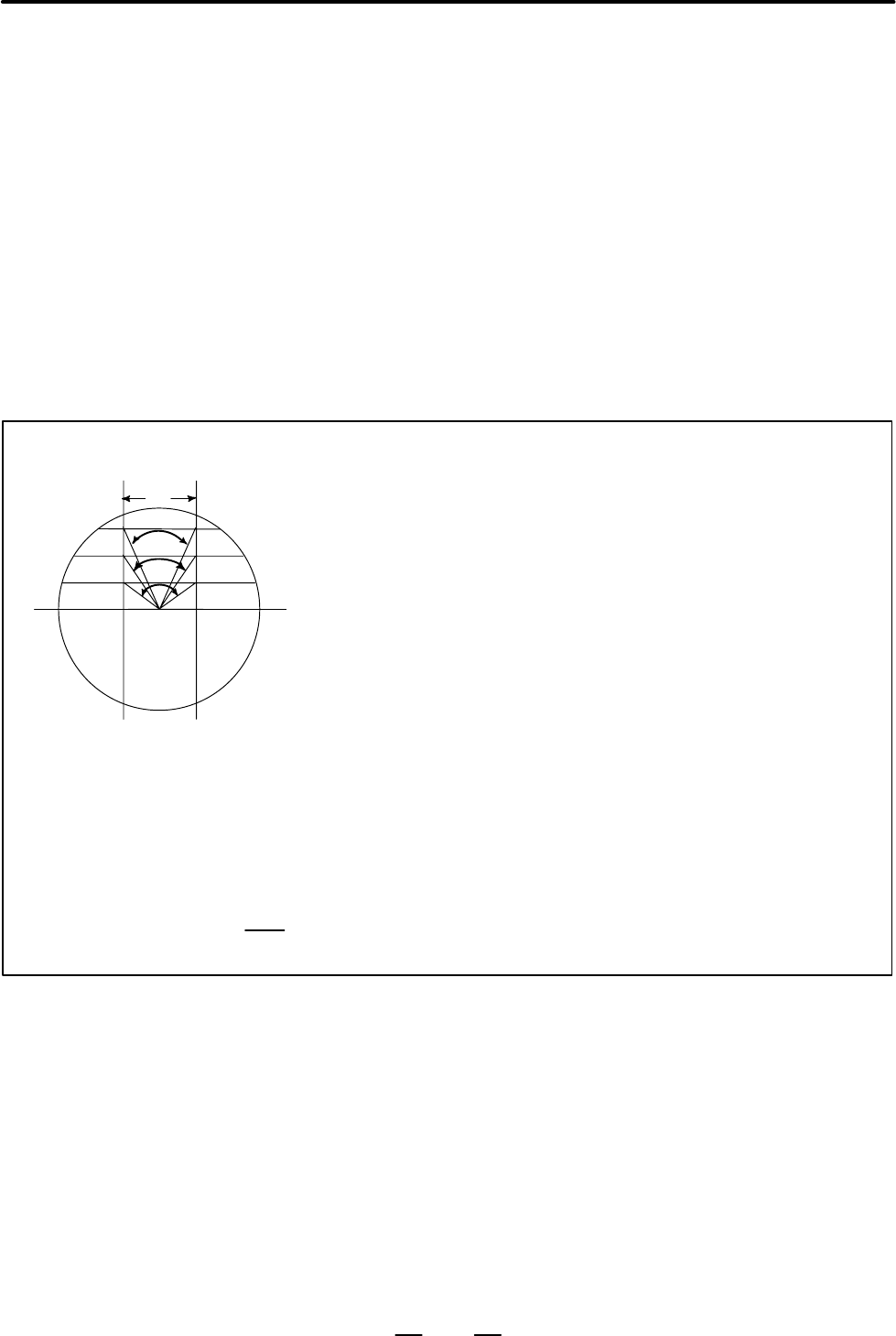

Consider lines L1, L2, and L3. ∆X is the distance the tool moves per time unit

at the feedrate specified with address F in the Cartesian coordinate system.

As the tool moves from L1 to L2 to L3, the angle at which the tool moves per

time unit corresponding to ∆X in the Cartesian coordinate system increases

fromθ1 toθ 2 to θ3.

In other words, the C–axis component of the feedrate becomes larger as the

tool moves closer to the center of the workpiece. The C component of the

feedrate may exceed the maximum cutting feedrate for the C–axis because

the tool movement in the Cartesian coordinate system has been converted to

the tool movement for the C–axis and the X–axis.

F < L × R ×

180

(mm/min)

WARNING

The function cannot be used with a three–dimensional machine.

D Tool offset command

D Program restart

D Cutting feedrate for the

rotation axis
