OPERATION12. GRAPHICS FUNCTION
B–63664EN/02
746

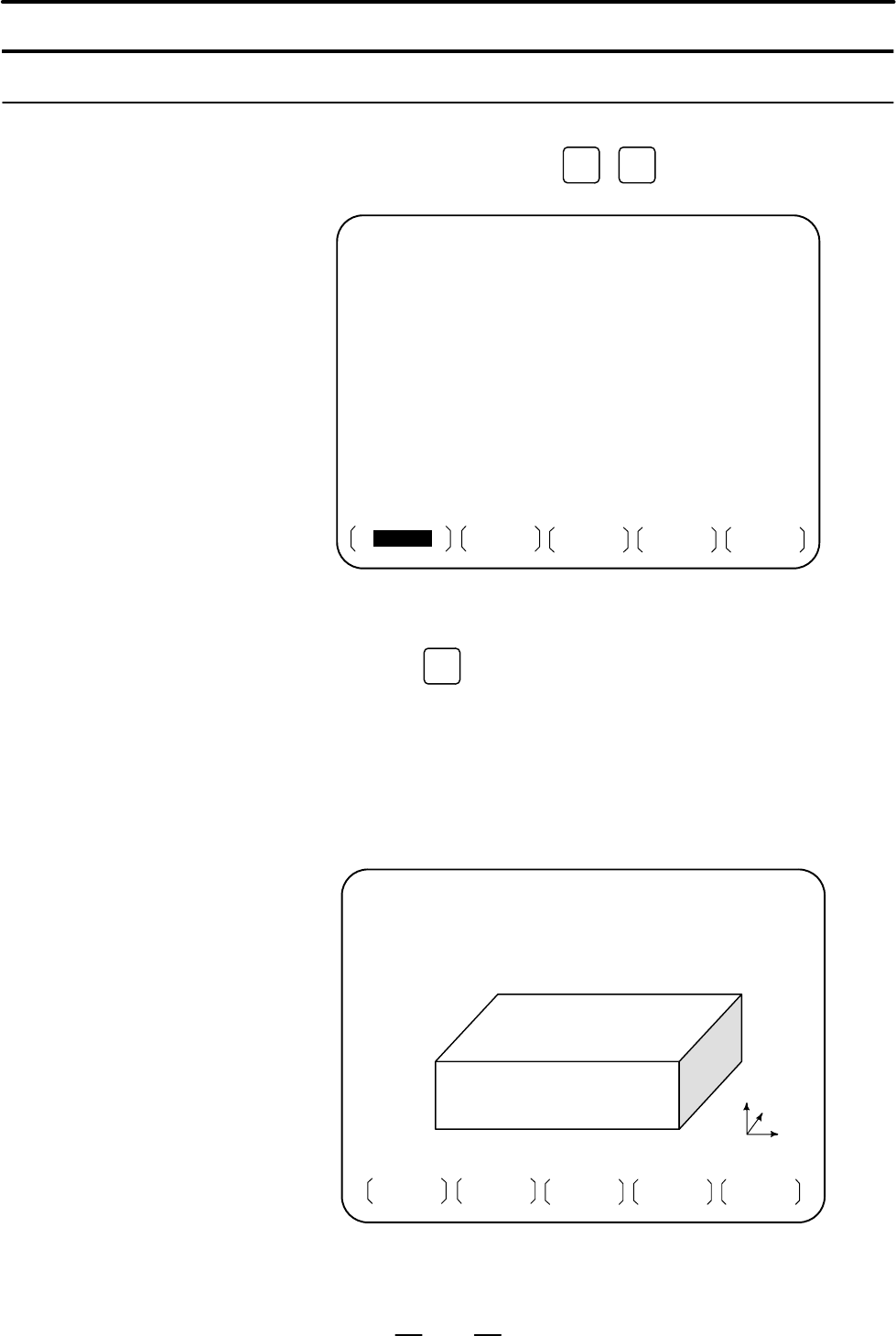

Solid graphics drawing procedure
1 To draw a machining profile, necessary data must be set beforehand.
So press the function key
GRAPH
(
CUSTOM
GRAPH
for the small MDI).
The screen of ”SOLID GRAPHIC (PARAMETER)” is displayed.
SOLID GRAPHIC (PARAMETER) O0000 N00003
BLANK FORM P=
X= 0.000 Y= 0.000 Z= 0.000
I= 120.000 J= 100.000 K= 40.000
TOOL FORM P= 2
R= 7.500 K= 0.000
PROJECTION P= 3
Q= 1 R= 0
INTENSITY P= 4
(0123456) Q= 2 R= 1
START SEQ.NO. N= 0
END SEQ.NO. N= 0
ANIM. SPEED N= 0
MDI
* * * * * * * * * *
14 : 42 : 17
>_
BLANK
EXEC
REVIEW
PARAM
2 Use a cursor key to move the cursor to an item to be set.
3 Input numerics for the item at the cursor using the numeric key.
4 Press the
INPUT
.
Input numerics can be set by these operations and the cursor moves to the
next setting item automatically. The set data is retained even if the power
is turned off.
See Explanations for details on settings.
5 To draw a blank figure, display the
SOLID GRAPHIC (BLANK)
screen by pressing soft key [BLANK] on the SOLID GRAPHIC
(PARAMETER) screen of step 1 above.
SOLID GRAPHIC (BLANK)
O1126 N1126
Z
Y
X
MEM
* * * *
* * * * * *
10 : 10 : 40
ANEW
–TILT
+TILT
–ROT
+ROT
6 Press soft key [ANEW]. This allows the blank figure drawing to be
performed based on the blank figure data set.
Procedure
D SOLID GRAPHIC
(BLANK)
