12. GRAPHICS FUNCTION
16 The machined figure can be drawn on the tri–plane view.
To draw a triplane view, press the rightmost soft key (next–menu key)
SOLID GRAPHIC (PARAMETER) screen of step 1 above, then
press soft key
[3–PLN] and [(OPRT)]. The SOLID GRAPHIC
(3–PLANE) screen appears.

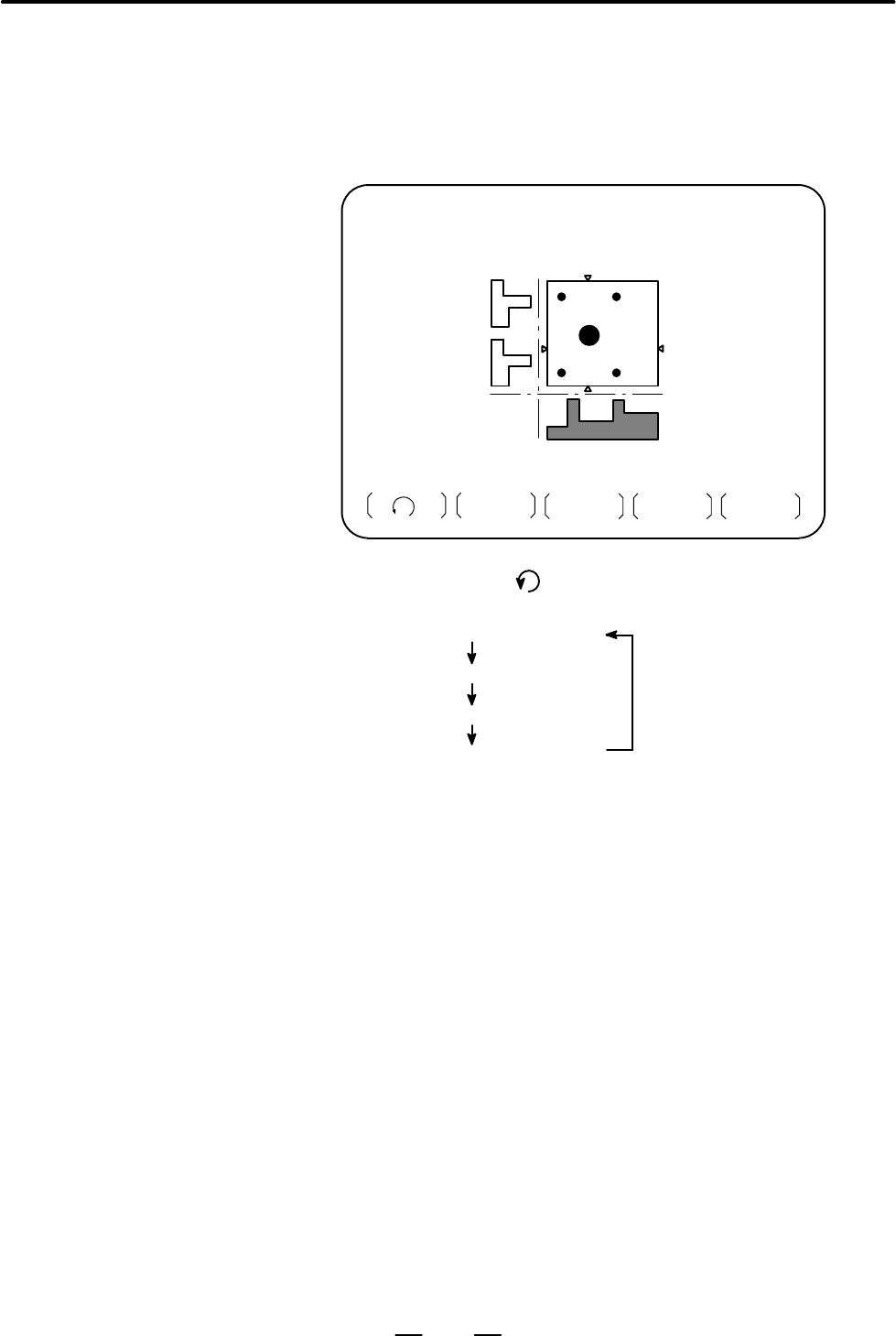

SOLID GRAPHIC (3–PLANE)
Each time soft key [ ] is pressed, the side–view drawings dis-
played change as follows.
Right view and rear view
Rear view and left view
Left view and front view
Front view and right view
18 The sectional position of side view can be changed by the soft keys
←], [→], [↑], and [↓].
With the sectional position of the left/right side view, the marks
B indicating the sectional position can be moved using the soft keys
←] and [→].
With the sectional position of rear/front side view, the marks
" and A
indicating the sectional position can be moved using the soft keys [↑],
↓]. Keep the keys depressed to change sectional/views
D Triplane view drawing
