OPERATION12. GRAPHICS FUNCTION
Specify the intensity of the drawing screen when performing drawing on
the monochrome, and the color of the drawing screen when performing
drawing on the color screen. The relationship between the setting,
intensity, and color is as shown below:
However, when the plane view is displayed on the monochrome. The
brighter surface, whichever is specified by P or Q becomes the top surface.
Setting value Intensity Color
0 Maximum brightness White

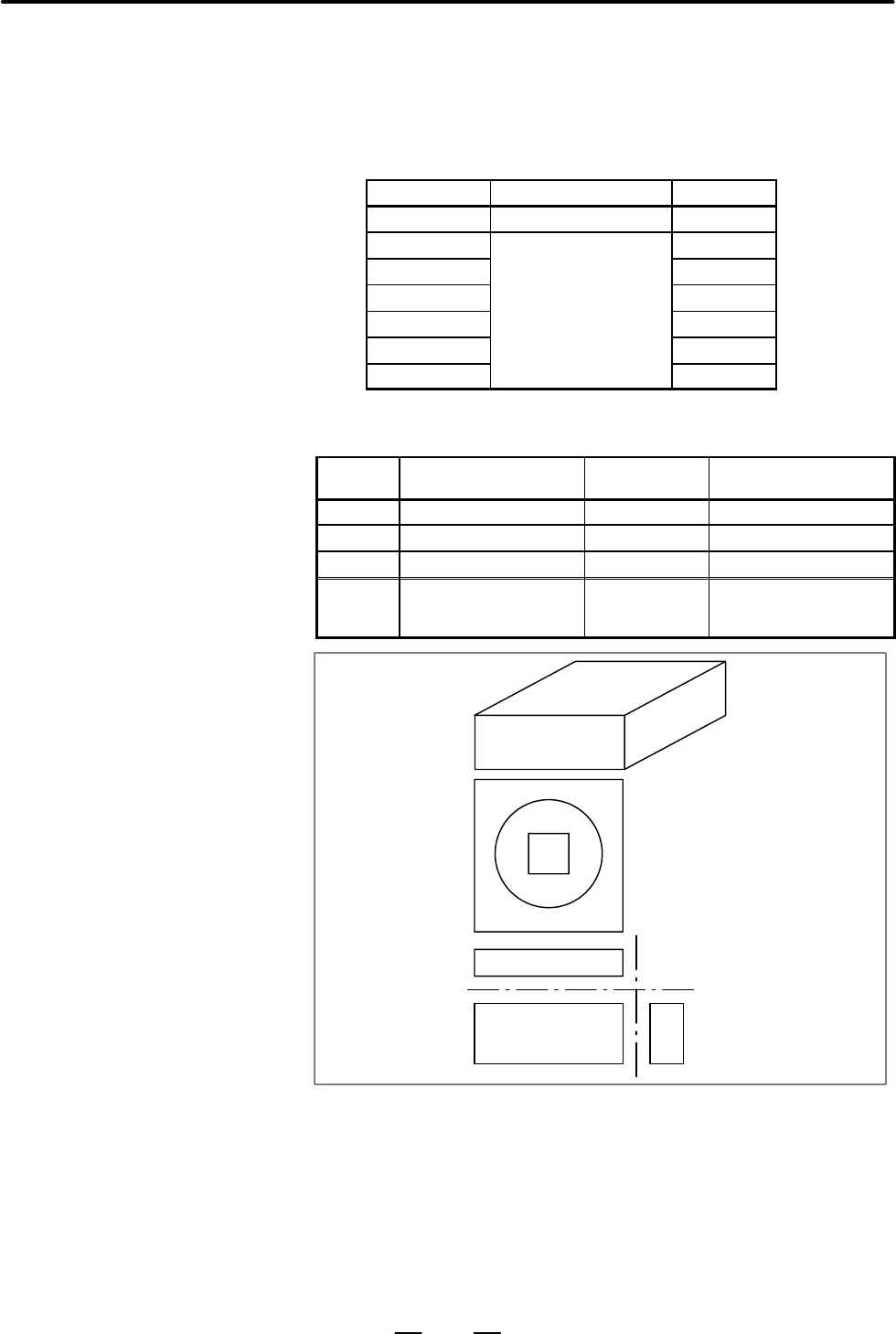

The relationship between the display address, surface, and line on the
machined figure view is as shown below:
Plane view Triplane view
P Upper surface Upper surface Upper/lower surface
Q Side surface Middle surface Left/right surface
R Ridge Ridge Ridge
Remarks The intensity/color of
front surface is
between P and Q
The intensity/color of
plane view is between
P and Q
Oblique projection view
Specify the start sequence number and end sequence number of each
drawing in a five–digit numeric. The subject part program is executed
from the head. But only the part enclosed by the start sequence number
and end sequence numeric is drawn. When 0 is commanded as the start
sequence number, the program is drawn from its head. When 0 is
commanded as the end sequence number, the program is drawn to its end.
The comparison of sequence number is performed regardless of main
program and subprogram.
D START SEQ. NO. and
END SEQ. NO.
