FA System for PC Operators manual Page 273

Operators manual
B-75044EN/02 APPENDIX D. DNC1
-261-
2 From the [Station Address] combo box, choose the station address of the
NC.
3 If the specified NC unit is the multi-path system, enter the tool post
number. If not so, you don’t need to enter it.
4 Enter the NC program number you want to delete.
For example, if you want to delete the NC program number “O0017”,
enter “0017” or “17”.
5 Click the <Run> button.
6 If the value of 0 is displayed in [RESULT], the deletion is successful.
Otherwise, it is failed.

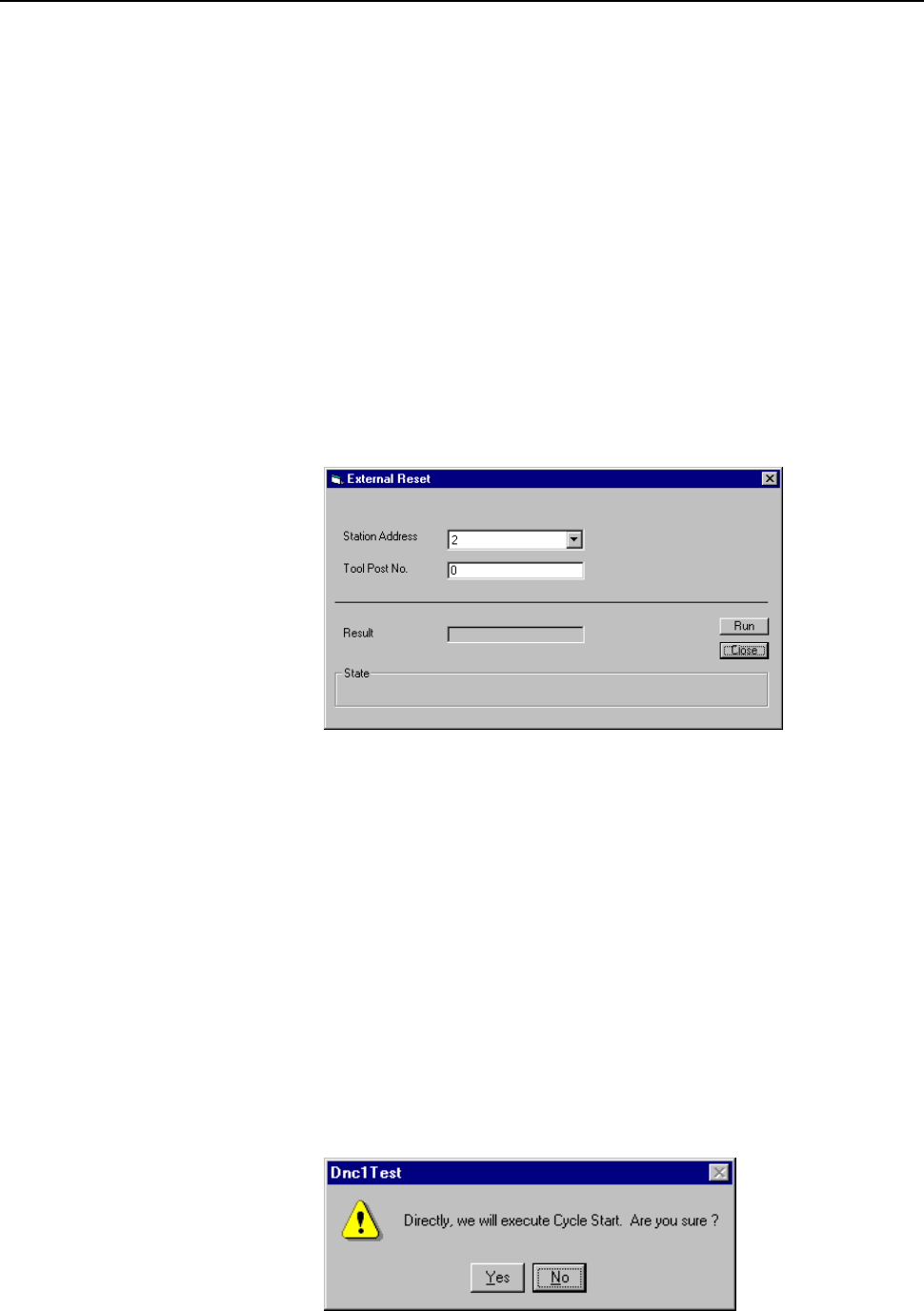

External Reset
Using Dnc1Test
1 Click the <External Reset> button in the main screen.
2 From the [Station Address] combo box, click the station address of the
NC.
3 If the specified NC unit is the multi-path system, enter the tool post
number. If not so, you don’t need to enter it.
4 Click the <Run> button.
5 If the value of 0 is displayed in [RESULT], the reset is successful.
Otherwise, it is failed.
Cycle Start
Operating NC
1 Change the NC mode to “MEMORY”.
Using Dnc1Test
2 Click the <Cycle Start> button in the main screen.
