B-75044EN/02 3. NC PROGRAM MANAGEMENT
-57-
Moving Files
1 Choose the file you want to move from the File List.
You can select more than one file by clicking files while pushing the Ctrl
key.
2 Click the [Move] command in the [File] menu. The [Move File] dialog
box will open.
3 Choose the Management Group of destination, and click the <Move>
button.
Deleting Files
1 Choose the file you want to delete from the File List.
You can select more than one file by clicking files while pushing the Ctrl
key.
2 Click the [Delete] command in the [File] menu.
Renaming the file
1 Choose the file you want to rename from the File List.

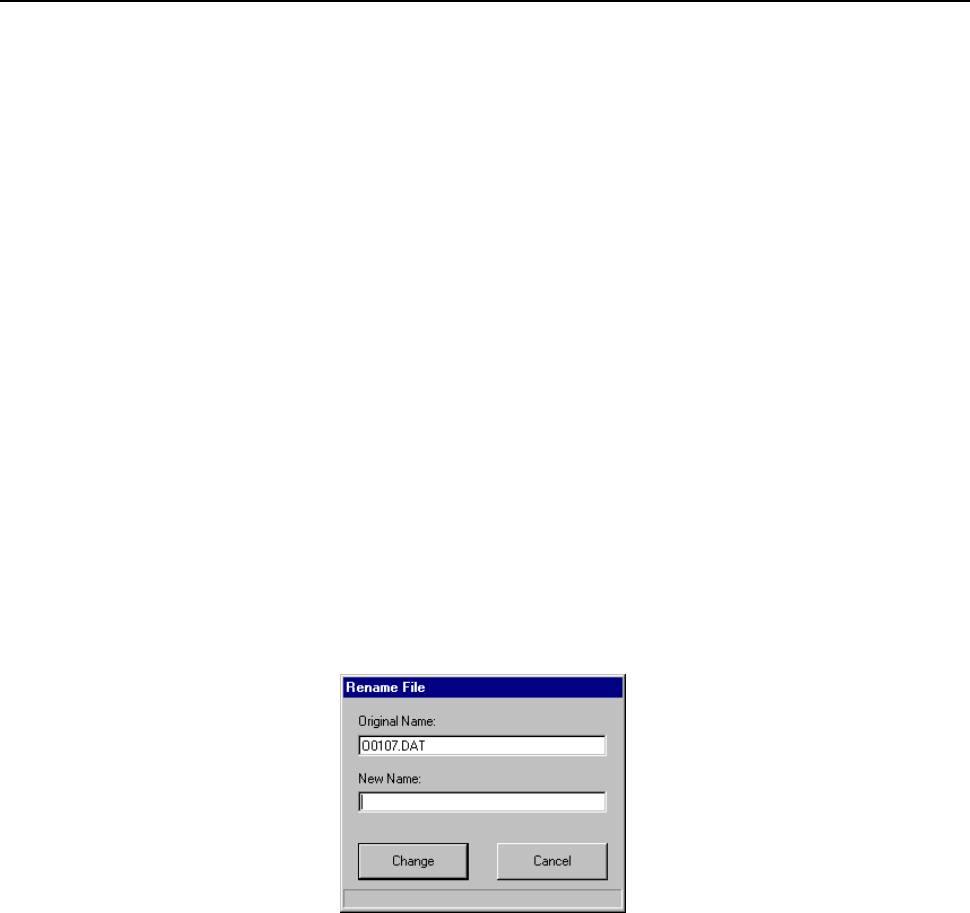

2 Click the [Rename] command in the [File] menu. The [Rename File]
dialog box will open.
3 Enter a new name of the file, and click the <Change> button.
