FANUC Series 30i/31i/32i Additional Manual Page 3

Additional Manual
EDIT
DATE DISIGNE
DESCRIPTION
TITLE
DRAW
FANUC Series 30i/31i/32i A,31i A5
The notice of using the high-speed skip function
A-79672E
SHEET
3/4
APPROV.
FANUC LTD
High-speed skip status signal HD00-HD07<Fn122>
#7 #6 #5 #4 #3 #2 #1 #0
Fn122 HDO7 HDO6 HDO5 HDO4 HDO3 HDO2 HDO1 HDO0
[Classification] Output signal
[Function] This signal informs the PMC of the input status of the high-speed skip signal.
[Output condition] 1: When the contact of high-speed skip signal is close.(The input voltage is at a low level.)
0: When the contact of high-speed skip signal is open.(The input voltage is at a high level.)
Absolute maximum rating
Input voltage range Vin: 3.6 to +13.6V
Input characteristics
Unit Symbol Specification Unit Remark
High level input voltage VH 3.6 to 11.6 V
Low level input voltage VL 0 to 1.0 V
High level input current IiH 2 (max) mA Vin=5V
11 (max) mA Vin=10V
Low level input current IiL -8.0max mA Vin=0V
Input signal pulse duration 20min
µs
Input signal delay or
variations
0.02(max) ms

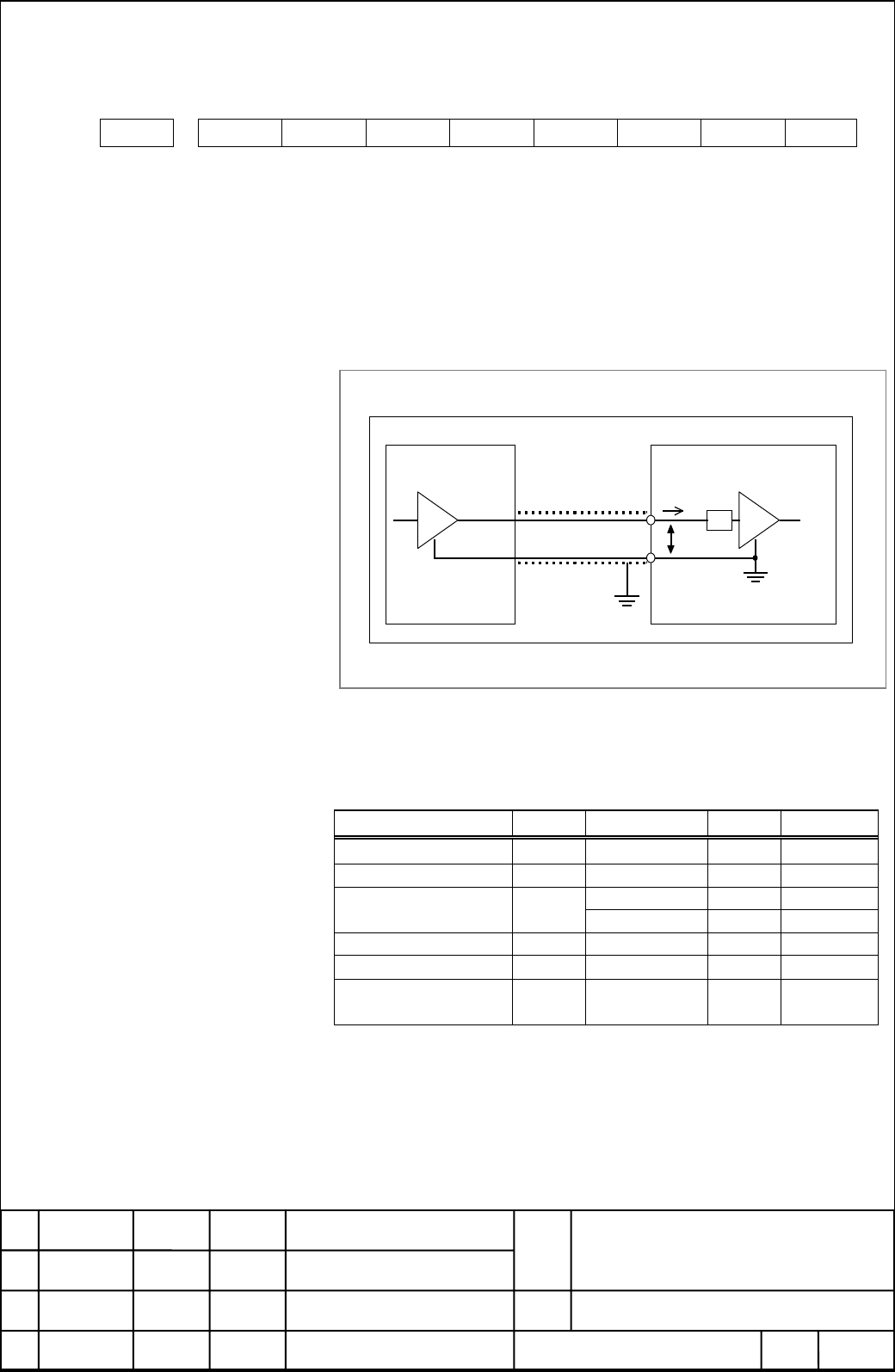

RECEIVER
CNC
DRIVER
SHIELD
IiL/IiH
FILTER
V
H/VL
Series 30i /31i /32i input
Signal Rules for the High
-speed Skip(HDI)
CIRCUIT CONFIGRATION
