0i - PC Connection manual (Function) Page 85

Connection manual (Function)
B–64153EN/01
5. TOOL FUNCTION (T FUNCTION)
73
Axis
movement
TMF
0
1
Read T code
T code signal
‘TF’
‘MVT’
‘INPT’
‘ITT’
‘SVFT’
Mechanical
clamp by shot
pin
Operation for
T code signal
Movement of axis
FIN
‘TIE’
‘*SP’
‘ST’
0
Next operation
Release

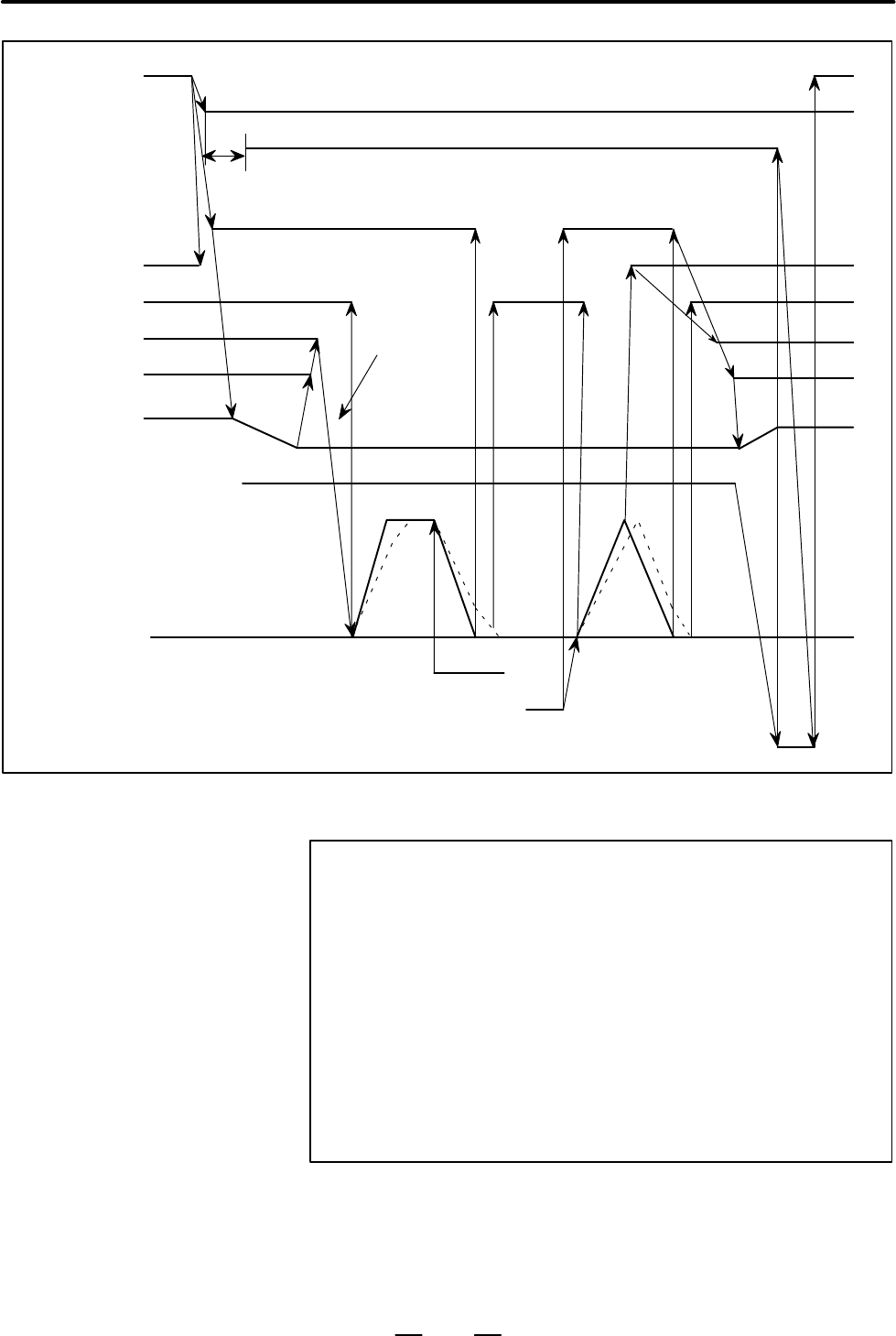

Fig. 5.3.3
CAUTION
1 When turret indexing for an instructed T code is over, signal
TIE is turned to 1; however the transmission timing is at the
moment when deceleration begins. The turret must be
neither clamped nor released from clamping, therefore,
using a shot pin, etc. merely on receiving the signal TIE. The
conditions of signals MVT and INPT must be applied.
2 After emergency stop or the servo alarm is released after
power on, the TIE signal remains 0 until manual reference
position return of the turret axis is completed, and the
machine position of the turret axis is established.
