Modification of vertical base unit (ABU05B, ABU10B) Additional Manual Page 2
Additional Manual
FANUC I/O Unit-MODEL A
Modification of vertical base unit ABU05B, ABU10B)
1. Outline
The outer case of vertical base unit is changed from metal to plastic.
2. Application
5-slot vertical base unit (ABU05B): A03B-0807-J003
10-slot vertical base unit (ABU10B): A03B-0807-J004
3. Applicable Date
November 2000

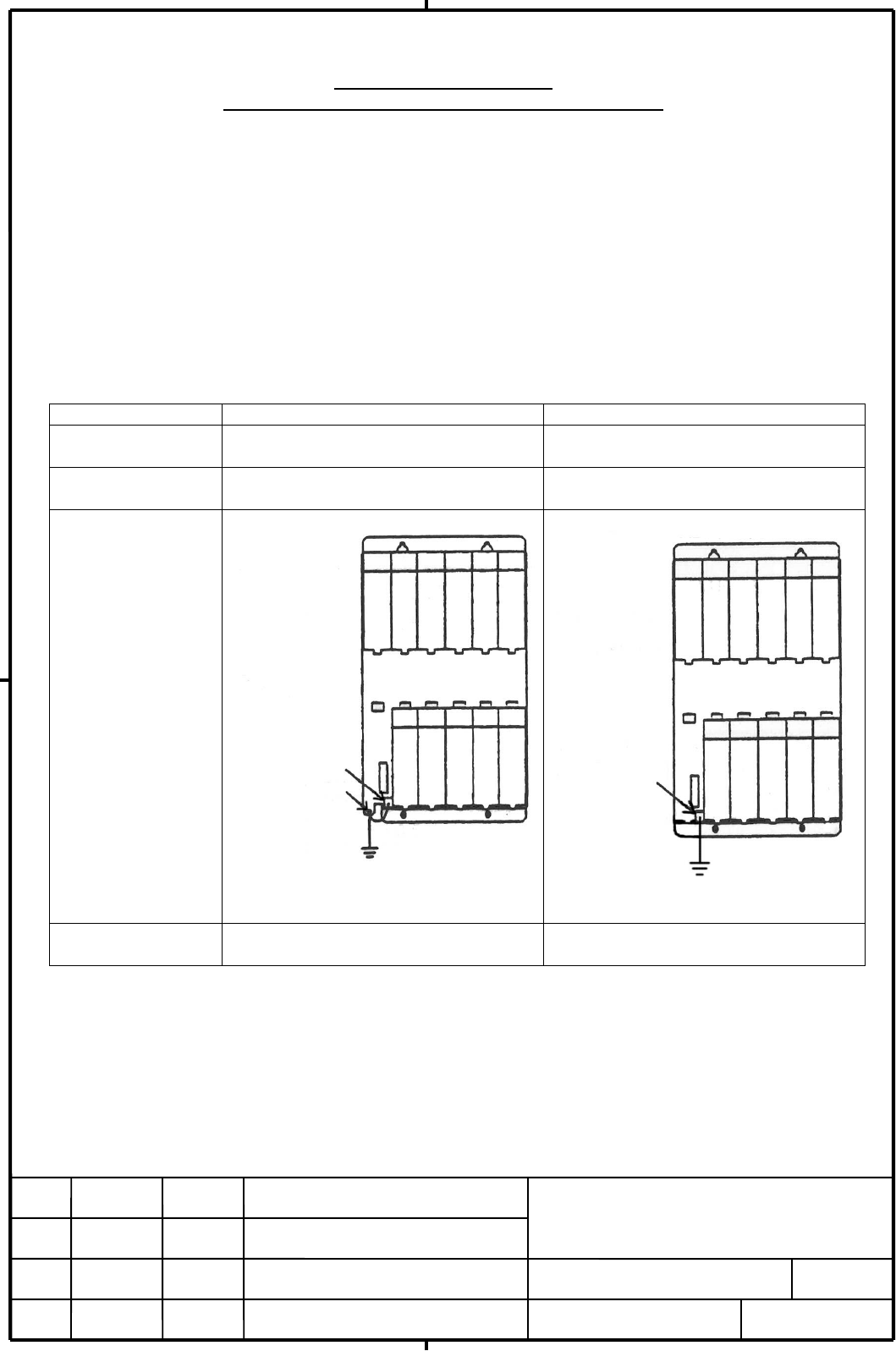

4. Difference between metal case and plastic case
Following table shows the difference between metal case and plastic case.
Item Metal case Plastic case
Outer dimension,
Holes for mounting
- Same as metal case
Weight ABU05B:1.0 kg
ABU10B:2.0 kg
ABU05B:0.5 kg
ABU10B:1.0 kg
Grounding ABU05B, ABU10B
Note) Connect the grounding terminal
to the grounding hole portion.
ABU05B, ABU10B
Note) Connect the grounding terminal
to the ground directly.
PCB drawing no. ABU05B:A20B-2000-0510
ABU10B:A20B-2000-0550
ABU05B:A20B-2000-0510
ABU10B:A20B-2003-0100
EDIT
.
FANUC LTD
SHEET
DRAW. NO.
CUST
TITLE
1/1
DESCRIPTIONDESIG.DATE
01
00/11/29
Koike Newl
y
FANUC I/O Unit-MODEL A
Modification of vertical type base unit
(ABU05B, ABU10B)
A
-81221E
Grounding
terminal
(M3 screw
terminal)
M4 hole for
grounding
Grounding
terminal
(M3 screw
terminal)
