Bevel cutting compensation Additional Manual Page 3
Additional Manual
01 00.11.24 Murakawa Miyajima Newly designed.
Drawing No.
A - 78314E
Tilte
FANUC Series 16i /160i -LA
Bevel Cutting Compensation
Specification
Edit Date Design Recog. Contents Page 3 / 7
2. Format
The bevel cutting compensation function is active during the bevel cutting mode. The bevel cutting
compensation function manages the procedure of fixed nozzle continuously by using the arithmetic
2nd arm length depend on the bevel angle.
The bevel cutting mode is cancelled by also Reset.
Parameter No.15616 and 15619 must be set before the bevel cutting mode is started. Parameter
No.15616 is set the real 2nd arm length (L in Figure 3) and parameter No.15619 is set offset
length from nozzle tip to tool center point (H in Figure 3). Parameter No.15619 can be set by using
G71 R_ command before G71 P1 command.

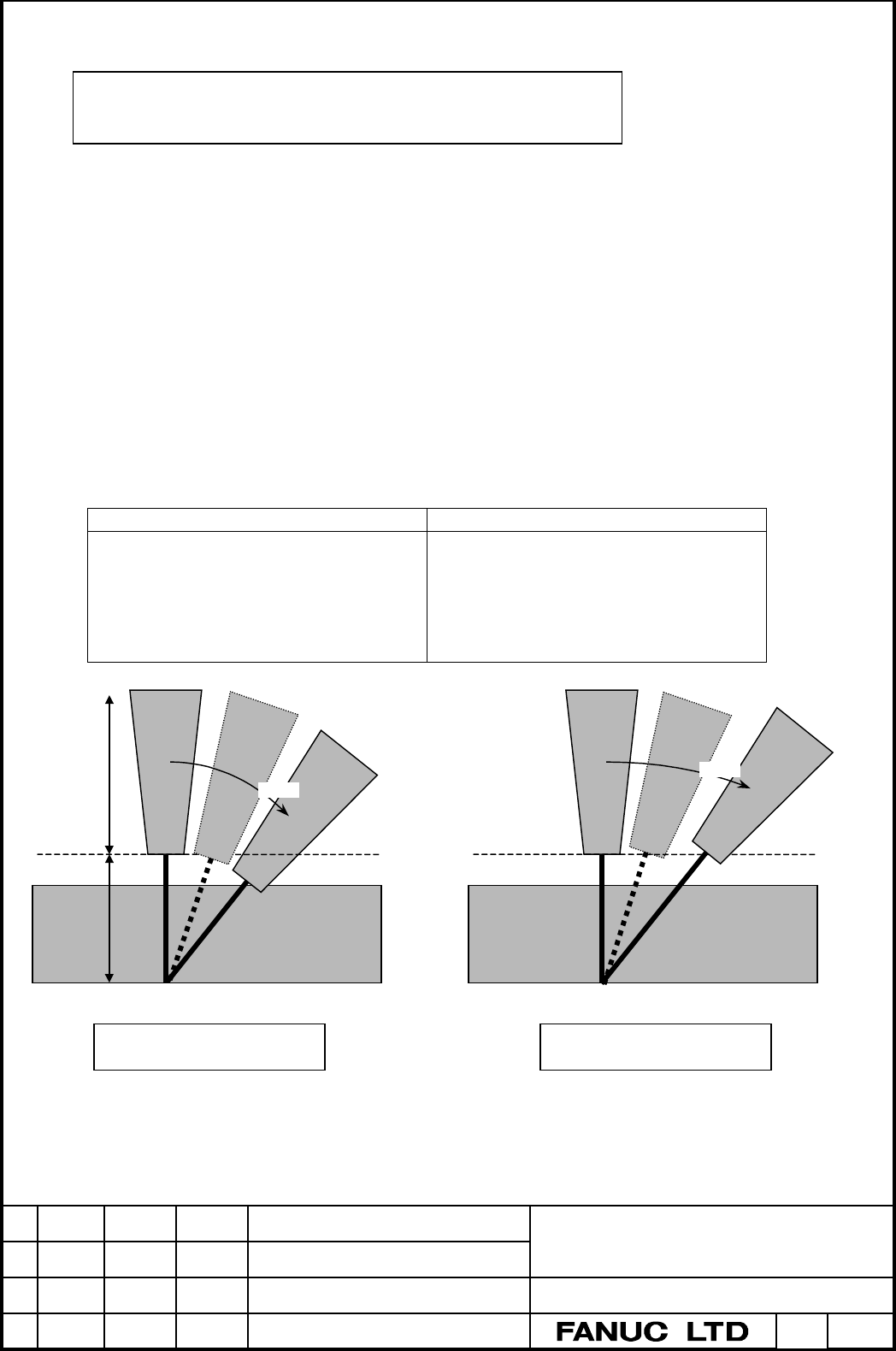

3. Example
Bevel cutting mode off. Bevel cutting mode on.
N01 G71 R21. ;
N02 G90 X0 Y0 A0 B0 ;
N03 ;
N04 G01 B45. ;
N05 ;
(A:4th axis, B:5th axis)
N01 G71 R21. ;
N02 G90 X0 Y0 A0 B0 ;
N03 G71 P1 ;
N04 G01 B45. ;
N05 G71 P0 ;
Nozzle
TCP
Workpiece
Nozzle
R21.
Workpiece
N04
N04
TCP
Parameter
No.15616
Bevel cutting mode onBevel cutting mode off
G71 P1 ; Starts the bevel cutting mode.
G71 P0 ; Cancels the bevel cutting mode.
