FANUC Series 16i/18i/21i –TB/MB
αi servo/spindle system
Title
Drawing No.
Page
Description
Date
9/11
1.4.2 αi spindle information screen
Outline
On αi spindle system, ID information can be output from each connected
equipment to CNC screen. In the equipment with ID information is as follows:
l Spindle motor
l Spindle amplifier
l Power supply module
Displaying spindle information screen
1. Press the function key

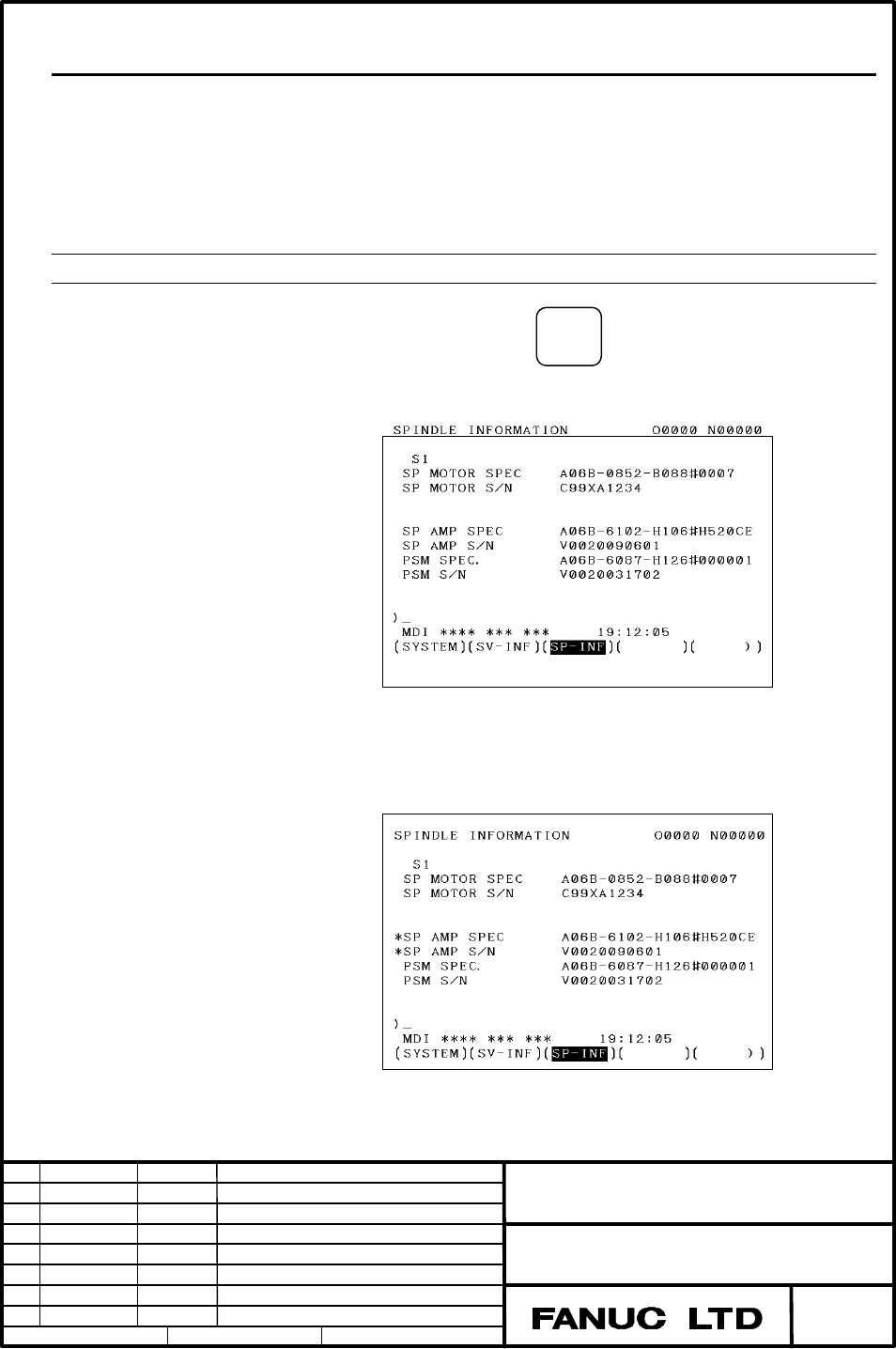

2. When the soft key [SP-INF] is pushed, the following screen is displayed.
3. Spindle information is saved on the FLASH-ROM module. If there is a
difference between spindle information on FLASH-ROM and spindle
information on spindle I/F, for example spindle amplifier is exchanged for
different one, '*' is displayed on the left side as follows.
SYSTEM
Previous page
Next page
