Fanuc Series 30i/31i/32i-Model A, Fine Torque Sensing (STEP1), Specifications Additional Manual Page 4
Additional Manual
Signal
Torque sensing command signal
FTCMD<G203#0>
[Classification] Input signal
[Function] This signal directs that disturbance load torque data be stored.
[Operation] While the torque sensing command signal is 1, the CNC stores disturbance
torque data to internal memory. When the signal changes from 1 to 0, the
CNC stops storing the torque data. When the signal changes back to 1, the
CNC restarts to store the torque data from an interrupting point. To start
storing data from the beginning, the store counter clear signal must be input
before start storing.
Store counter clear signal
FTCLR<G203#2>
[Classification] Input signal
[Function] This signal clears the counter for the stored data.
[Operation] When the store counter clear signal becomes 1, the CNC deletes all stored
data, and clears the counter for the stored data. To start storing from the
beginning, the store counter clear signal must be input before start storing.

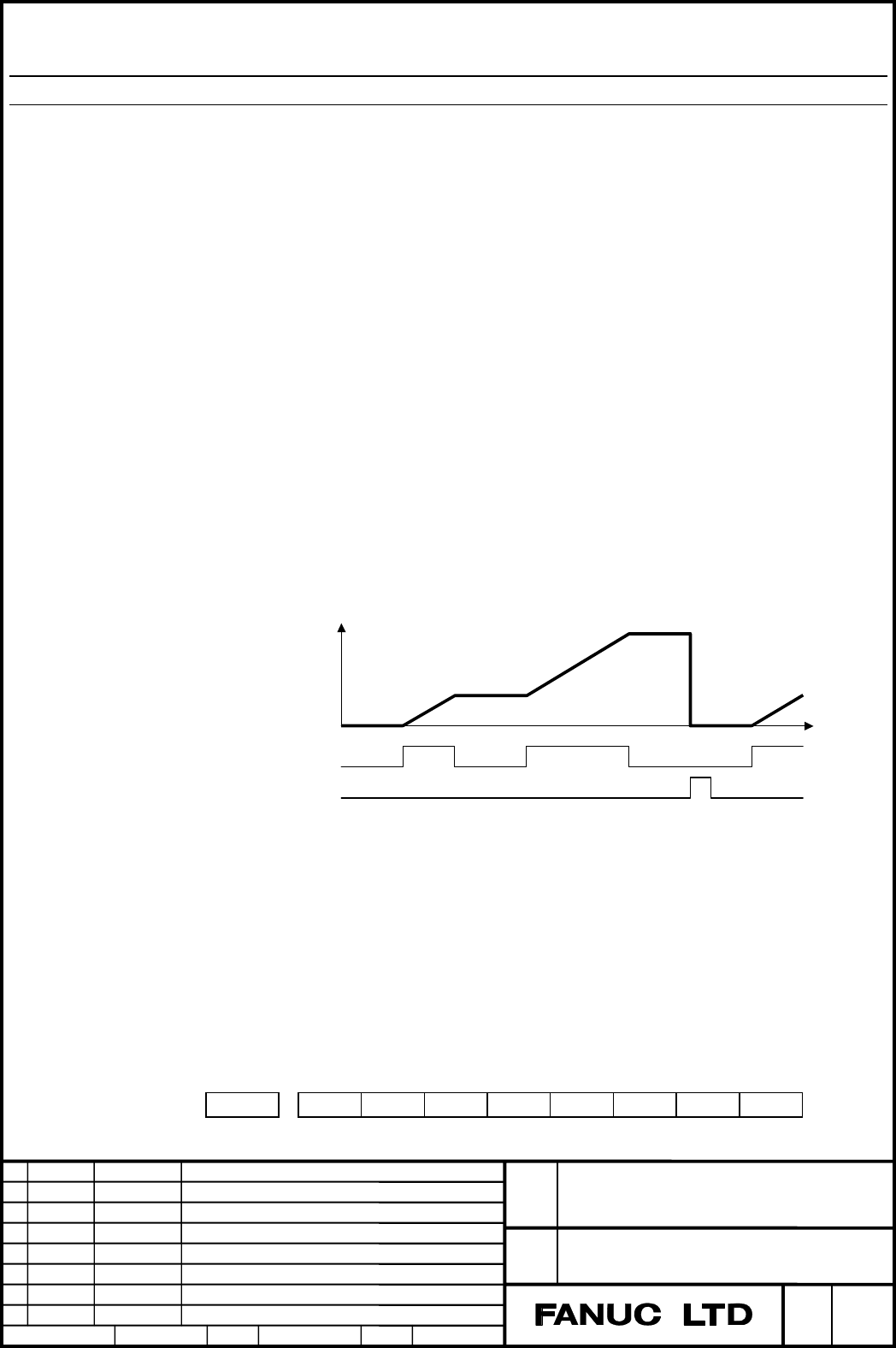

Store counter
（Number of stored data）
time
FTCMD
FTCLR
Statistics calculation signal
FTCAL<G203#1>
[Classification] Input signal
[Function] This signal directs to calculate statistic.
[Operation] When statistics calculation signal becomes 1, the CNC calculates average
and dispersion of disturbance torque data already stored. When the
calculation has already been done or the torque sensing command signal is 1,
statistical calculation is not done.
Signal address
#7 #6 #5 #4 #3 #2 #1 #0
G203 FTCLR FTCAL FTCMD
A-90429E
Title
Draw
No.
Ed. Date Design Description
Date Nov.29.’05 Design. Apprv.
4/4
page
FANUC Series 30i/31i/32i -MODEL A
Fine Torque Sensing
