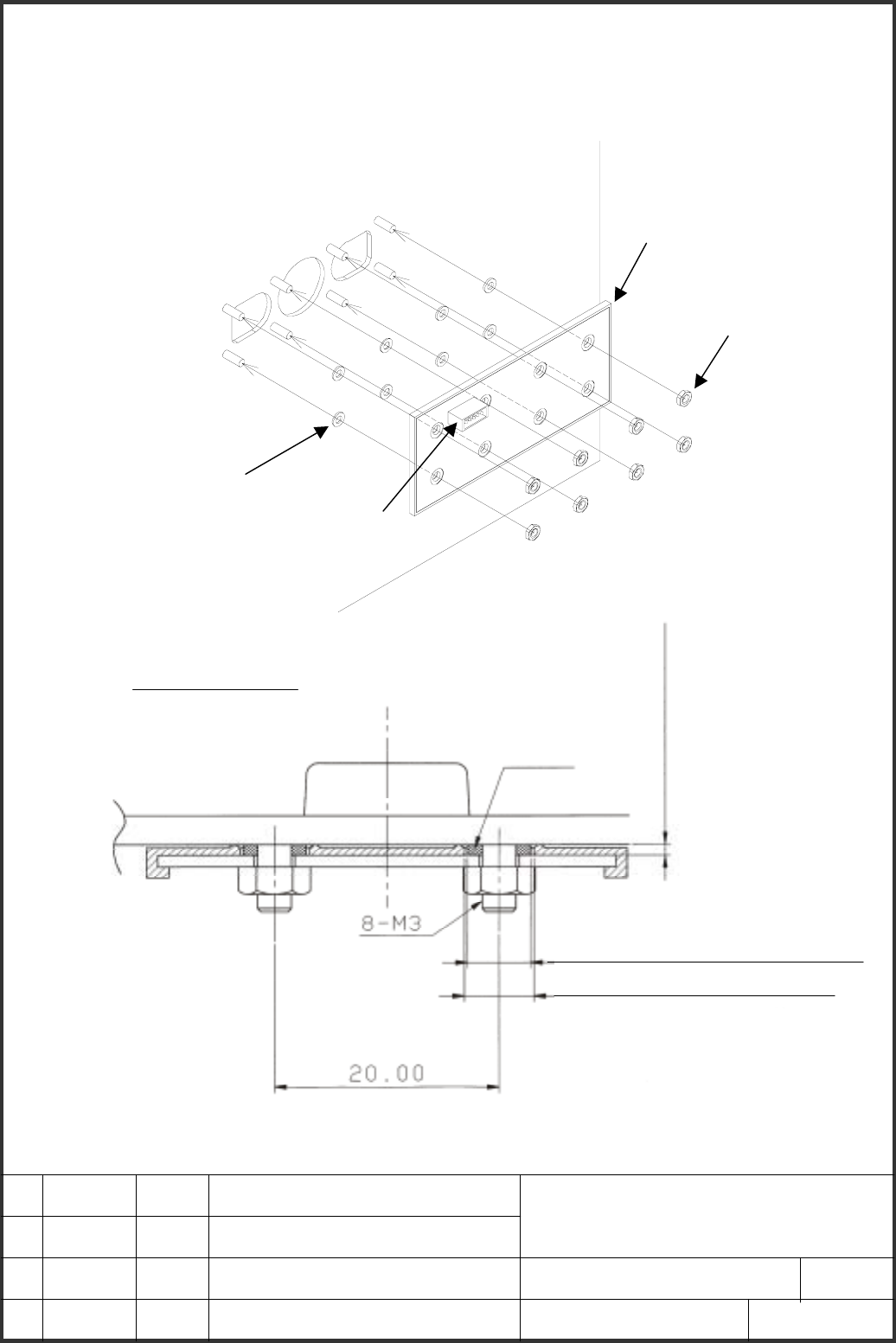

10. Assembling method (unit : mm)
The pointing device is assembled to the plate with eight nuts for M3. (torque 0.8N.m)
Pointing device
M3 Nut
Spacer
CN1
Spacer measure
Spacer
0.45∼0.8 (Spacer thickness)
φ6.20 (Oil resistant sheet diameter)
φ5.60∼φ6.00 (External diameter of spacer)
Edit Date Design Description
SHEET
FANUC LTD
A-85113E
6/6
CUST.DRWAING NO.
TITLE
