HDD Fixing Plate in HDD Unit Additional Manual Page 2
Additional Manual
Edit Date Design Description
SHEET
FANUC LTD
A-85127E
2/2
CUST.DRWAING NO.
TITLE

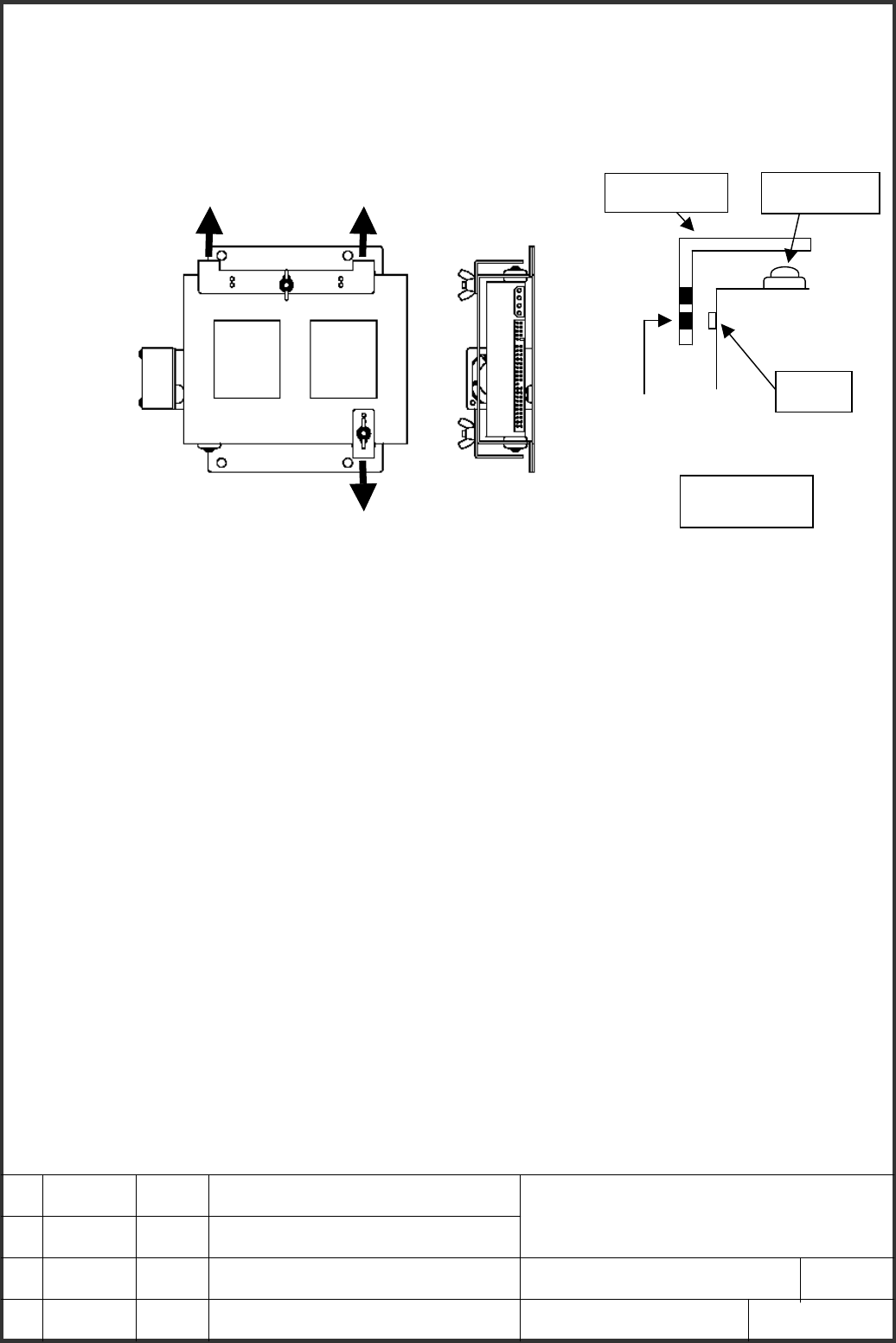

5.2. Release
(Make it this condition before turning the power supply on after machine establishment
is completed by the machine maker and the end user.)
(1) Loosen the wing nuts
(2) Move the fixing plate far from the HDD. In this time, the plates release the HDD screws.
(3) Tighten the wing nuts.
HDD
HDD screw
Bump
Fixing plate
This hole is
positioned to
bump
View from A
