FS 16i/18i/21i-Model A/B, Supplementary Explanation of Multi Spindle Control Additional Manual Page 4

Additional Manual
3. Time chart (Example)
The example of the time chart when executing the following program is shown.
M
1
＿ S
1
＿ ; ………… (1)
M
2
＿ S
2
＿ ; ………… (2)
(1) : The program to execute S command of S
1
_ to the 1st spindle.
(2) : The program to execute S command of S
2
_ to the 2nd spindle.
And at this time, the 1st spindle must keep S
1
_, which was commanded in (1).

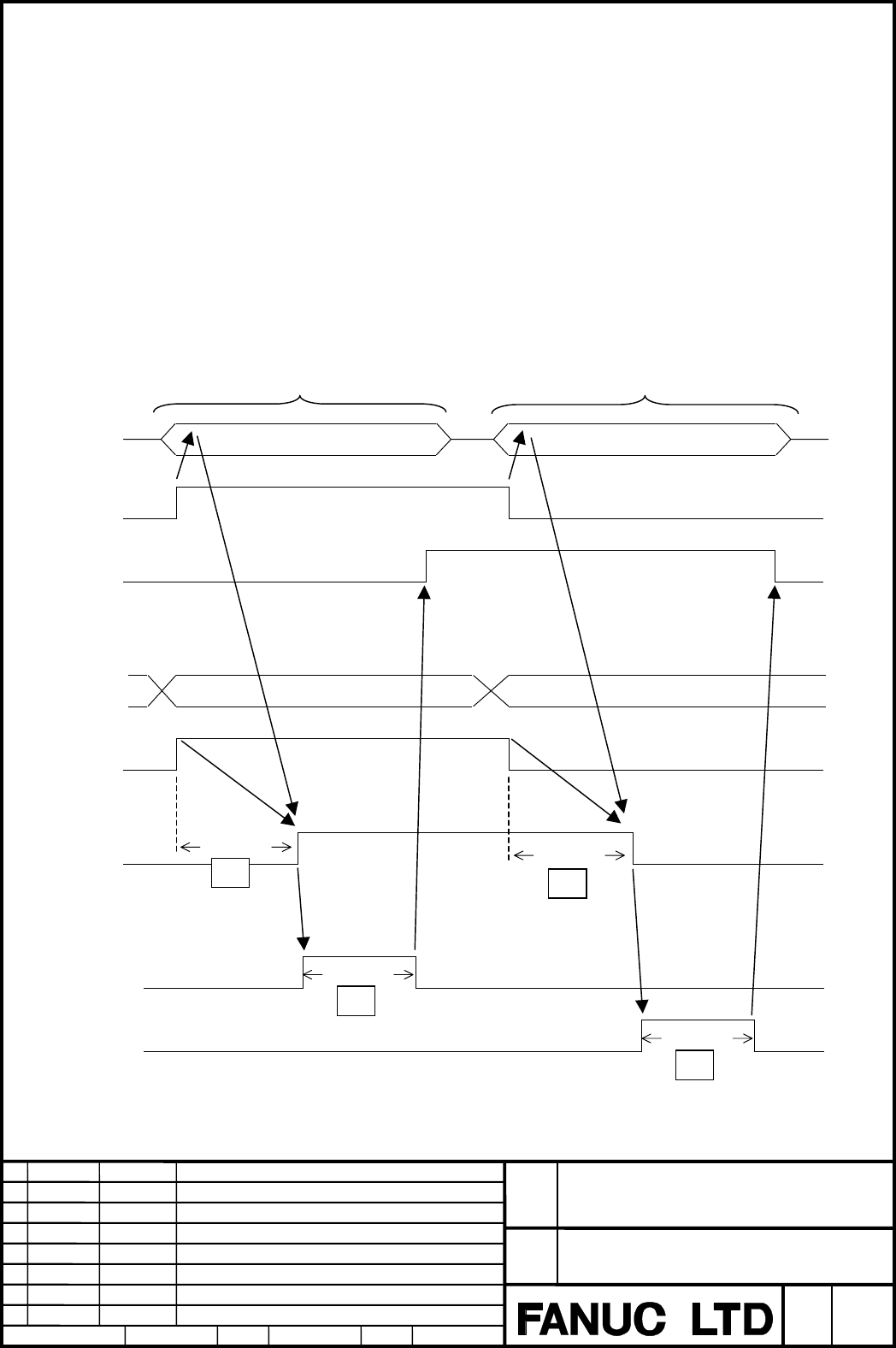

The following time chart shows example in case of high-speed MST. (Parameter 3001#7=1)
(
1
)
(
2
)
M code M
1
M
2
MF
MFIN
S code S
1
S
2
SF
SFIN
SWS1
SWS2
X msec
(*)
B
A
A
X msec
(*)
X msec
(*)
X msec
(*)
B
(*)
As for the value of "X msec", refer to the following Appendix 1.
A-79111E
Sheet
Title
Draw
No.
Ed. Date Design Description
Date Apr.04.’03 Desig. Apprv.
FANUC Series 16i/18i/21i – MODEL A / B
Supplementary explanation of Multi spindle control
3/4
