Power ON/OFF of FANUC Panel i for Automotive with I/O Link Additional Manual Page 3
Additional Manual
EDIT
SHEET
DRAW. NO.
CUST
TITLE
DESCRIPTION
DESIG.
DATE

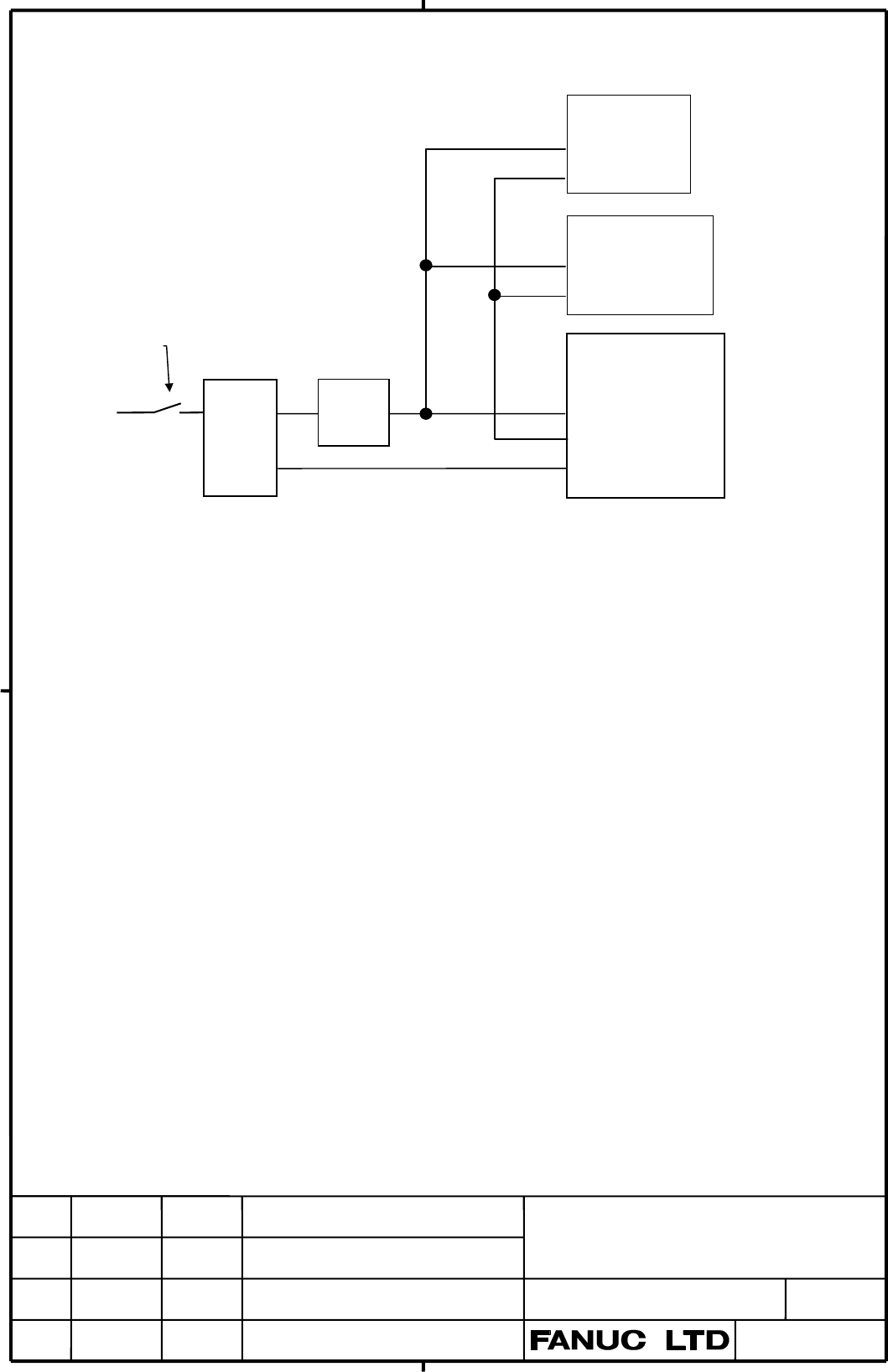

Power ON/OFF of FANUC PANEL i for
A
utomotive with I/O Link
A
-85109E
3 / 3
PANEL i for
Automotive
DC24IN
I/O LINK
RS232C
Power ON/OFF
switch
CNC controller
DC24IN
I/O LINK
Serial communication
AC input
Power
supply
unit
ＵＰＳ
I/O Link
Other I/O unit
DC24IN
I/O LINK
Contents Summary of Power ON/OFF of FANUC Panel i for Automotive with I/O Link Additional Manual
- Page 1Power ON/OFF of FANUC PANEL i for Automotive with I/O Link This report describes some recommendations about power ON/OFF of FANUC PANEL i for Automotive with I/O Link. 1. Applicable system This information is applied to the following PANEL i for Automotive. A08B-0084-B412 A08B-0084-B413 A08B-0084-B4
- Page 2(Example 1) CNC controller Power supply DC24IN unit 1 I/O LINK Other I/O unit DC24IN I/O LINK I/O Link Power ON/OFF PANEL i for switch Automotive ＵＰＳ Power AC input supply DC24IN unit 2 I/O LINK Serial communication RS232C In this case, please pay attention to the timing of power ON/OFF of each unit
- Page 3CNC controller DC24IN I/O LINK I/O Link Other I/O unit DC24IN I/O LINK Power ON/OFF switch PANEL i for Automotive ＵＰＳ Power supply DC24IN AC input unit I/O LINK RS232C Serial communication TITLE Power ON/OFF of FANUC PANEL i for Automotive with I/O Link DRAW. NO. CUST A-85109E SHEET EDIT DATE DESIG.
