Sub Module for Synchronous Spindle (SSM) Supplement to Manual Page 4

Supplement to Manual

TITLE

DRAW.

No.

4 / 4

Page

FANUC LTD

DESCRIPTION DESIGN DATE

EDIT

Sub Module SM for

αi series Spindle Amplifier Module

description

53866E

PRELIMINARY

6. Connection

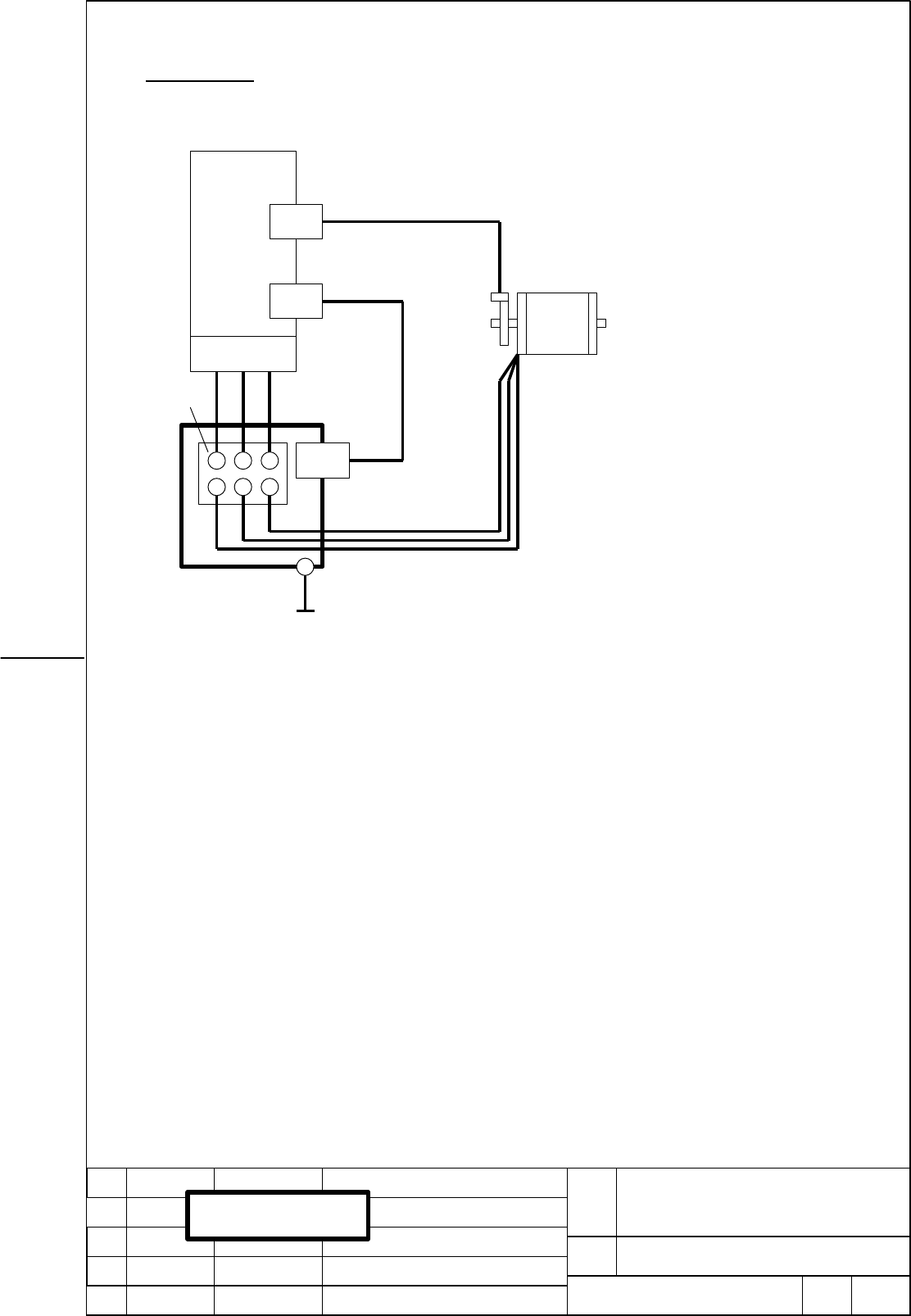

6.1. General connection diagram

JYA2

Synchronous Spindle Motor

JYA4

CX31

SPM TYPE B

SSM

Control Cable

GND

TB2 or CZ2

Terminal

K86

K17

K10

K70

6.2. Detail of K10, K17, K70

Please refer to FANUC SERVO AMPLIFIER αi series description B-65282EN, Chapter 9 and

Appendix E.

Page 1Sub Module SM (Synchronous Motor) for αi series Spindle Amplifier Module description 1. General This document describes connection and external dimensions about Sub Module SM (sub module for synchronous motor) for αi series Spindle Amplifier Module. SPM TYPE B JYA2 Synchronous Spindle Motor Control
Page 23. Order information Model Specification number Note SSM-100 A06B-6111-H403 Order available after December 2002 4. External Dimensions Protection cover (yellow part) attached 55 55 7 FANUC U2 V2 W2 180 160 FANUC LTD CX31 U1 V1 W1 G round 150 210 (Unit = mm) Protection cover removed U2 V2 W2 6-M 10 C
Page 35. Panel Cut 55 55 6-M 6 160 (Unit = mm) Sub Module SM for TITLE αi series Spindle Amplifier Module PRELIMINARY description DRAW. No. A-53866E-0431 EDIT DATE DESIGN DESCRIPTION FANUC LTD Page 3/3
Page 46. Connection 6.1. General connection diagram SPM TYPE B K17 JYA2 Synchronous Spindle Motor Control Cable JYA4 TB2 or CZ2 K86 Terminal K10 CX31 SSM K70 GND 6.2. Detail of K10, K17, K70 Please refer to FANUC SERVO AMPLIFIER αi series description B-65282EN, Chapter 9 and Appendix E. Sub Module SM for
Page 56.3. Detail of K86 The length of K86 should be 3 meters or the less. And SPMs connected by this cable should be mounted in the same cabinet. SPM Submodule TYPE B SM Shield JYA4 CX31 (11) 24V 24V (A1) (12) XALM XALM (A4) (15) RDY RDY (A3) (16) 0V 0V (A2) (10) SS Compatible connector: JYA4 : solder ty
