Connection of Two LCD Units for Standalone Type FS30i-A/31i-A5/31i-A/32i-A Additional Manual Page 8
Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
7
/
9
DESCRIPTIONDESIG.DATE
Connection of two LCD units for Stand-
alone type FS30i-A/31i-A5/31i-A/32i-A
A
-65568EN

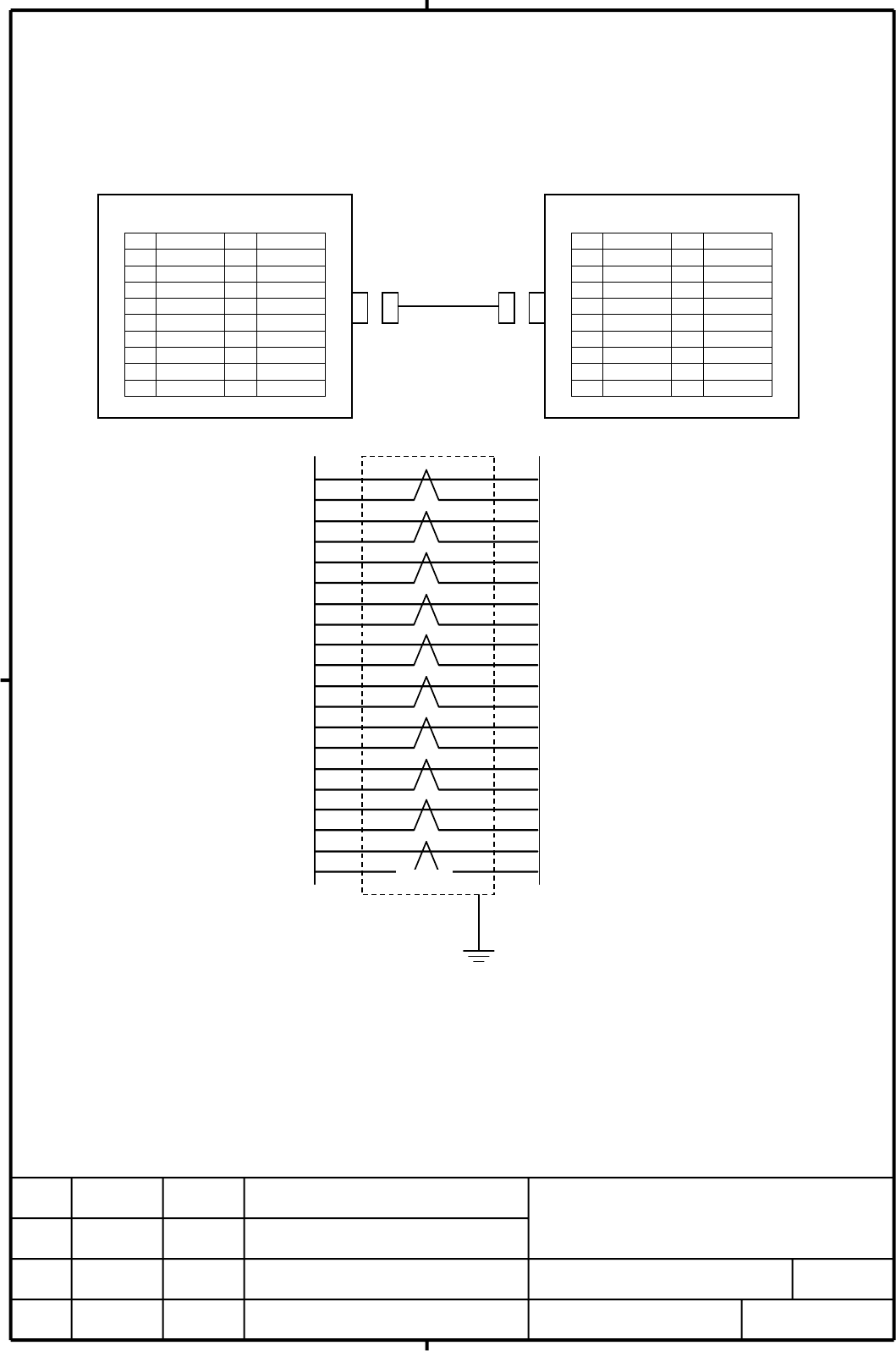

Connection of the Interconnection cable for MDI signal and Video signal
･About the Interconnection cable for MDI signal
*KEY00
*KEY02
*KEY04
*KEY06
*COM00
*COM02
*COM04
*COM06
*COM08
*COM10
*KEY01
*KEY03
*KEY05
*KEY07
*COM01
*COM03
*COM05
*COM07
*COM09
*COM11
*KEY00
*KEY02
*KEY04
*KEY06
*COM00
*COM02
*COM04
*COM06
*COM08
*COM10
*KEY01
*KEY03
*KEY05
*KEY07
*COM01
*COM03
*COM05
*COM07
*COM09
*COM11
JA73
PCR-E20MDA
1 *KEY00 11 *KEY01
2 *KEY02 12 *KEY03
3 *KEY04 13 *KEY05
4 *KEY06 14 *KEY07
5 *COM00 15 *COM01
6 *COM02 16 *COM03
7 *COM04 17 *COM05
8 *COM06 18 *COM07
9 *COM08 19 *COM09
10 *COM10 20 *COM11
JA73
PCR-E20MDA
1 *KEY00 11 *KEY01
2 *KEY02 12 *KEY03
3 *KEY04 13 *KEY05
4 *KEY06 14 *KEY07
5 *COM00 15 *COM01
6 *COM02 16 *COM03
7 *COM04 17 *COM05
8 *COM06 18 *COM07
9 *COM08 19 *COM09
10 *COM10 20 *COM11
First LCD unit Second LCD unit
Cable
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GROUNDING PLATE
Recommended cable specification:
A02B-0303-K845 (20m)
A02B-0303-K846 (10m)
A02B-0303-K847 (5m)
Recommended cable-side connectors (JA73)
PCR-E20FA (Honda Tsushin Kogyo Co., Ltd.)
FI30-20S (Hirose Electric Co., Ltd.)
Recommended wire specification:
A66L-0001-0284#10P (#28AWG 10 pairs, max length: 20m)
SHIELD
Contents Summary of Connection of Two LCD Units for Standalone Type FS30i-A/31i-A5/31i-A/32i-A Additional Manual
- Page 1TECHNICAL REPORT (MANUAL) NO.TMN 05/119E Date: Dec. 7, 2005 General Manager of CNC Laboratory Connection of two LCD units for Stand-alone type FS30i-A/31i-A5/31i-A/32i-A 1. Communicate this report to: ○ Your information ○ GE Fanuc-N, GE Fanuc-E FANUC Robotics MILACRON ○ Machine tool builder Sales ag
- Page 2Stand-alone type Series 30i-A/31i-A5/31i-A/32i-A Connecting to two LCD units 1. Overview In Stand-alone type Series 30i-A/31i-A5/31i-A/32i-A, connecting to two LCD units is available. 2. Specification ・ There are two kinds of unit, First LCD unit and Second LCD unit. The specification of each unit i
- Page 33. Connector Position Connector for Interconnection cable for MDI signal [JA73] Fuse GND terminal Connector for Connector for Interconnection cable MDI for video signal Optical connector [CA55] [CA103] for display Power supply connector control [CPD19B] [COP21B] (right : X type, left : Y type) ･Firs
- Page 4First LCD Unit 0.7A 14W Second LCD Unit 0.4A 8W Note) Use PCMCIA cards that consume no more than 2W. Refer to A-80542 for the cards that can be used. 5. External Dimension 4-M3 Packing attachment area weight：2.0kg (unit : mm) Panel cut drawing TITLE Connection of two LCD units for Stand- alone type
- Page 5The space shown in the figure below is needed to draw out the cable. 60mm (Note) 50mm 50mm (Note) 100mm(max) when connector of the MDI cable between units is Spring-fixing type It becomes 60mm(max) for Screw-fixing type. TITLE Connection of two LCD units for Stand- alone type FS30i-A/31i-A5/31i-A/32
- Page 66. Connection 24VDC power supply Stand-alone type Control unit 24V-IN (CPD19A) First LCD unit MDI unit 24VDC CPD19B CA55 CK1 Optical fiber cable MDI DISPLAY (COP21A) COP21B cable JA73 CA103 Interconnection cable for video 24V Power signal Interconnection supply cable cable for MDI signal CA103 JA73
- Page 7Connection of power supply Supply power (24VDC) to the LCD unit from an external sources. LCD unit External power CPD19B (X: right) 1 +24V 24VDC stabilized 2 0V power 3 24VDC ±10% Cable CPD19B (X type) tyco electronics AMP 1-178288-3 (housing) 1-175218-5 (contact) External power Select a source that
- Page 8Connection of the Interconnection cable for MDI signal and Video signal ･About the Interconnection cable for MDI signal First LCD unit Second LCD unit JA73 JA73 PCR-E20MDA PCR-E20MDA 1 *KEY00 11 *KEY01 1 *KEY00 11 *KEY01 2 *KEY02 12 *KEY03 2 *KEY02 12 *KEY03 3 *KEY04 13 *KEY05 3 *KEY04 13 *KEY05 4 *
- Page 9･About the Interconnection cable for video signal First LCD unit Second LCD unit CA103 JA73 DV2R024N11 DV2R024N11 1 DVI2M 9 DVI1M 17 DVI0M 1 DVI2M 9 DVI1M 17 DVI0M 2 DVI2P 10 DVI1P 18 DVI0P 2 DVI2P 10 DVI1P 18 DVI0P 3 0V 11 0V 19 0V 3 0V 11 0V 19 0V 4 *BLOFFP 12 *RGBENM 20 4 *BLOFFP 12 *RGBENM 20 5
- Page 107. Service parts Name Specification LCD control PCB (for First LCD unit) A20B-8101-0321 LCD control PCB (for Second LCD unit) A20B-8101-0322 LCD unit A02B-0303-D500 Inverter PCB A20B-8100-0962 Fuse for LCD unit power supply A02B-0303-K101 Screw caps A/B (100 pieces) A02B-0303-K190 Screw caps A/B (8
