FANUC Series 30i /31i /32i Correspondence of Rotary Scale without Rotary Data, Specifications Additional Manual Page 4

Additional Manual
Ed.
Apprv
Desig.
4
/
Date
Design
Description
Data
FANUC Series 30i /31i /32i
Correspondence of rotary scale
without rotary data
A
-
79825E
Dec.9.2005
page
Title
Draw
No.
1.2.2 In the case of a rotary axis B type whose movable range is under one rotation
In the case of a rotary axis B type whose movable range is under one rotation
with an absolute position detector (absolute pulse coder) or a rotary scale with
distance-coded reference marks (serial), there is an uncontinuous point of scale
data, if a rotary scale without data (the number of rotation) is used. Then, if an
uncontinuous point of scale data is in movable range, the machine position of
NC is different from correct position.
In this function, by the parameters No.1817#3 and No.1868, the machine
position of NC become correct even if an uncontinuous point of scale data is in
movable range. Therefore, it is possible to set a rotary axis B type even if an
uncontinuous point of scale data is in movable range with a rotary axis B type
whose movable range is under one rotation.
Example.1
In the case of Img.1, the scale data is continuous as 90000 ~ 18000.
Because a machine position of NC is shown by the following equation,
(scale data when the power is turned on) - (scale data on machine position equals 0),
the machine position of NC become correct ones as -45.000 ~ 45.000.
0°
180°
-180°
correct machine position
scale data
359999
135000
-135°
0
-45°
45°
movable range of
rotary axis
180000
90000
machine position of NC
-45.000°
45.000°

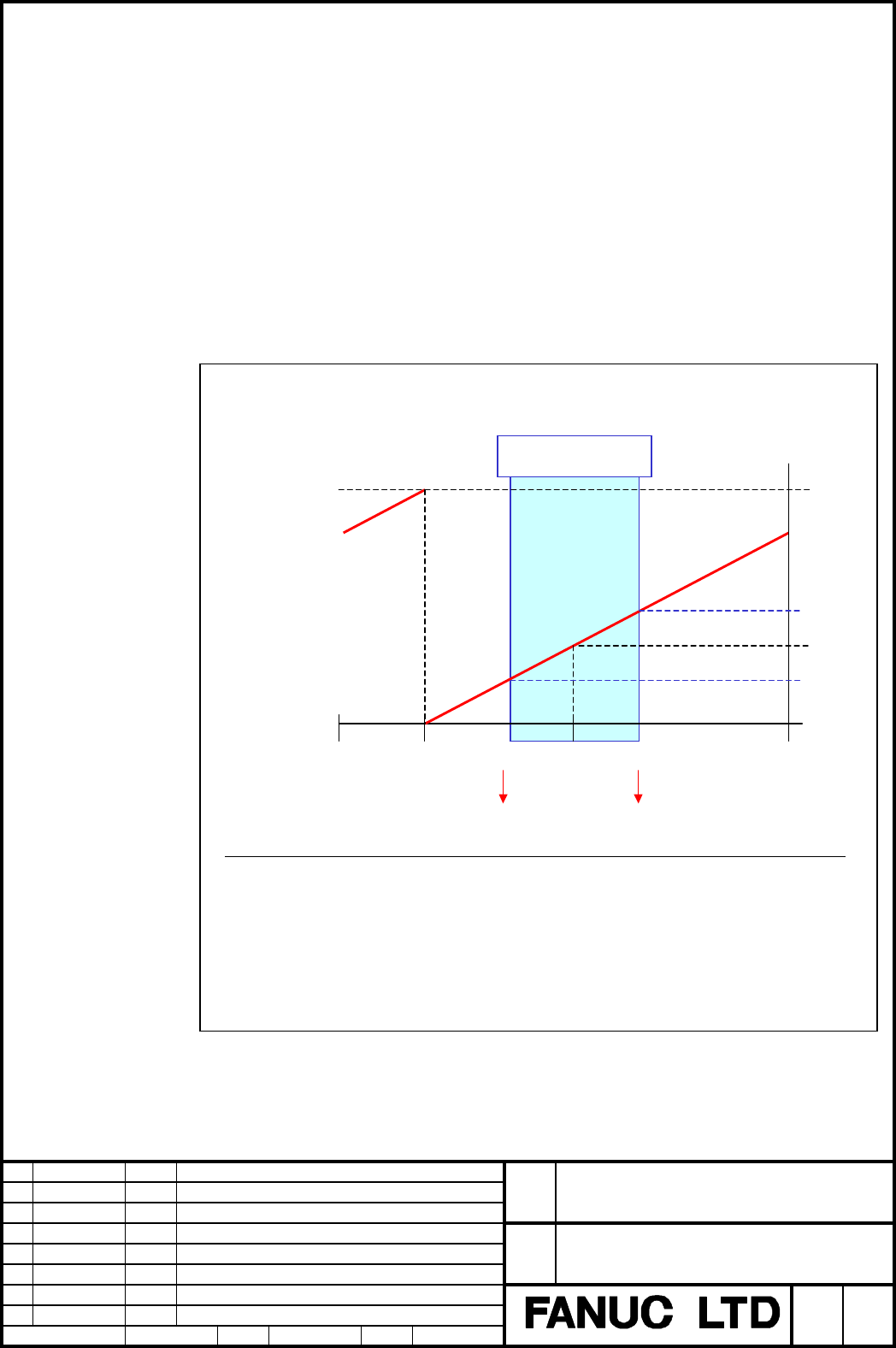

Img.1: The case that the scale data is continuous in movable range of rotary axis.
