Series 0i - Model A Connection manual (Hardware) Page 131

Connection manual (Hardware)
B–63503EN/02
9. CONNECTION TO FANUC I/O Link
119

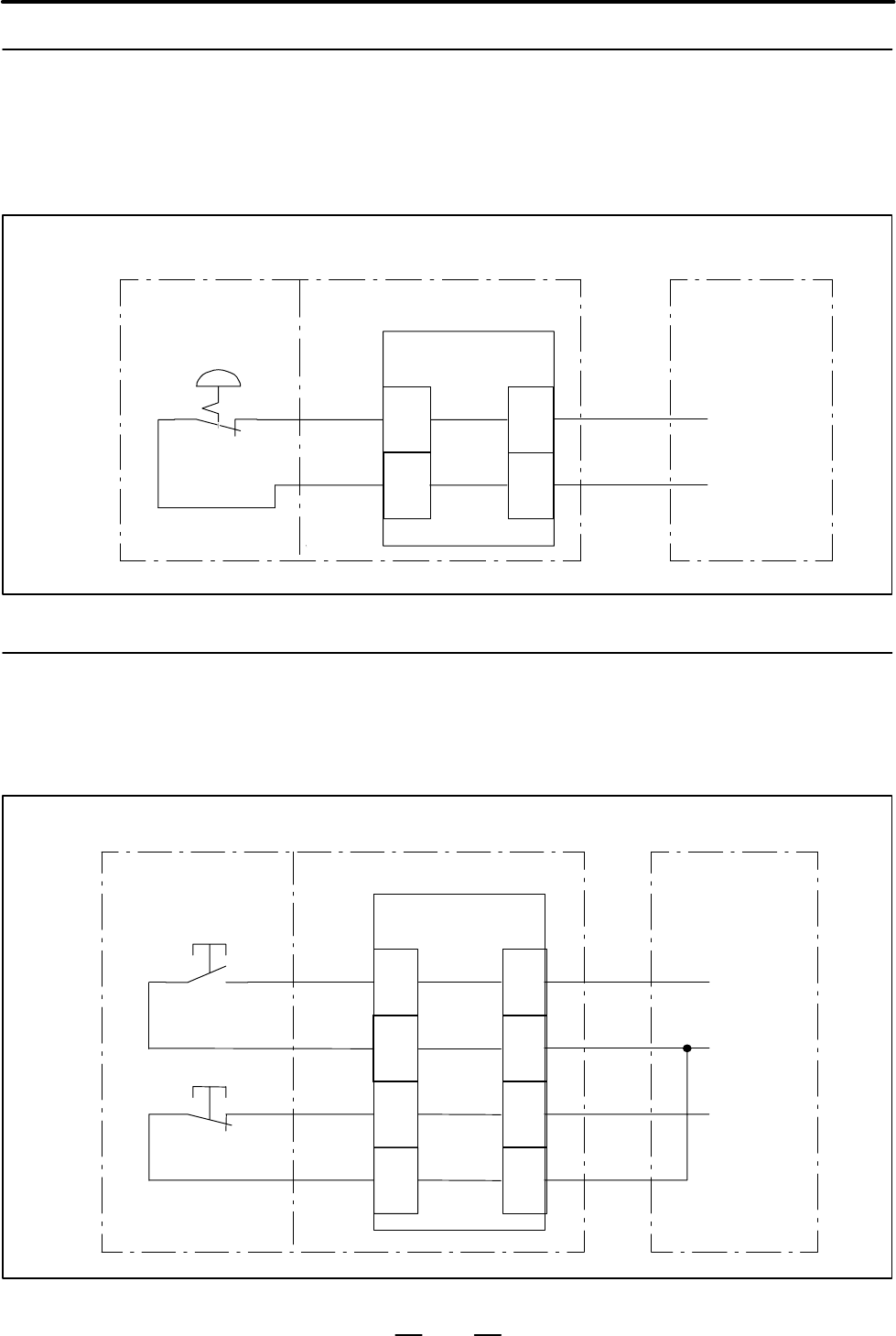

A signal generated by the emergency stop switch on the machine
operator’s panel can be sent to the power magnetic cabinet. (This signal
cannot be sent to the FANUC I/O Link.)
When MTB uses the Sub panel B1, wiring to the emergency stop switch
is contained in the Sub panel A/B/C.
*ESP
ESPCM1
A04
B04
A03
B03
*ESP
ESPC
*ESP
+24V
CM67 CA65
Sub panel B1
Emergency stop
Switch (SB1)
Main panel B
P.C.B.
Machine operator’spanel Power magnetic cabinet
Signal generated by the power ON/OFF control switches on the machine
operator’s panel can be sent to the power magnetic cabinet. (This signal
cannot be sent to the FANUC I/O Link.)
Sub panel B1 is not included Emergency stop button.
Machine operator’s panel Power magnetic cabnet
ON switch
OFF switch
A01
A02
A01
A02
Main panel B
EON
COM
EOFF
P.C.B.
CM67 CA65
B01 B01
B02 B02
EON
COM1
EOFF
COM2
9.4.3.4
Emergency stop signal
connection
9.4.3.5
Power ON/OFF control
signal connection
