Fanuc Panel I New Options Additional Manual Page 13

Additional Manual
EDIT.
SHEET
DRAW. NO.
CUST.
TITLE
10
/
20
DESCRIPTIONDESIG.DATE
FANUC PANEL i New Options
A-
81226E

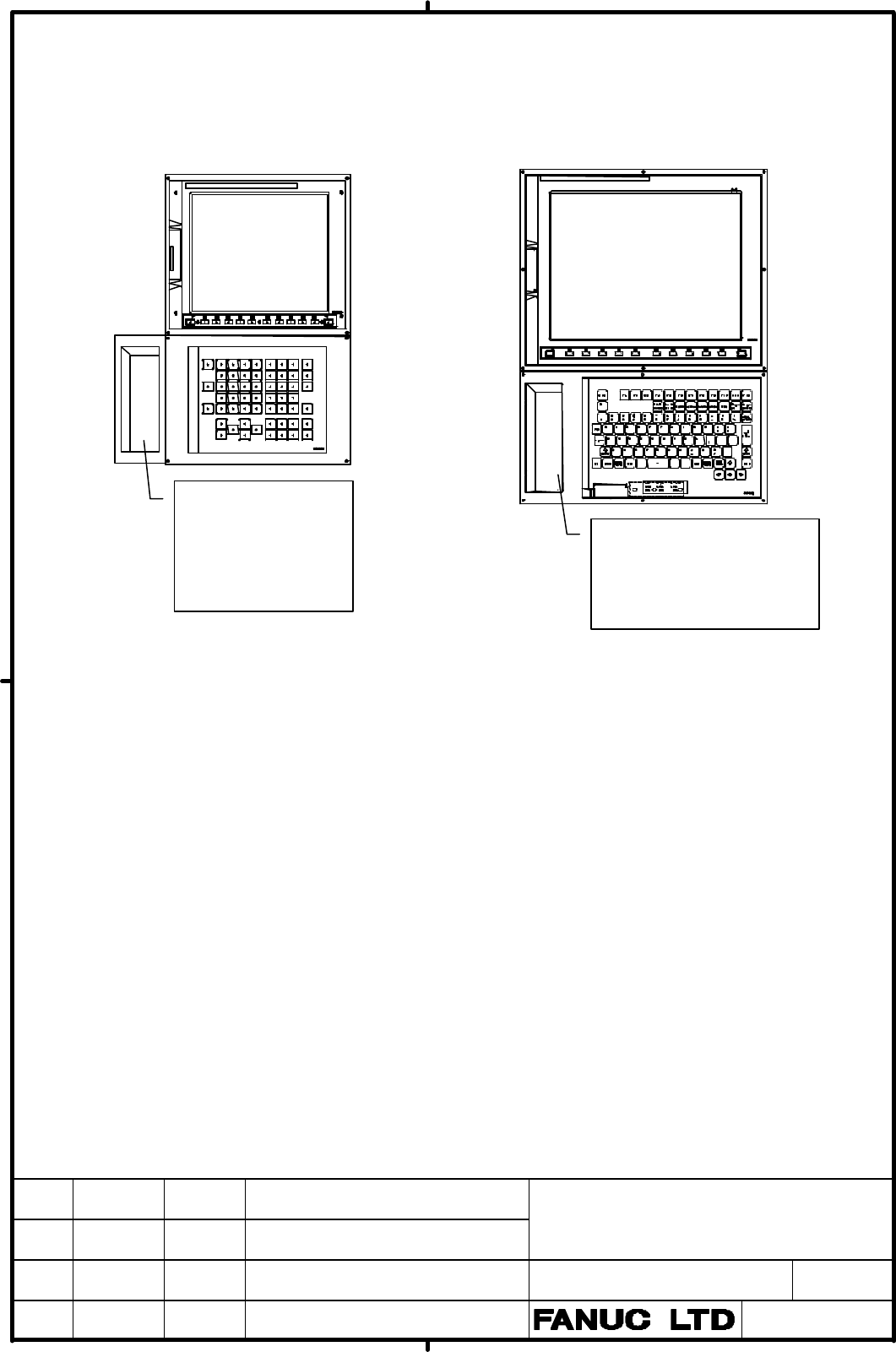

6.3 Construction
Punch panel (stand alone type) and FA Full keyboard with punch panel is as
bellow figure.
6.4 Environmental Requirement
This unit should be mounted to the hermetically sealed cabinet because the
connectors on the rear side of this punch panel are not covered with plates. The
front door of this unit should be closed when the machine tool are operated.
Environmental requirement of this unit is depend on that of PANEL i.
Be sure to connect a grounding for protection of Punch panel with the cabinet in
case of the independent type punch panel, and connect a grounding for protection
as a FA Full keyboard with the cabinet in case of FA Full keyboard with punch
panel.
6.5 Outline
Refer to Appendix 4,5 about outline of this unit.
Punch panel
(stand alone type)
USB x2
Serial port
Parallel port
Keyboard/Mouse
FA Full keyboard with
punch panel (15”LCD type)
USB x2
Serial port
Paralle port
