  2. FS 16i/18i-TA/TB Hobbing Function (for Lathe)

FS 16i/18i-TA/TB Hobbing Function (for Lathe) Additional Manual Page 11

Additional Manual
PAGE
10/21
FANUC Series 16
i
/18
i
–TA/TB
HOBBING FUNCTION
EDT. DATE DESIG. DESCRIPTION
A – 78600E
NO.
TITLE
01 2001.09.17 Newly
Retract function
When the retract signal RTRCT is turned to “1” (the rising edge is
detected) in auto mode or manual mode, the axis set in bit 0 (RTR) of the
parameter No.7730 moves (retracts) by the amount set in the parameter
No.7741.
Upon the completion of retraction, the retract completion signal RTRCTF
is output.
- Feedrate in retract is set to the parameter No.7740. Then the
feedrate override is not effective.
- During the movement in retract, feed hold is not effective.
- In case that retract signal is turned to “1” in auto mode, the
movement of the auto mode is hold and the retract movement is
done.
- The retract completion signal is turned to “0” when any retract axis
is moved.

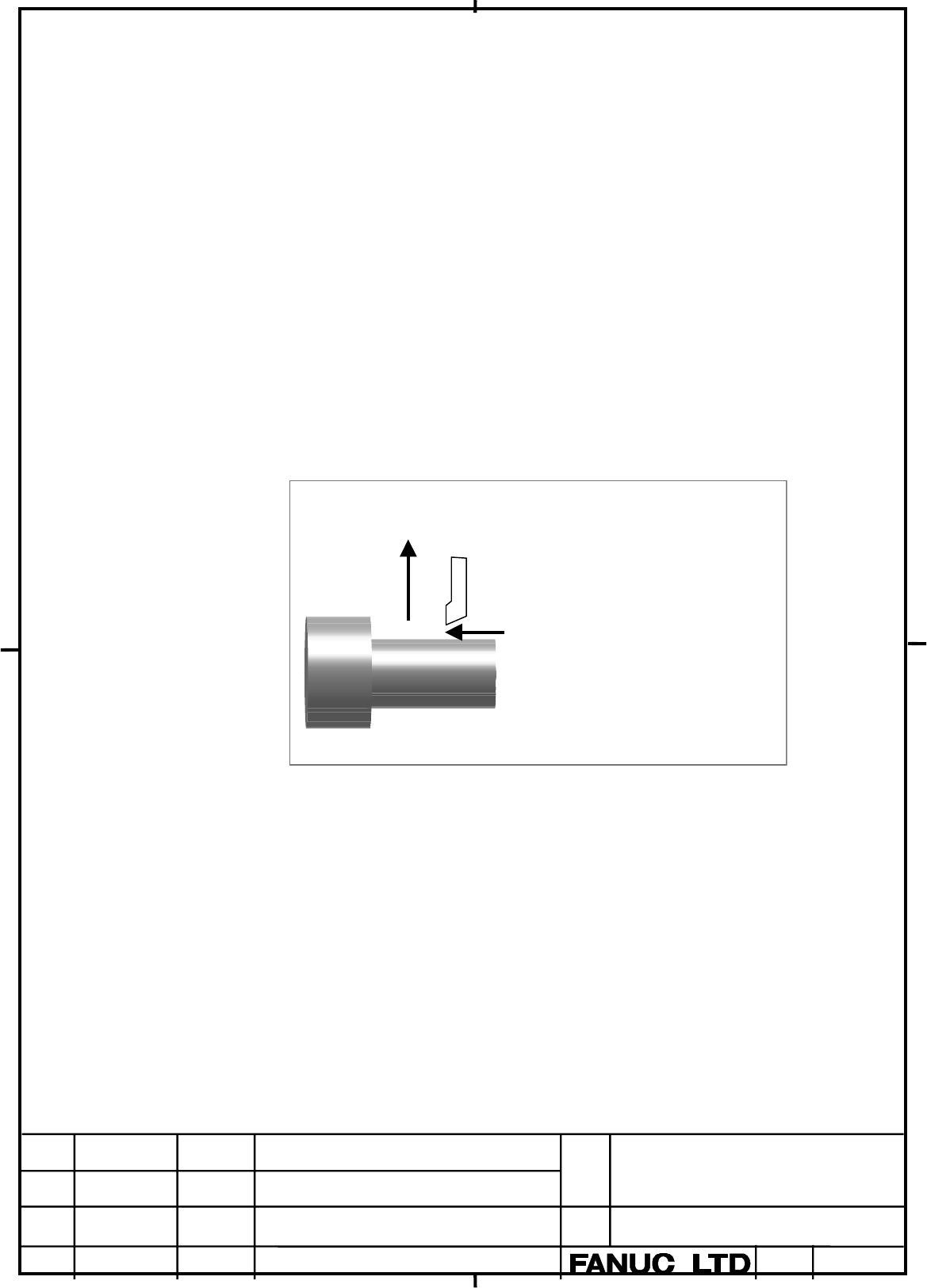

Retract movement
Machining direction : The movement of
the auto mode is
feed fold
Previous page
Next page
