(5) Resolution setting pin “SW3”
It is able to set resolution by SW3
“A” setting : 512 times interpolation
“B” setting : 2048 times interpolation
“B” is set for “SW3” by using shorting pin at shipping.

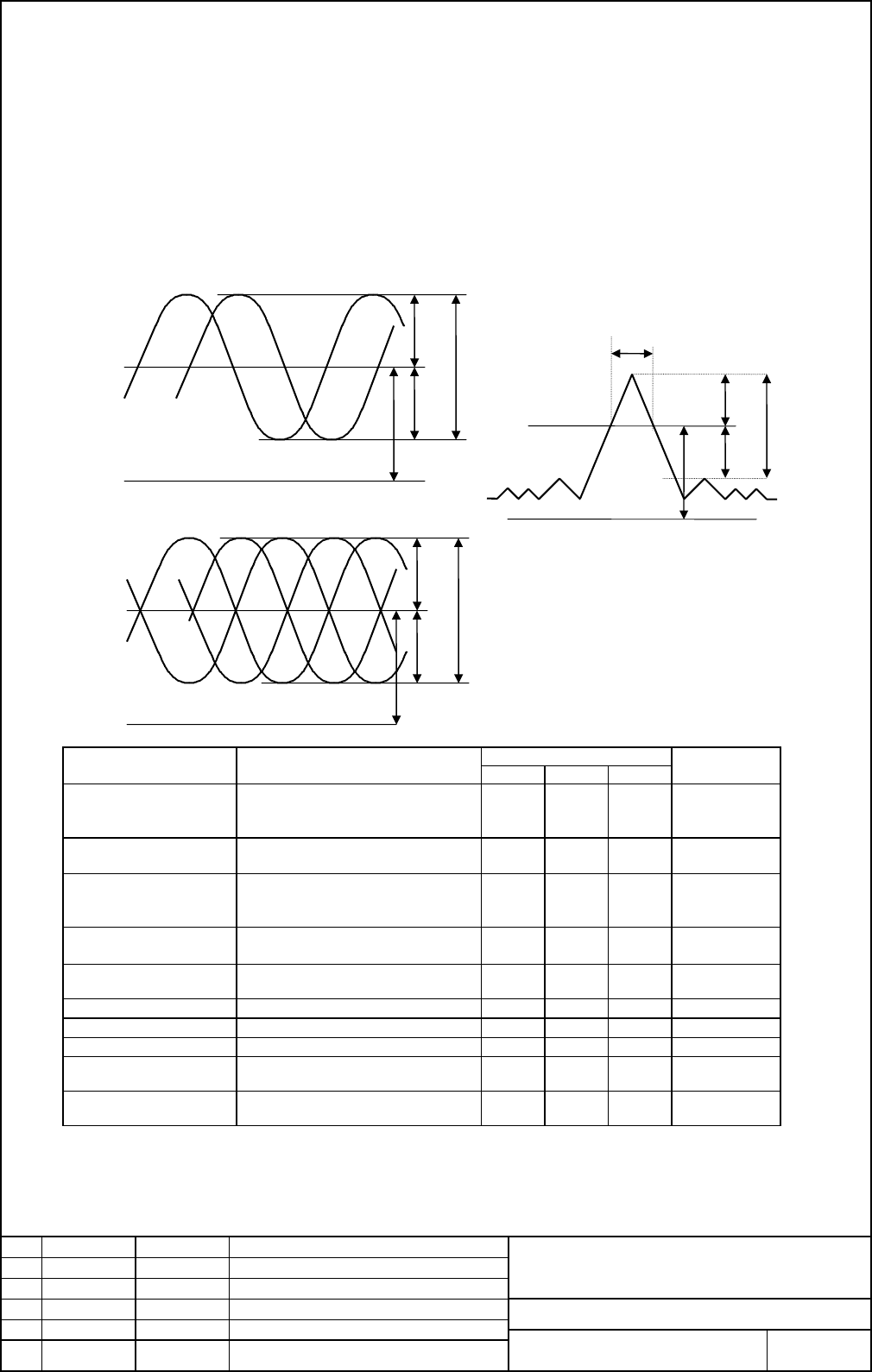

(6) Input specifications and examples of available linear encoders
(6)-1 Input specifications
A/B(type Ⅰ)
A/B（typeⅡ）
Specification Item Symbol
Min. Typ. Max.
Unit
Amplitude
(A/B phase）
typeⅠ a of A,B phase
typeⅡ b of A phase+b of XA phase,
b of B phase+b of XB phase
0.6 1.0 1.5 V
P-P
Amplitude
(Z phase)
c pf Z pahse + c of XZ phaseZ
（In case of analog signals）
0.2 0.4
－
V
Center Level
(DC Level)
typeⅠ V
OA,
V
XA
,V
OB,
V
XB
typeⅡ V
OA,
V
OXA
,V
OB,
V
OXB
V
OZ,
V
OXZ
2.0
2.5
3.0
V
Offset Voltage
(A/B phase)
typeⅠ V
OA
－V
XA
, V
OB
－V
XB
typeⅡ V
OA
－V
OXA
, V
OB
－V
OXB
-0.1 0 +0.1 V
Offset Voltage
(Z phase)
V
OZ
－V
OXZ
-0.05 0 +0.05 V
Pulse width of Z T
Z
600
－ －
nSec
Length of Z L
Z
1/4
－ －
pitch of A(or B)
Input Impedance 100 120 140
Ω
Input Frequency
(Standard Spec.)
－ －
200 kHz
Input Frequency
(High-Speed Spec.) (Note)
－ －
750 kHz
* The position accuracy depends on the quality of the signal from the encoder.
(Note) Refer to Section 10. for input frequency of 750kHz.
a
V
A
V
XA,
V
XB
V
B
V
OA,
V
OB
a/2
a/2
0V
V
XB
V
B
V
OA,
V
OXA
V
OB,
V
OXB
b/2
b/2
b
V
A
V
XA
0V
c/2
c/2
Usable
component
c
0V
V
OZ
T
Z,
L
Z
Ｚ
