1. OUTLINE
By this function, multi-spindle control TYPE-C is available.
Multi-spindle control TYPE-C has following feature.
When the spindle stop state is released by the signal *SSTPx=0->1, spindle speed is restored.
For the other features, refer to “2. DESCRIPTION.”
Multi-spindle control TYPE-C needs multi-spindle control option.
2. DESCRIPTION

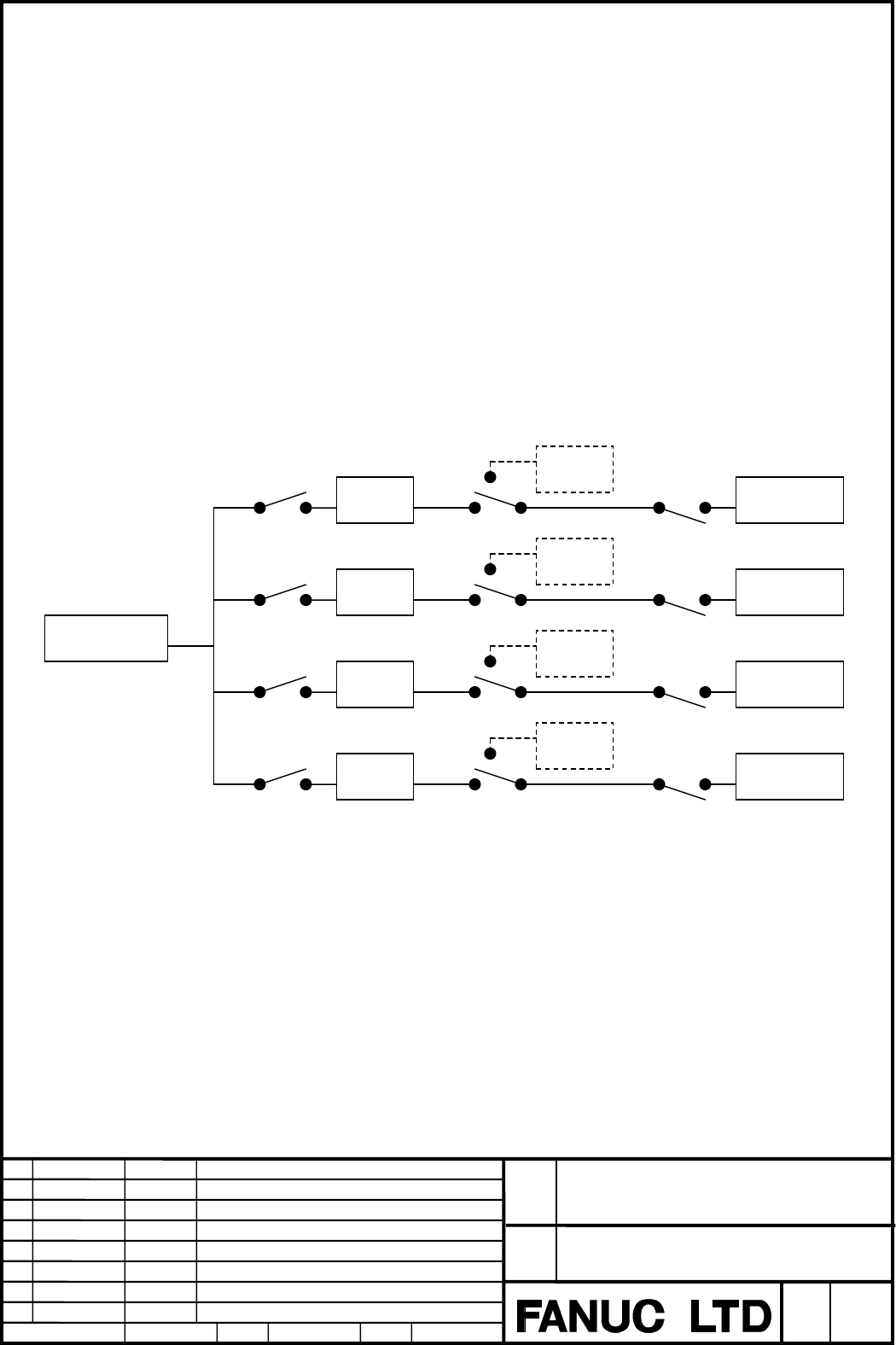

The concept of multi-spindle control TYPE-C outlined below.
*SSTP4
SWS4
SIND4
Hold 4
*SSTP3
SWS3
SIND3
Hold 3
*SSTP2
SWS2
SIND2
Hold 2
*SSTP1
SWS1
SIND
Hold 1
4th spindle
3rd spindle
2nd spindle
1st spindle
S command
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
/ 5
Date
Desi
g
n
Descri
p
tion
Date
FANUC Series 16i/18i/21i-MB/TB
MULTI-SPINDLE CONTROL TYPE-C
A-79114E
03.04.04
M.Ito
