PROGRAMMING
4. INTERPOLATION FUNCTIONS
B–62754EN/01
44
Tools can move along a line.
F_: Speed of tool feed (Feedrate)
_: For an absolute command, the coordinates of an end
point , and for an incremental command, the distance
the tool moves.
G01 _F_;
A tools move along a line to the specified position at the feedrate
specified in F.
The feedrate specified in F is effective until a new value is specified. It
need not be specified for each block.
The feedrate commanded by the F code is measured along the tool path.
If the F code is not commanded, the feedrate is regarded as zero.
For feed–per–minute mode under 2–axis simultaneous control, the
feedrate for a movement along each axis as follows :
F +
L
f
F
+
L
f
Feed rate of α axis direction :
L +
2
)
2
)
2
)
2
Ǹ
G01ααββ
Ff ;
Feed rate of β axis direction :

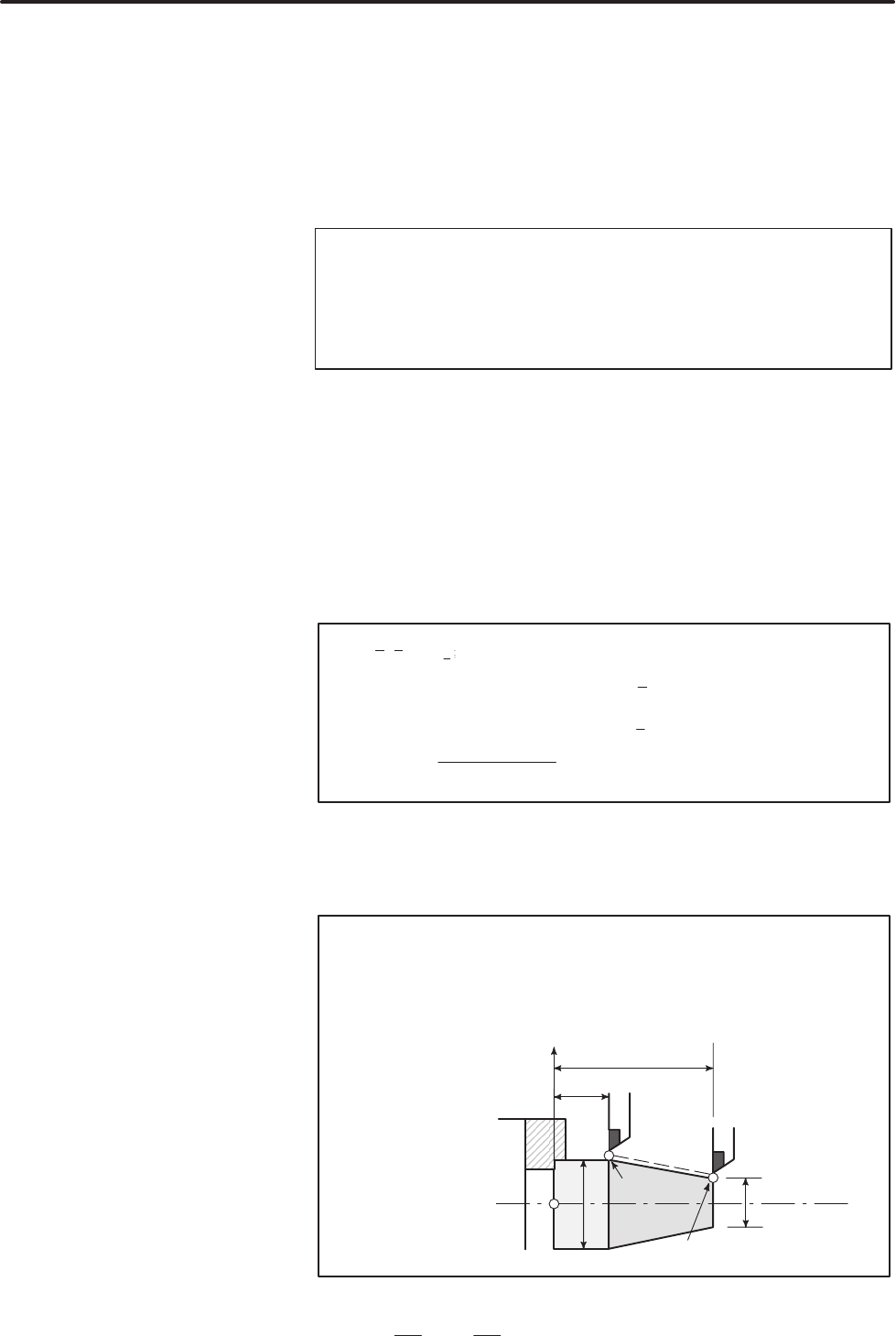

< Diameter programming >
G01X40.0Z20.1F20 ; (Absolute command)
or
G01U20.0W–25.9F20 ; (Incremental command)
Z
20.1
46.0
φ20.0
X
φ40.0
End point
Start point
4.2
LINEAR
INTERPOLATION
(G01)
Format
Explanations
Examples
D Linear interpolation
