  2. FANUC Series16/160i-LB,LPB Pulse Power Feedback by Actual Power Presumption Method, Specifications

FANUC Series16/160i-LB,LPB Pulse Power Feedback by Actual Power Presumption Method, Specifications Additional Manual Page 11

Additional Manual
A-78991E
Edit
Apprv.
Desig.
Sheet
Title
Draw
No.
Date
Design
Descri
p
tion
Date
FANUC Series 16/160i –LB,LPB
Pulse power feedback by actual power
presumption method
2002.11.20
10/14
Sheet Sheet
M.Sato K.Suzuki
03 2003.05.27 M.Sato
Section 3,4,6 has been changed, Section 9 has been added.
04 2003.07.10 M.Sato Section 4 has been added.
05 2003.08.06 M.Sato Section 5,6 has been changed.
06 2004.01.27 M.Sato Section 1,6 has been changed.
07 2004.10.21 M.Sato Section 4,8 has been changed.
08 2005.10.20 M.Sato Section 8 has been changed.
09 2005.11.08 M.Sato Section 5 has been changed.
7 Bell shape type filter applied to power feedback gain
The response delay of the power sensor is compensated by filtering a presumption power.
However, the laser power is changed by the influence of the power feedback at the switch of
the command power in case that the compensation is not enough.
The beam might stop at the change of the command power when the command power
decreases.
To suppress the problem, the power feedback gain can be filtered with using the bell shape
type filter.
The power feedback gain is set 0 at changing command power and increases like bell shape
afterwards.
The feedback gain reaches the value set in parameter No.15208 when the time set in
parameter as the time constant of the filter passes.
The bell type filter is set by setting two time constants of straight line part T1 (PRM
No.29001) and rounding part T2 (PRM No.29002).

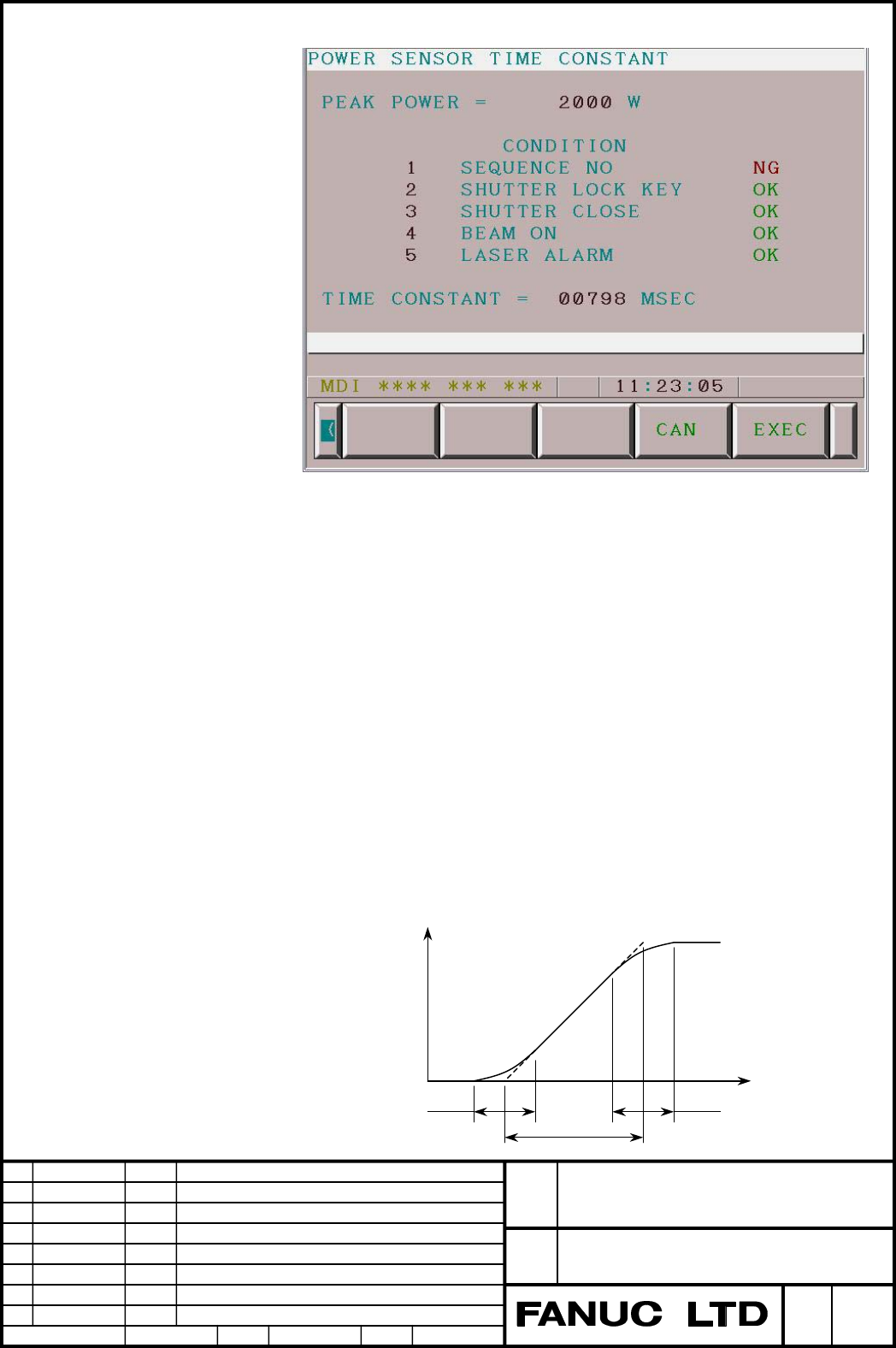

The time constant measurement screen
T1
T2
t
Gain
T2
Previous page
Next page
