SERIES 16/18/160/180 i PA Descriptions Page 100

Descriptions
B–63122EN/01
13. FUNCTION TO SIMPLIFY
PROGRAMMING
NC FUNCTION
91
By specifying a restart point by a P–code in a block containing G73/G74
(commands for punching multiple products), it is possible to restart
punching multiple products at the specified restart point.
G73 (G74) W wn
Q q P p ;
% ! $!
 "#!# ! "#
"#!# #
  "" !"#!# # %# 
" $ " &  ! 
 ! ## $!  %!"
A
H
B
G
C
F
D
E
Y
X
Q3 ³
Q1 ³² Q2
² Q4
G98X_Y_I_J_P3K1 ;
U90 ;
:
V90 ;
G73W90Q_P5 ;

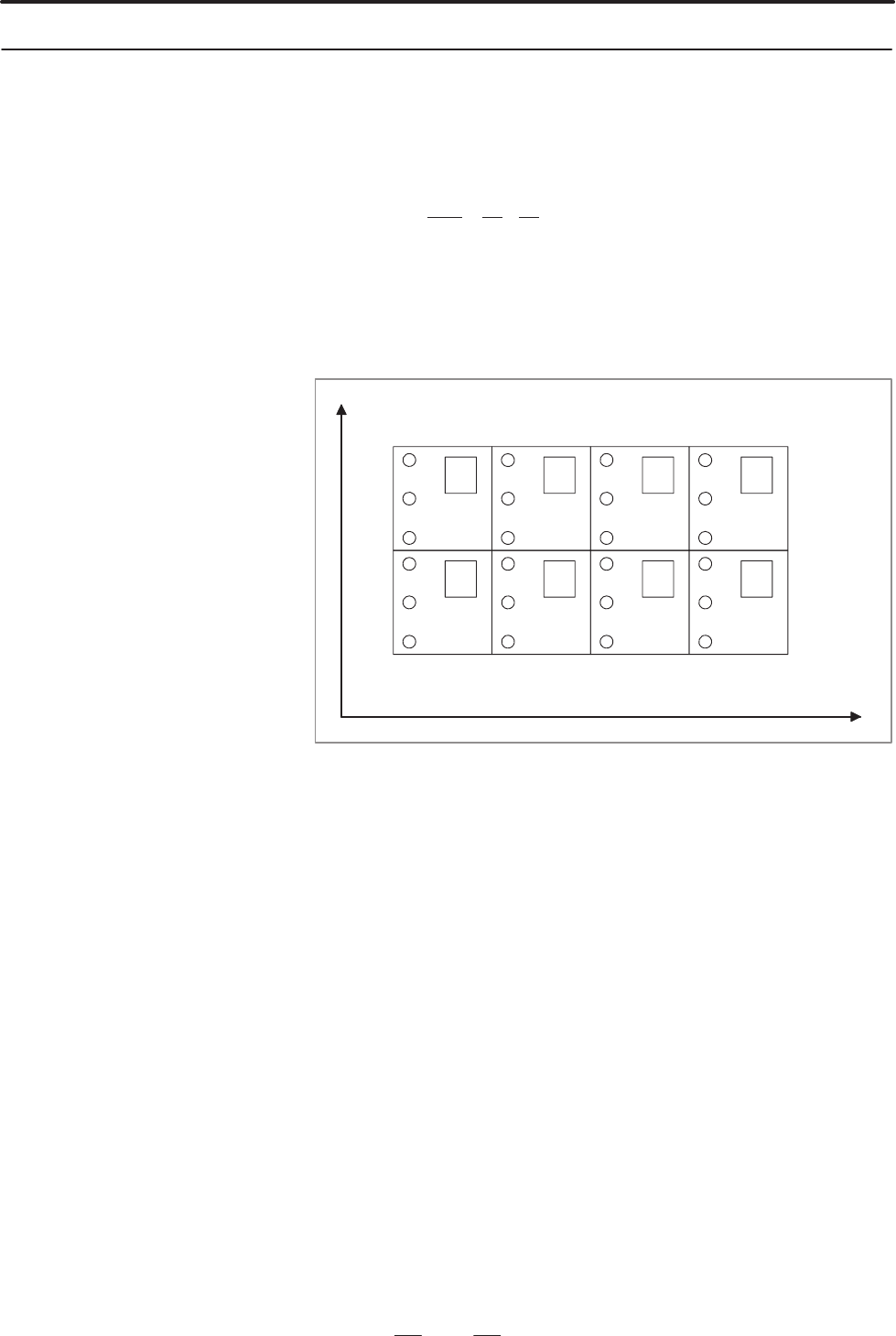

The above program performs machining as follows:
(1)Partial machining
(a) Q1 command : Sequence of E→F→G→H
(b)Q2 command : Sequence of H→G→F→E
(c) Q3 command : Sequence of D→C→B
(d)Q4 command : Sequence of B→C→D
(2)Total machining
(a) Q1 command : Sequence of E→F→G→H
(b)Q2 command : Sequence of H→G→F→E
(c) Q3 command : Sequence of D→C→B→A
(d)Q4 command : Sequence of A→B→C→D
13.6.4
Command to Restart
Punching Multiple
Products
Command format
Examples
Previous page
Next page
