Laser C1000/C2000/C4000/C5000/C6000-Model E Europe Operators manual Page 58

Operators manual
3.INSTALLATION B-70314EN/02
- 50 -
3.2 TRANSPORTATION
3.2.1 Lifting Laser Oscillator
In lifting the laser oscillator, be sure to use the four eyebolts screwed
into the top surface of the cabinet as shown in the figure. Never lift
using only the two bolts. The weight is shown following tables. The
permissible impact value of the oscillator is 2G. When the impact
which exceeds the permissible impact value is given, the resonator
will warp and the shape of the beam mode worsens.

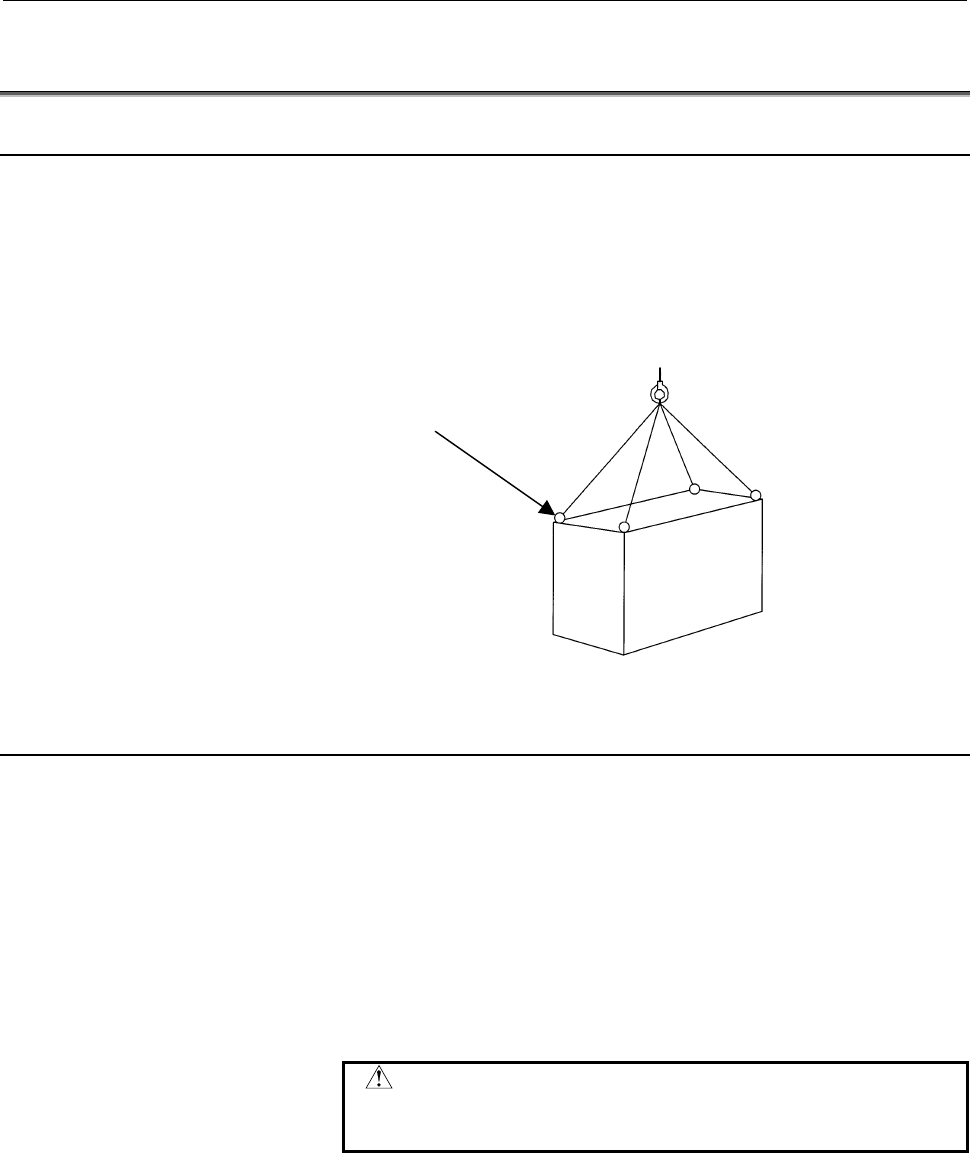

Fig.3.2.1 Method of lifting
3.2.2 Packing
(1) Clamp
When shipped from FANUC, the two components of the laser
listed below are in the clamped position. Because this is for
shipment only, remove the clamp during the installation. Be sure
to use the clamp on optical resonator and mechanical shutter, when
the machine is shipped again.
(2) Water
Be sure to drain water in the oscillator at shipment.
Refer to the maintenance manual for draining.
CAUTION
If water remains in the oscillator, internal water
pipes may be damaged in cold climates.
E
y
e Bolts
