  2. FANUC Series30i/31i/32i-MODEL A, Simultaneous Displaying Axis Number Expansion Function

FANUC Series30i/31i/32i-MODEL A, Simultaneous Displaying Axis Number Expansion Function Additional Manual Page 9

Additional Manual
FD
App
r
y
Desi
g
n
Page
Title
9
/
1
3
Data
Desi
g
n Description
Data
FANUC Series30i /31i /32i -MODEL A
Simultaneous displaying axis number expansion
function
AD-02002613E
05.04.08
Tanaka
Draw
No.
Change of display coordinates
When the max number of simultaneous displaying axes is 20 (Parameter
No.11305=2), Coordinates displayed in the position display of each screen at the
same time are two pairs. The combination of two coordinates is decided by setting
the order of displaying four coordinates systems displayed in overall position
display screen (parameter No.11307).
At power-on, the first combination of coordinate is displayed. You can change it
the second one by pushing selection chapter key to selection afte key.
When you do it again, the combination of coordinates is changed to the first one.
（Example）The workpiece coordinate system setting screen of 10.4 inch. The max
number of simultaneous displaying axes is 20.

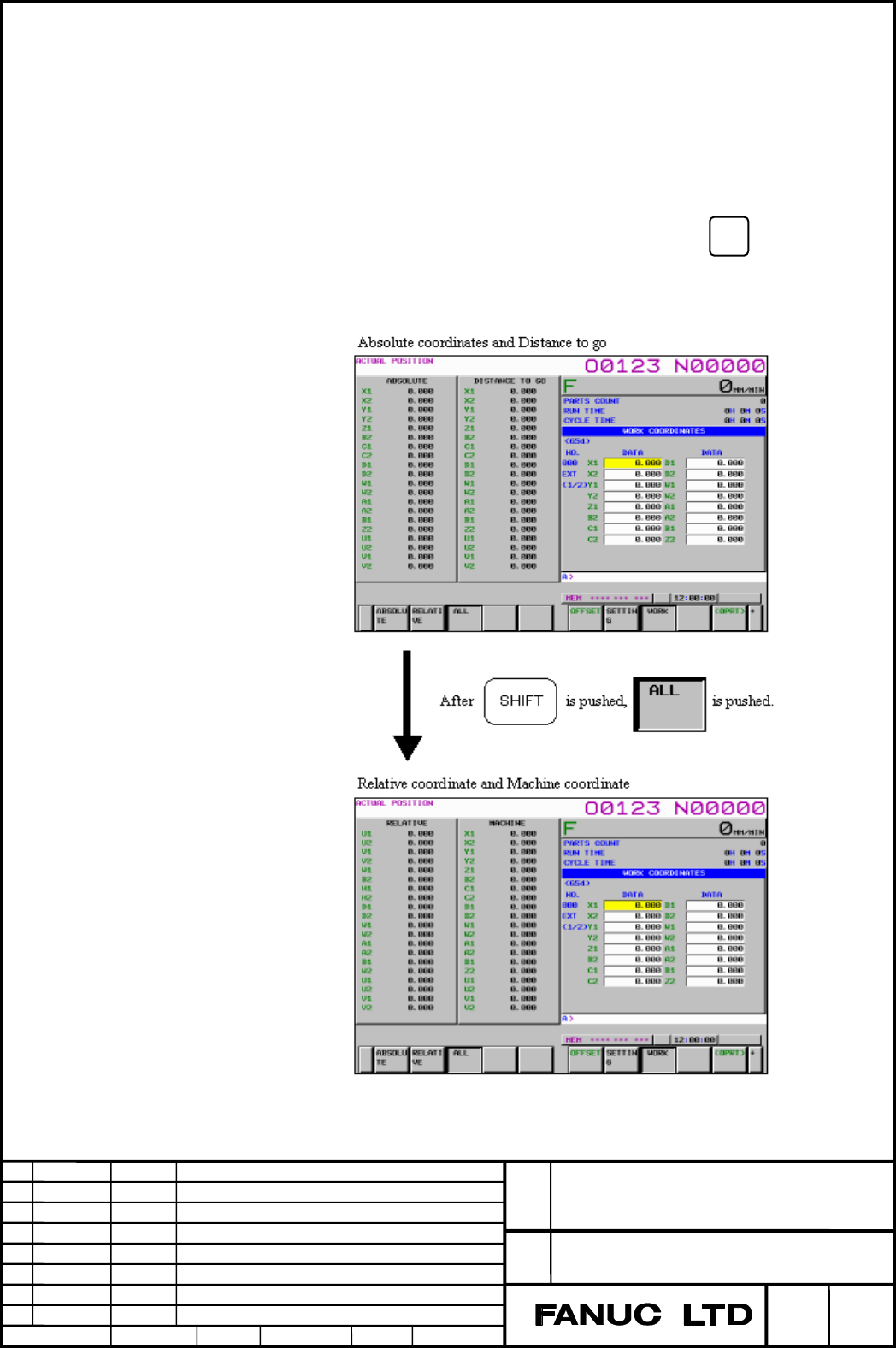

Fig. 1.1 (k) Display change example in 10.4 inch.
SHIFT
Previous page
Next page
