FANUC Series 16i/18i/21i Additional Manual Page 9

Additional Manual
EDIT.
DATE DESIG.
DESCRIPTION
TITLE
DRAW.NO
FANUC Series 16i/18i/21i
Connection of the spindles
A-61206E
SHEET
9/11
FANUC LTD

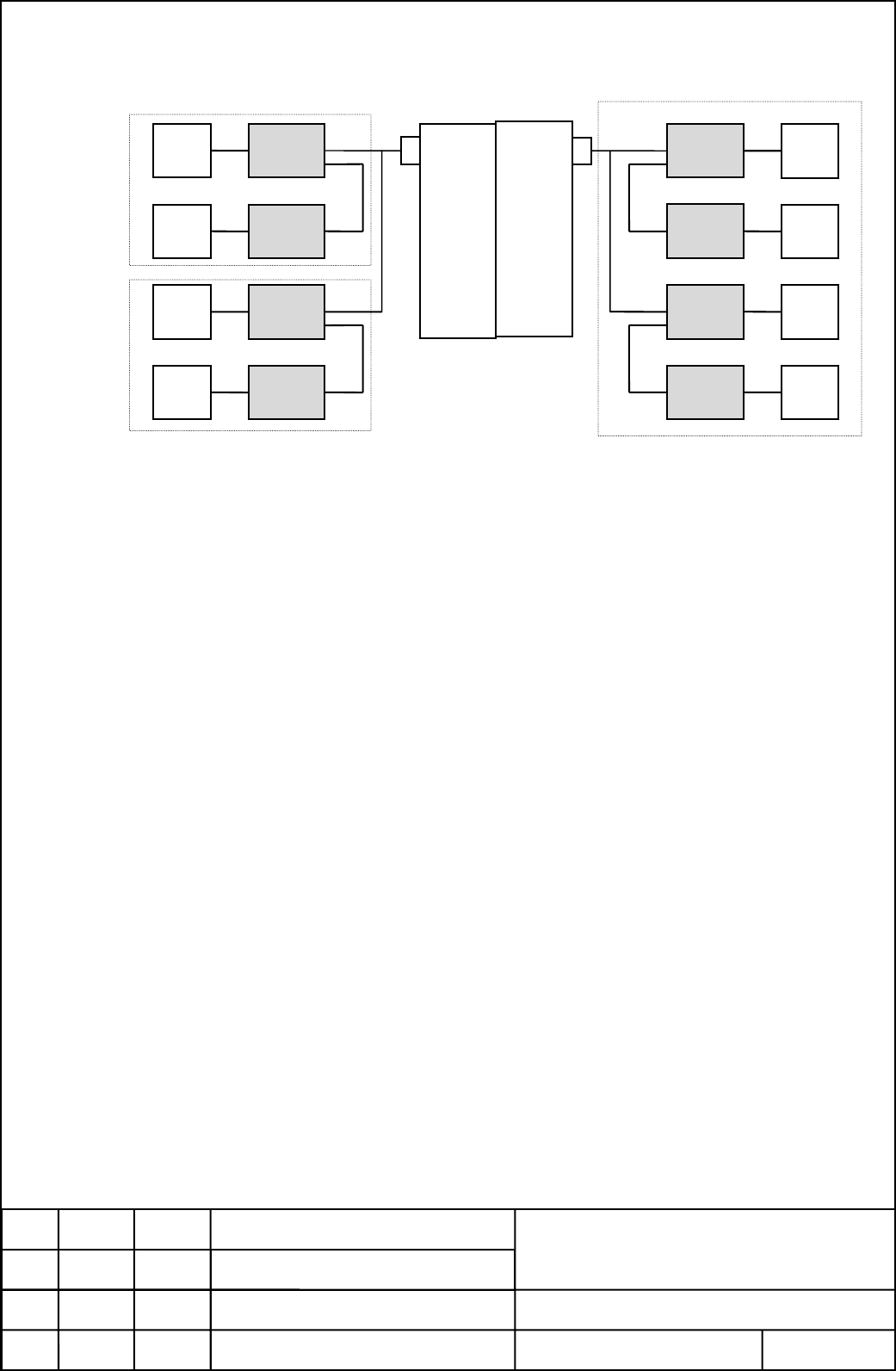

4. 2-CPU 3-PATH CONTROL (FS16i)
Note1 4 serial spindles can be connected in path1.
2 serial spindles can be connected in path2.
2 serial spindles can be connected in path3.
Note2 To connect serial spindles of path3, Serial Spindle
Distribution(A13B-0180-B001) is necessary.
Note3 To connect 3rd or 4th serial spindle of path1, Serial Spindle Distribution
(A13B-0180-B001) is necessary.
Note4 To use 3rd or 4th serial spindle in path1, “3rd/4th serial spindle output
option (FS16i)” is necessary.
Note5 When analog spindle is connected, spindle connection of path1 is same as
1-path control, and spindle connection of path2 and path3 is same as
1-cpu 2-path control.
Serial
JA41
JA41
SP1#2 SP1#1
SP4#1
SP2#3
SP3#1 SP1#3
PC
PC
PC
PC
PC PC
MOTHER
BOARD
SUB CPU
BOARD
Serial
SP2#1
SP2#2 PC PC
Spindle of
path2
Spindle of
path3
Spindle of
path1
