FANUC Series 16i/18i/21i One Touch Macro call function Additional Manual Page 4

Additional Manual
3/11
A- 77823E
DRAW.No.
FANUC Series 16i /18i /21i
Specifications of One Touch Macro call
Title
Timing chart,etc. is changed
Newly registration
DESCRIPTION
A.Fukumoto
DESIGNE
29.Jul.1999
02.Jul.1999
DATE
02
01
EDIT.
E.Gennma
• End of macro program
(6) Please instruct M02 or M30 at the end of the macro program.
Moreover, please input external reset signal (ERS) or reset&rewind signal (RRW)
with M02 or M30 on the PMC side.
The program which had been selected before the macro is executed is automatically
selected by reset. The mode change request signal (MCRQ) and mode notification
signal are output at the same time. At this time, the mode when macro call start
signal (MCSTx) is input is notified as the mode notification signal.
• Return of mode
(7) Please change the mode on the PMC side based on the signal output in the step of
above (6).
(8) Please set “1” in Mode change completion signal (MCFIN) on the PMC side when the
mode change is completed. The P/S5306 alarm is not checked at this time.
The following Fig.1 shows the above-mentioned sequence.

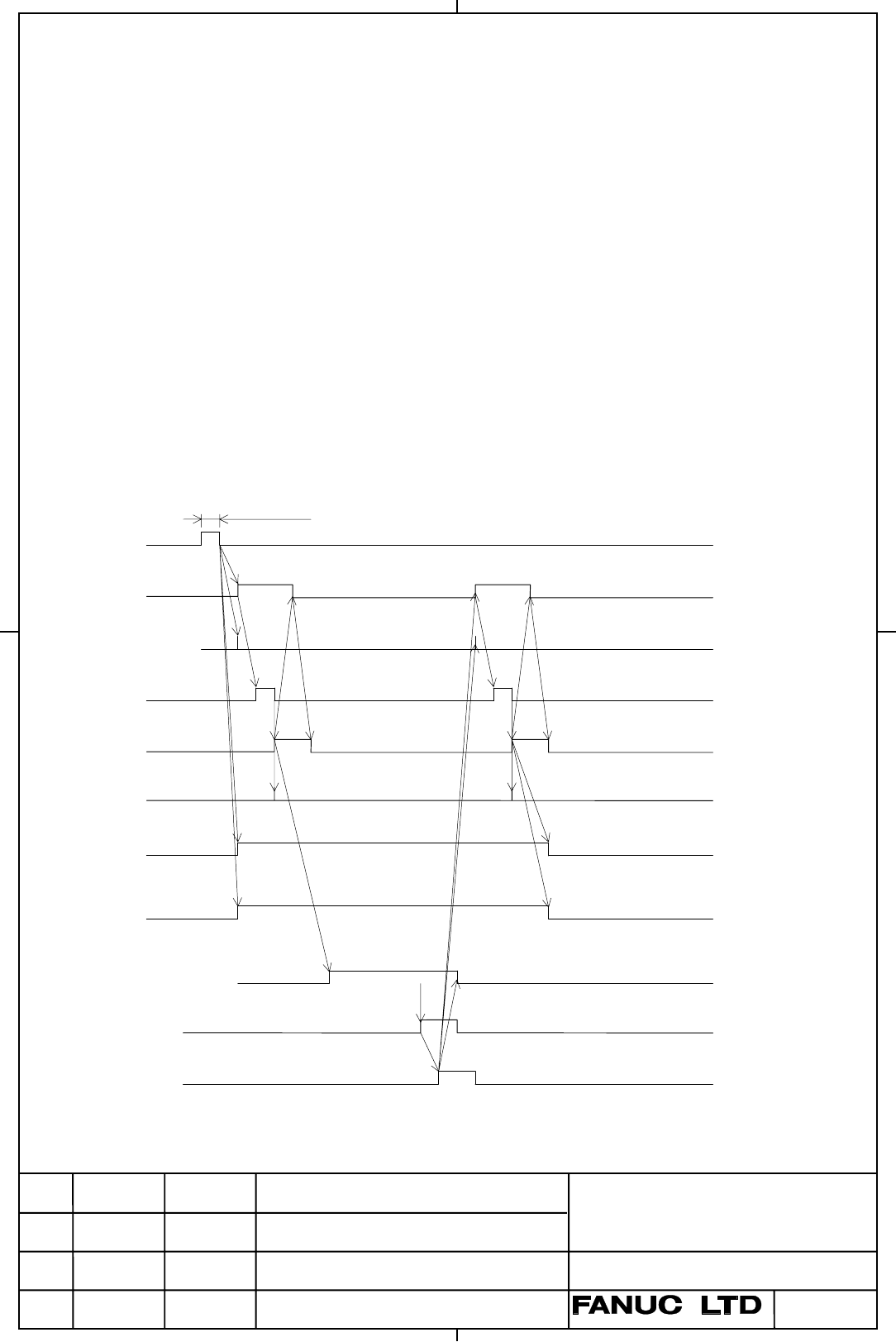

Fig.1 Timing chart
02
Mode notification
signal(CNC→PMC)
MEM
before macro execution
Mode
indefinite
MEM
MCEXE
(CNC→PMC)
Mode Change
process(PMC)
MCFIN
(PMC→CNC)
MCRQ
(CNC→PMC)
MCEXx
(CNC→PMC)
Program Execution
(CNC)
M30 or M02
(CNC→PMC)
ERS or RRW
(PMC→CNC)
MCST
(PMC→CNC)
Least 32ms
02
02
02
