Changing of the USA Specification Main Breaker for FANUC LASER C Series Additional Manual Page 4
Additional Manual
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
004/4
DESCRIPTIONDESIG.DATE
01 05.07.20
Koba
y
ashi
N
ewl
y
Changing of the USA specification
main breaker for FANUC LASER C series
A-81053E-112
4. Application
MODEL Application
C1000-E
C2000-E
C4000-E
C5000-E
C6000-E
Applied from the manufacturing in September,2005

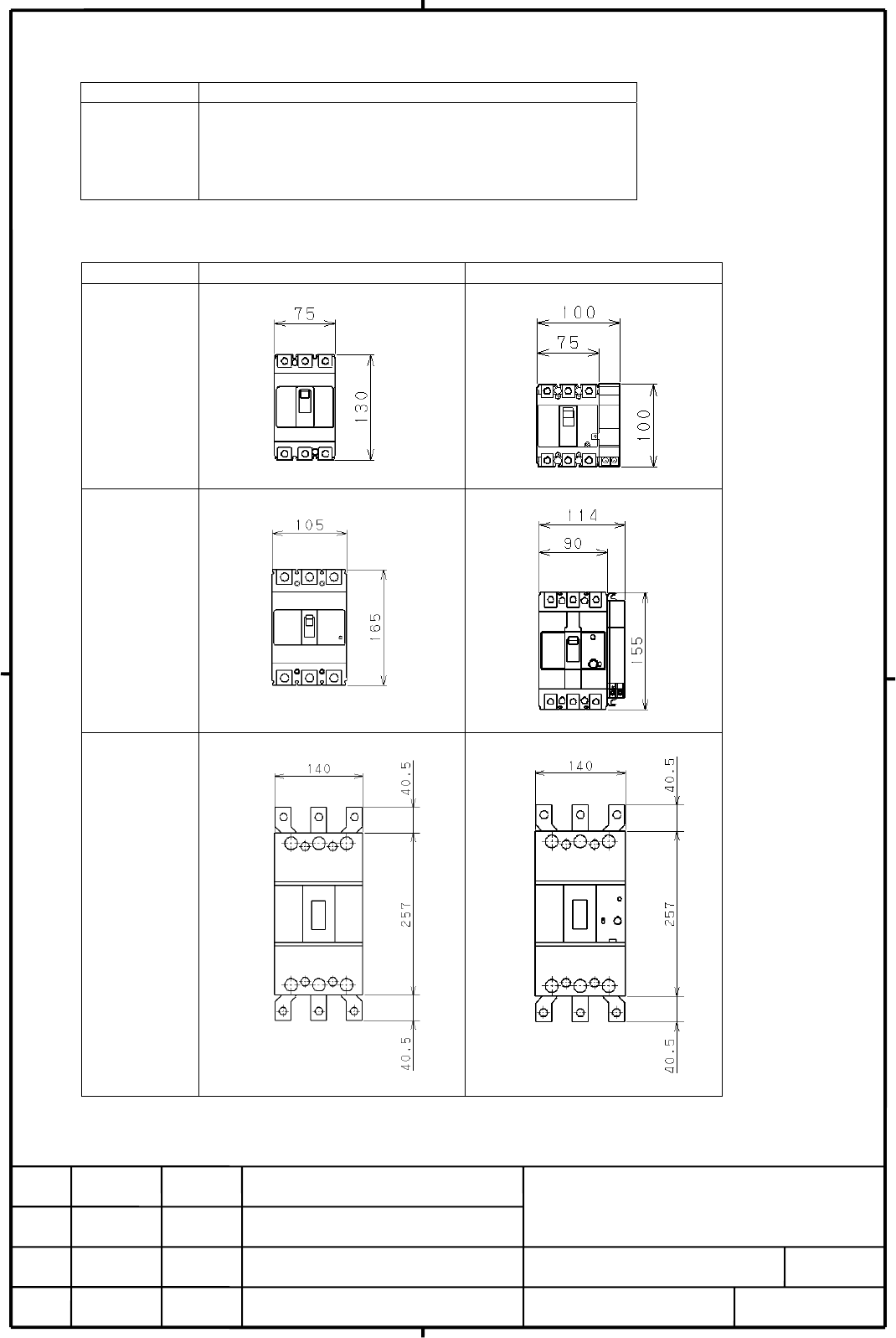

5. Comparison of sizes of old and new breaker table
OLD NEW
C1000-E
C2000-E
C4000-E
C5000-E
C6000-E
Contents Summary of Changing of the USA Specification Main Breaker for FANUC LASER C Series Additional Manual
- Page 1Changing of the USA specification main breaker for FANUC LASER C series 1. Outline To improve the safety of the laser oscillator by the earth fault protection, The USA specification main breaker of FANUC LASER C series is changed to the earth-leakage breaker. The cable connection terminals of the al
- Page 2(3) C4000-E：Rated current 225A, Sensed current 30mA Rated current is changed from 200A to 225A. ・Type : SG203CUL/225-30MA(made by Fuji Electric Co., Ltd.) ・FANUC purchase spec. ; A60L-0001-0427#E225BJB1 ・Recommended solderless terminal Cable size Type Name of recommended solderless terminal／Maker 10
- Page 33-2. Changing of cable connection terminal Please connect cable to use the recommended solderless terminal for each breaker, because it changes the specification from a past Block Terminal to the Screw Terminal. ・Cable connection method for Screw Terminal（new specification） Cable Solderless Terminal
- Page 44. Application MODEL Application C1000-E C2000-E Applied from the manufacturing in September,2005 C4000-E C5000-E C6000-E 5. Comparison of sizes of old and new breaker table OLD NEW C1000-E C2000-E C4000-E C5000-E C6000-E TITLE Changing of the USA specification main breaker for FANUC LASER C series
