FANUC Series 16i/18i-MA Electronic Gear Box 2 Pair Additional Manual Page 4

Additional Manual
Edit.
4/26
Date Signature Change
FS16i/18i-MA
Electronic Gear Box 2 Pair Specifications
1999/03/26
A-63501E
H.Shiobara
02
1999/05/17
Pa
g
e 5 & 11 were corrected. E.Genma
E.Genma
K.Endo
03
1999/1029
Pa
g
e 8 was corrected

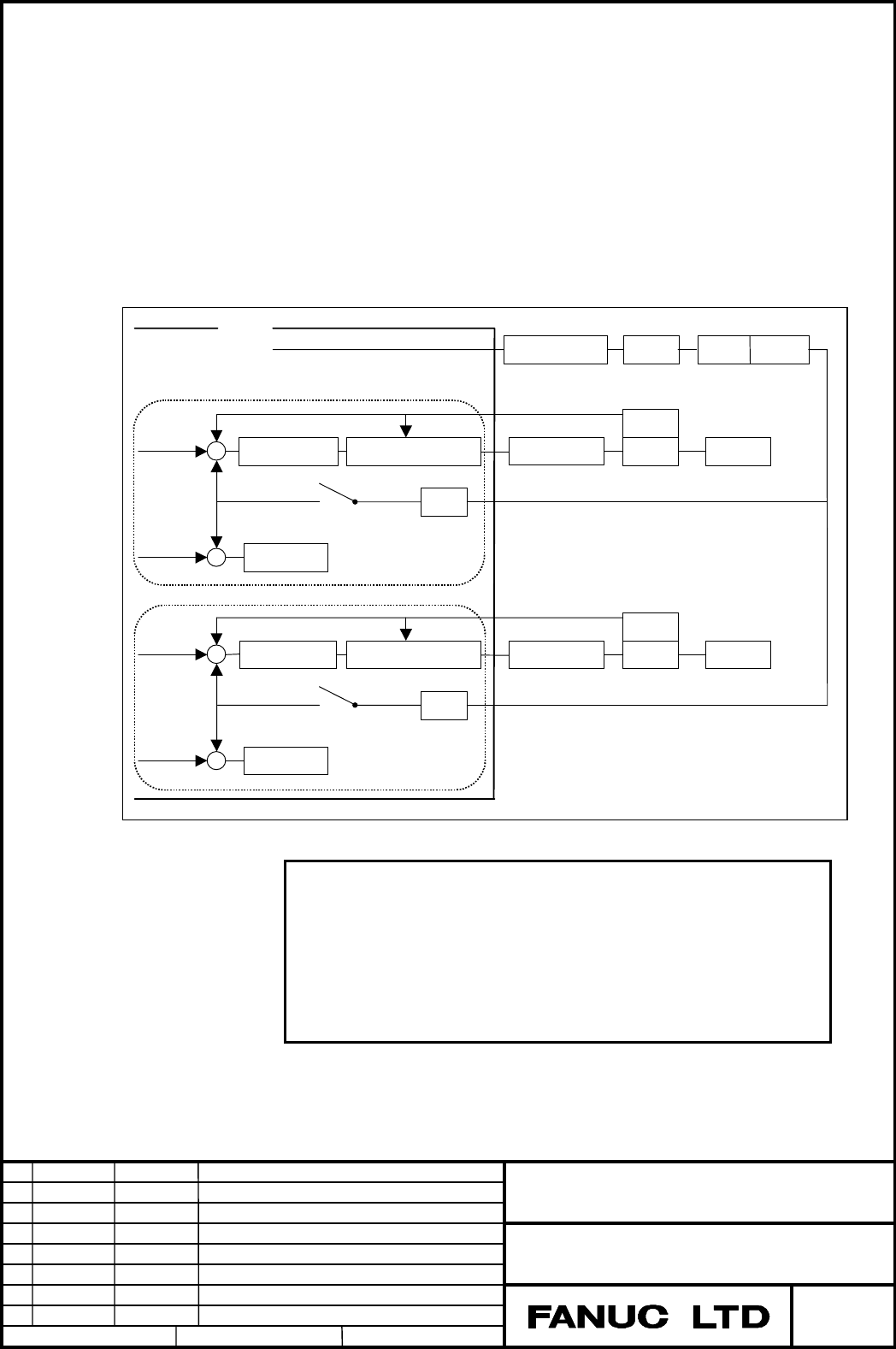

2.1.1. Configuration examples of controlled axes
Spindle : EGB master axis serving as a tool axis
First axis : X
Second axis : Y
Third axis : C axis (EGB slave axis serving as a workpiece axis)
Fourth axis : C axis (EGB dummy axis, which cannot be used as a usual controlled
axis)
Fifth axis : V axis (EGB slave axis serving as a dressing axis)
Sixth axis : V axis (EGB dummy axis, which cannot be used as a usual controlled
axis)
NOTE
A sampling period of 1 ms is applied when feedback
pulses are read from the master axis; the
synchronization pulses for a slave axis are
calculated according to synchronization coefficient
K; and the pulses are specified for position control
of the slave axis.
{
|
CNC
Motor Spindle Detector
Spindle (master axis)
First axis X (omitted)
Second axis Y (omitted)
Tool axis
Third axis
Slave axis
Fourth axis
Dummy axis
Follow-u
p
EGB
C
|
{
{
|
{
K
1
F
Synchronization factor
K
2
F
Synchronization factor
Fifth axis
Slave axis
Sixth axis
Dummy axis
Follow-u
p
EGB
V
|
{
{
Dressing axis
K
1
Error counter
Synchronization switch
Motor
Detector
Servo amplifier
K
2
Error counter
Synchronization switch
Motor
Detector
V-axis
Workpiece axis
C-axis
Spindle amplifier
Position control Speed/current control
Position control Speed/current control
Servo amplifier
